Makita LS1017L Technical Information

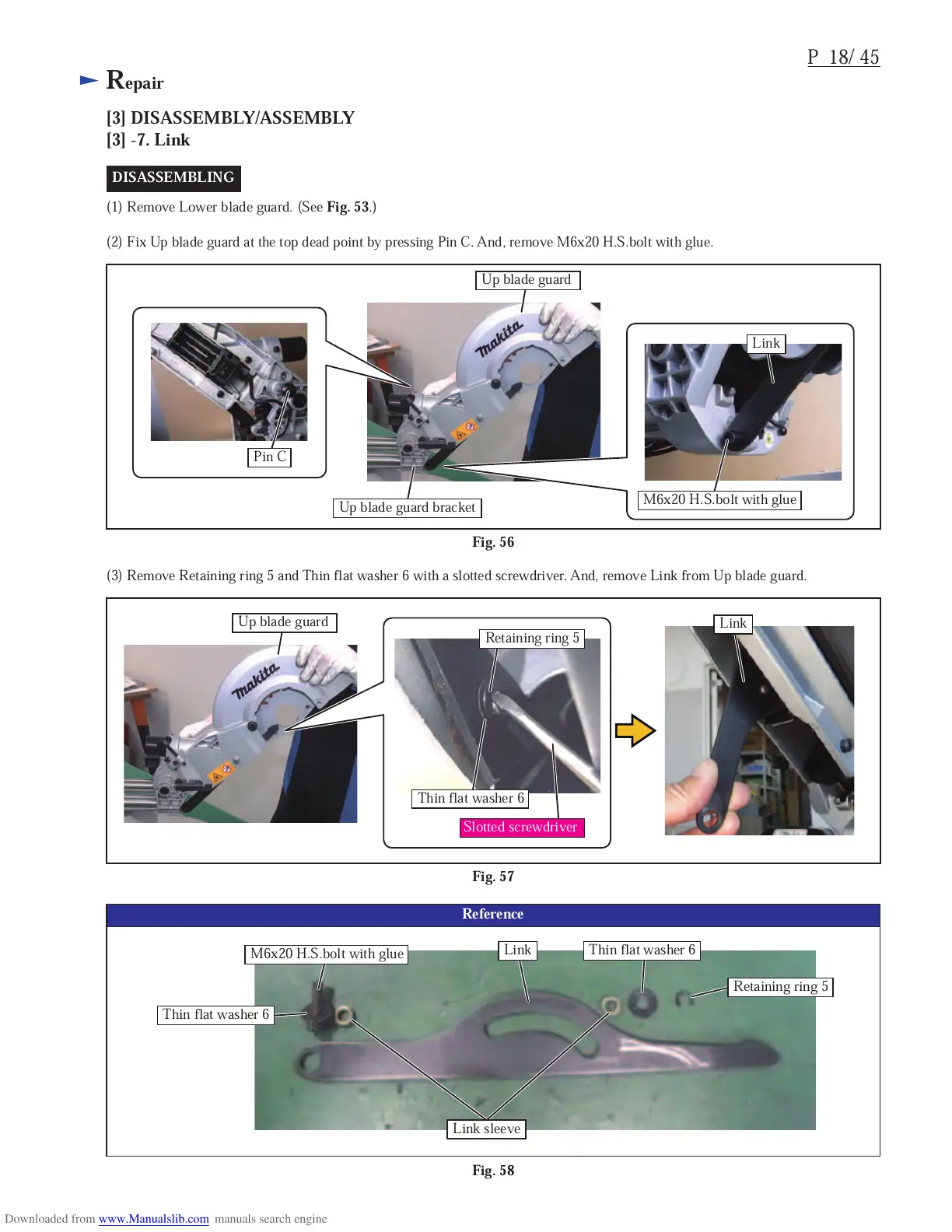

P 18/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -7. Link
Fig. 56
(1) Remove Lower blade guard. (See Fig. 53 .)
(2) Fix Up blade guard at the top dead point by pressing Pin C. And, remove M6x20 H.S.bolt with glue.
Fig. 57
(3) Remove Retaining ring 5 and Thin flat washer 6 with a slotted screwdriver. And, remove Link from Up blade guard.
DISASSEMBLING
Pin C
M6x20 H.S.bolt with glue
M6x20 H.S.bolt with glue
Up blade guard
Up blade guard
Up blade guard bracket
Link
Link
Link
Link sleeve
Fig. 58
Reference
Retaining ring 5
Retaining ring 5
Thin flat washer 6
Thin flat washer 6
Thin flat washer 6
Slotted screwdriver

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
