Makita LS1017L Technical Information

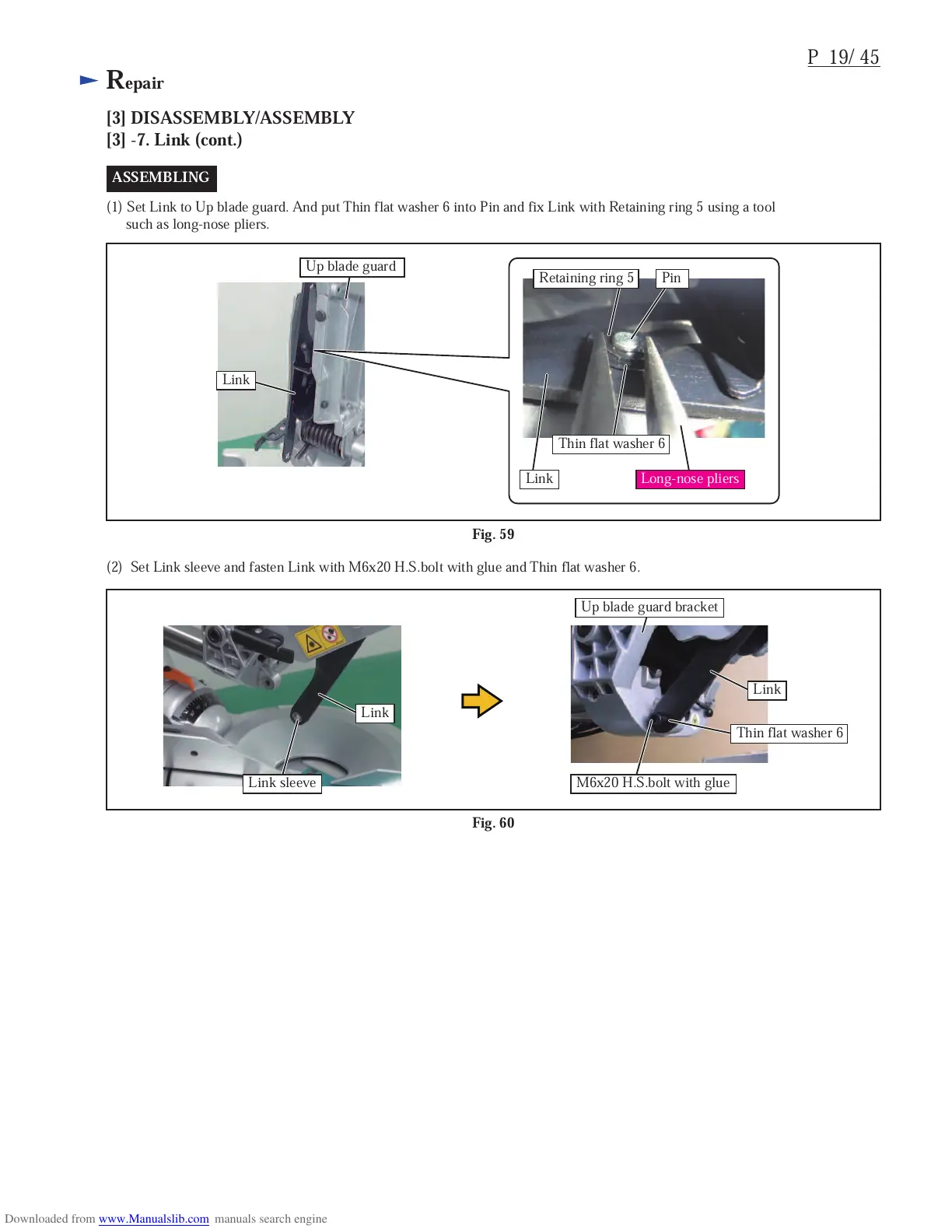

P 19/ 45
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -7. Link (cont.)
Fig. 59
ASSEMBLING
Up blade guard
Link
(1) Set Link to Up blade guard. And put Thin flat washer 6 into Pin and fix Link with Retaining ring 5 using a tool
such as long-nose pliers.
Fig. 60
(2) Set Link sleeve and fasten Link with M6x20 H.S.bolt with glue and Thin flat washer 6.
Thin flat washer 6
Retaining ring 5 Pin
Link Long-nose pliers
Link sleeve M6x20 H.S.bolt with glue
Thin flat washer 6
Link
Link
Up blade guard bracket

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
