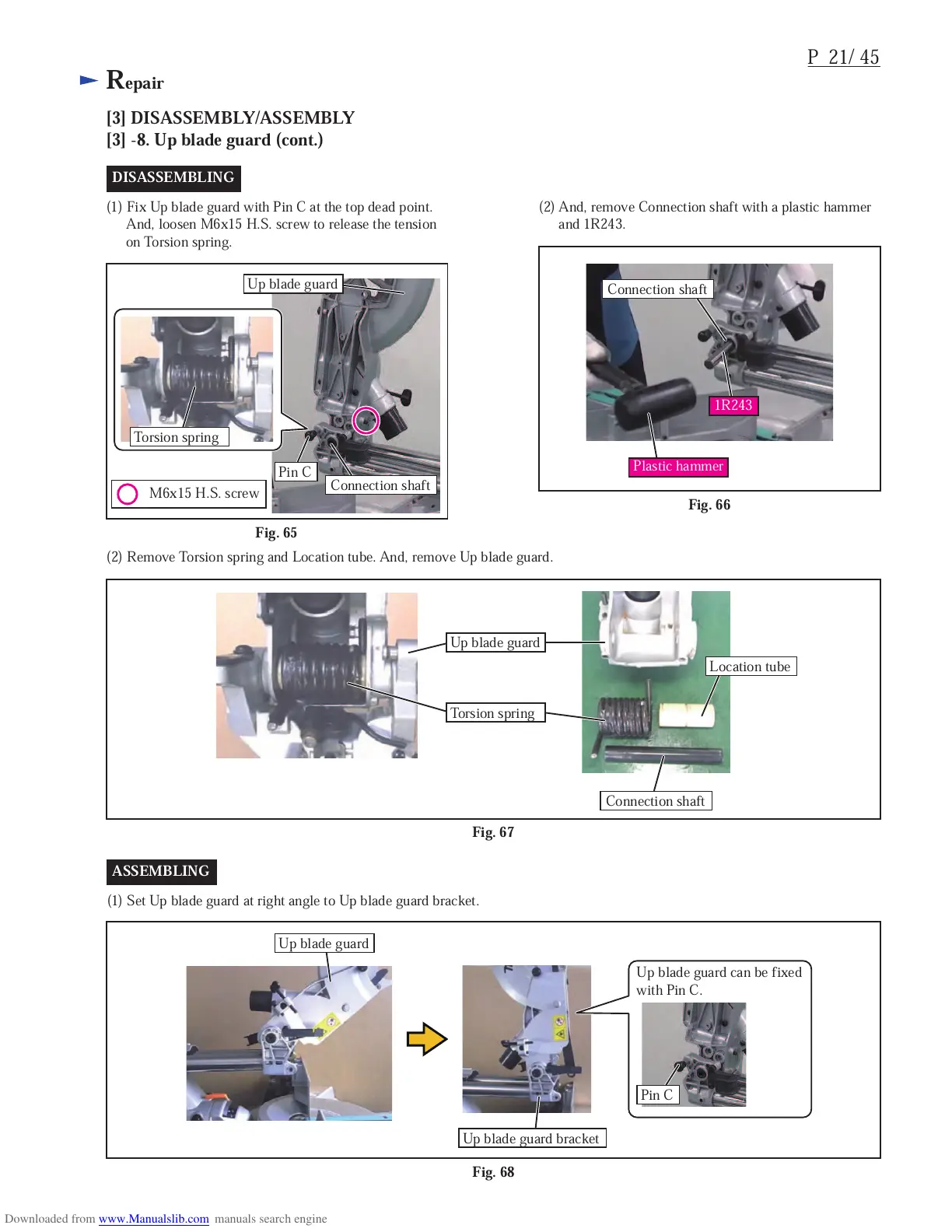

Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -8. Up blade guard (cont.)
Fig. 68
(1) Set Up blade guard at right angle to Up blade guard bracket.
ASSEMBLING
Fig. 67
(2) Remove Torsion spring and Location tube. And, remove Up blade guard.
DISASSEMBLING
Pin C
Up blade guard
Connection shaft
Plastic hammer
1R243
Up blade guard
Up blade guard
Torsion spring
Location tube
Connection shaft
Up blade guard can be fixed
with Pin C.
Pin C
Up blade guard bracket
M6x15 H.S. screw
(1) Fix Up blade guard with Pin C at the top dead point.
And, loosen M6x15 H.S. screw to release the tension
on Torsion spring.
(2) And, remove Connection shaft with a plastic hammer
and 1R243.
Fig. 66
Fig. 65
Torsion spring
Connection shaft
