P 24/ 45
Repair

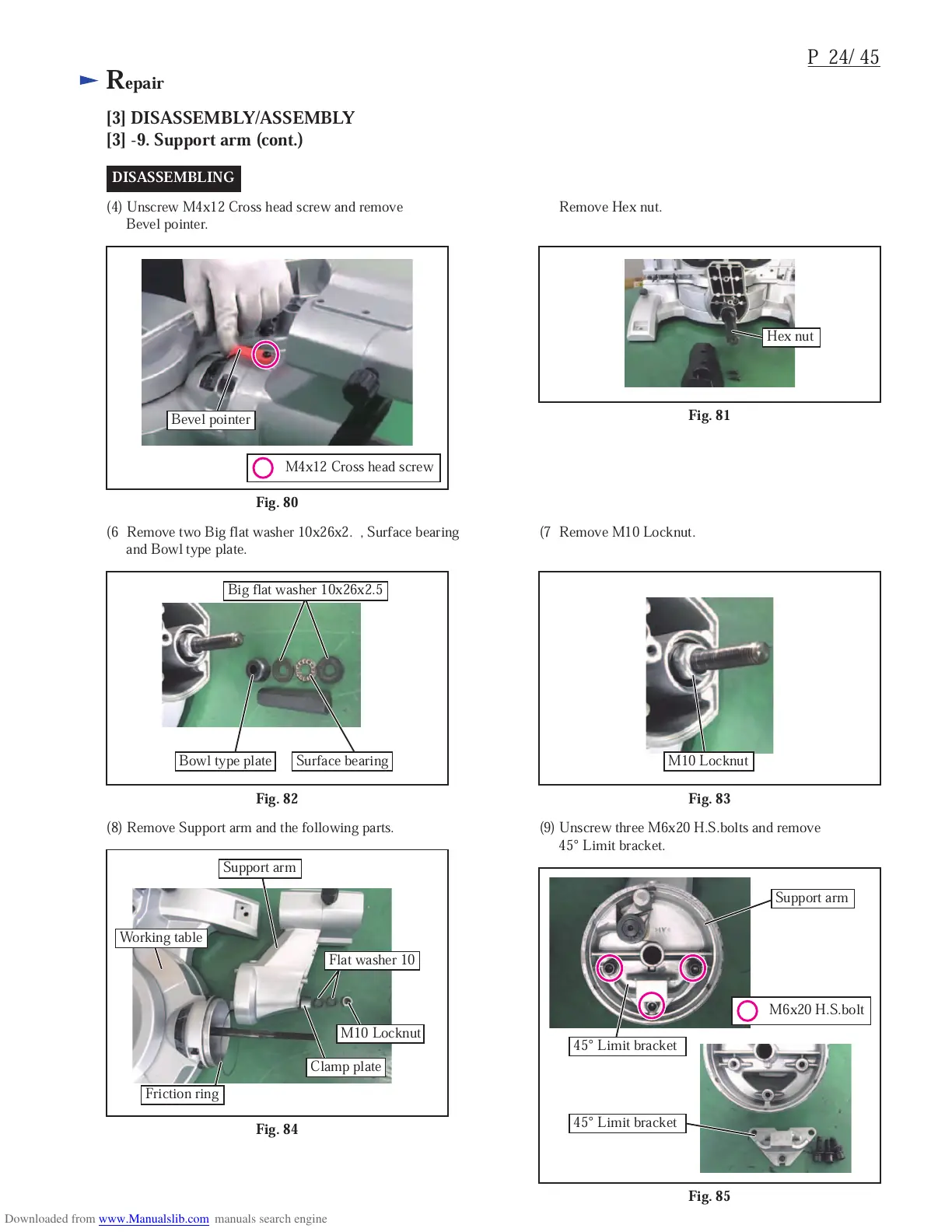

[3] DISASSEMBLY/ASSEMBLY
[3] -9. Support arm (cont.)
DISASSEMBLING
(4) Unscrew M4x12 Cross head screw and remove
Bevel pointer.
(5) Remove Hex nut.
Fig. 81
Fig. 80
M4x12 Cross head screw
Bevel pointer
Hex nut
(6) Remove two Big flat washer 10x26x2.5, Surface bearing
and Bowl type plate.
(7) Remove M10 Locknut.
Fig. 83
Fig. 82
Bowl type plate M10 Locknut
Big flat washer 10x26x2.5
Surface bearing
Support arm
Flat washer 10
M10 Locknut
Clamp plate
Friction ring
(8) Remove Support arm and the following parts.
Fig. 84
Working table
(9) Unscrew three M6x20 H.S.bolts and remove
45° Limit bracket.
Fig. 85
45° Limit bracket
45° Limit bracket
Support arm
M6x20 H.S.bolt
