Makita LS1017L Technical Information

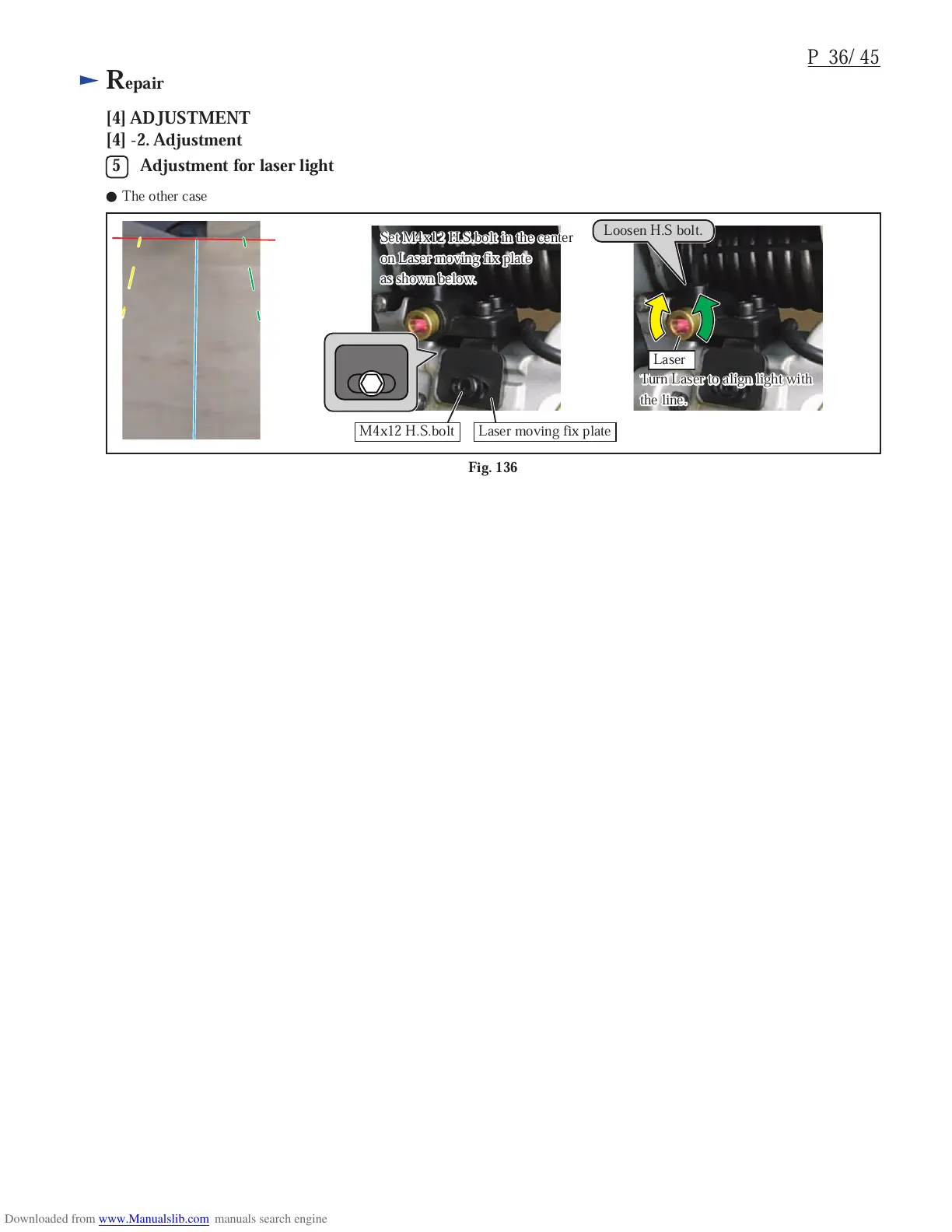

P 36/ 45
Repair
[4] ADJUSTMENT
[4] -2. Adjustment
Adjustment for laser light
5
Loosen H.S bolt.
Set
M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Set M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Laser moving fix plateM4x12 H.S.bolt
The other case
Fig. 136
Loosen H.S bolt.
Set
M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Set M4x12 H.S.bolt in the center
on Laser moving fix plate
as shown below.
Laser moving fix plate
Turn Laser to align light with
the line.
Turn Laser to align light with
the line.
M4x12 H.S.bolt
Laser

Makita LS1017L Specifications

General

Blade Diameter	260 mm
Laser Guide	Yes
Voltage	240 V
Length	825 mm
Width	536 mm
Height	633 mm
Mitre Capacity	0° - 52°
No Load Speed	4300 rpm
Max. Cutting Capacity at 45°	68 x 197 mm
Input Wattage	1, 430 W
Power Input	1, 430 W
