Mamiya RB67 - 11

26 27 28 29 30
24---
25
31

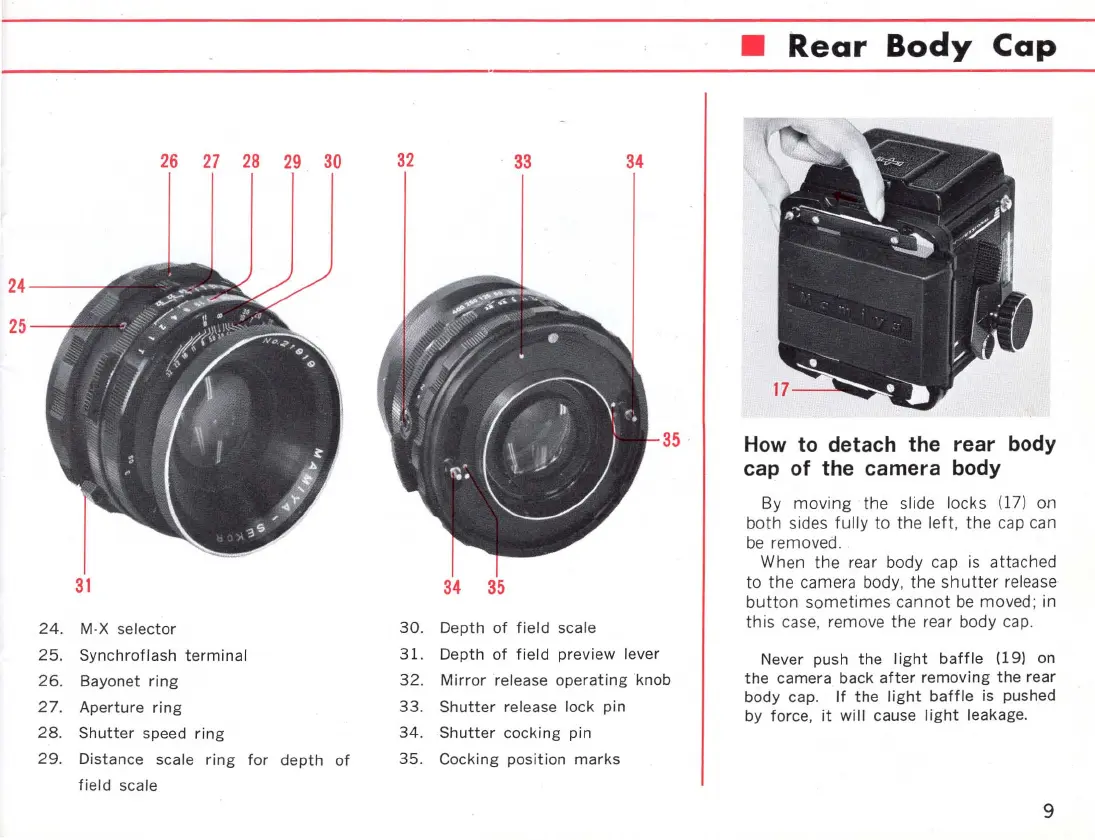

24. M·X selector
25. Synchroflash terminal
26. Bayonet ring
27. Aperture ring
28. Shutter speed ring
29. Distance scale ring for depth of
field scale
32
33
34
34
35
30 . Depth of field scale
31. Depth of field preview lever
• Rear Body Cap
35 How to detach the rear body
cap of the
camera body
By moving the slide locks (17) Oll
both sides fully to the left, the cap can
be removed.
When the rear body cap is attached
to the camera body, the shutter release
button sometimes cannot be moved ; in
this case, remove the rear body cap.
32. Mirror release operatingknob
Never push the light baffle (19) on
the camera back after removing the rear
body cap.
If the light baffle is pushed
by
force, it will cause light leakage.
33. Shutter release lock pin
34 . Shutter cocking pin
35. Cocking position
marks
9
