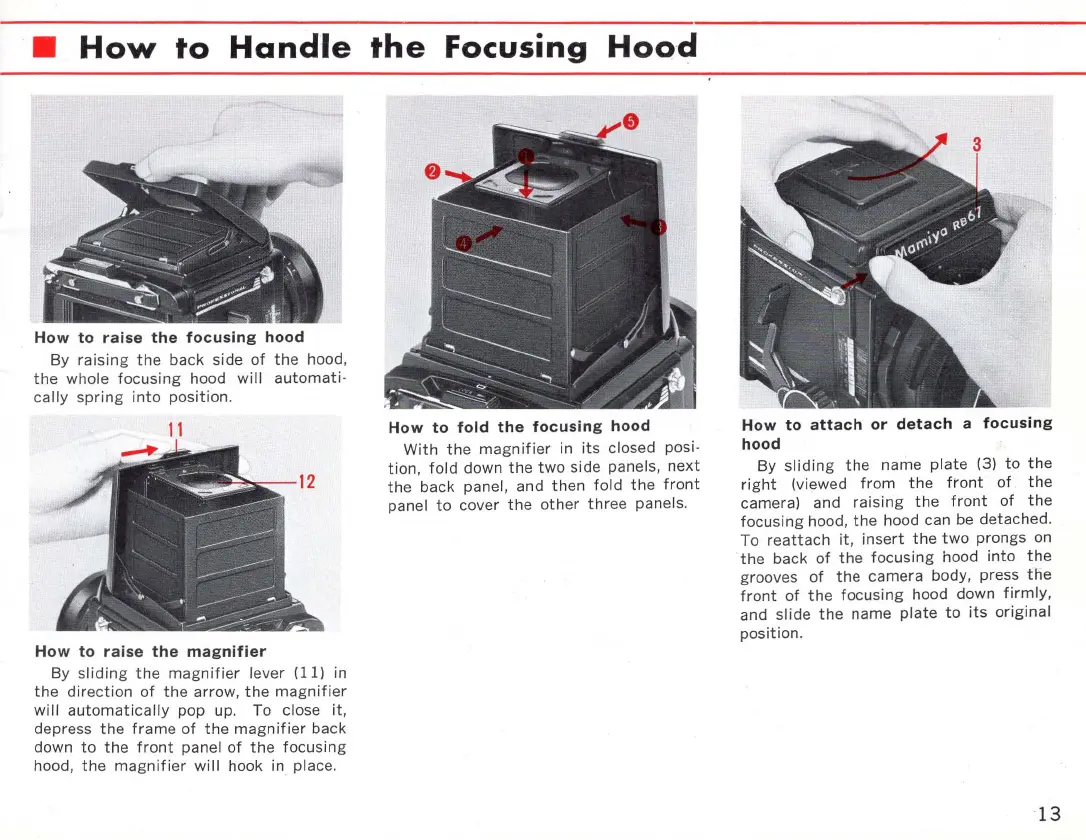

How
to
Handle
the
Focusing
Hoo·d
How
to
raise
the
focusing
hood
By
raising
the
back side
of
the
hood,
the
wh oie
focusing
hood
will
automati·
cally
spring
into
position.
11
How
to
raise
the
magnifier
By
sliding
the
magnifier
lever (11) in
the
direction
of
the
arrow,
the
magnifier
will
automatically
pop up. To close it,
depress
the
frame
of
the
magnifier
back
down
to
the
front
panel
of
the
focusing
hood,
the
magnifier
will
hook in place.
How
to
fold
the
focusing
hood
With
the
magnifier
in
its
closed posi-
tion,
fold
down
the
two
side panels,
next
the
back panel, and
then
fold
the
front
panel
to
cover
the
other
three
panels.
How
to
at
tach
or
detach
a focusing
hood
By
sliding
the
name
plate
(3)
to
the
right
(viewed
from
the
front
of
the
camera) and raisi
ng
t he
fro
nt
of
t he
focusing
hood,
the
hood can be
detached
.
To
reattach
it,
insert
the
two
prongs on
the
back
of
the
focusing
hood
into
the
grooves
of
the
camera body, press
the
front
of
the
focusing
hood down
firm
ly,
and
slide
the
name pl
ate
to
its
origina
l
position.
