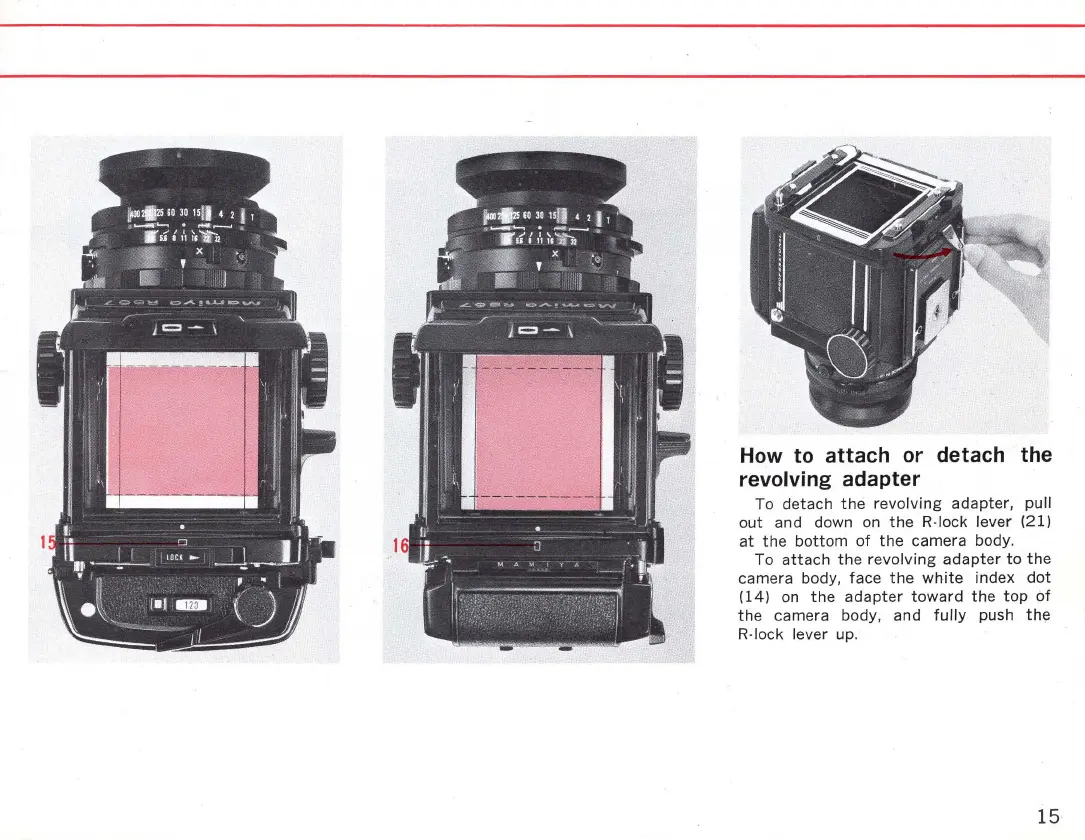

How to attach or detach the
revolving adapter
To detach
the
revolving
adapter, pull
out
and down on
the
R-Iock lever (21)
at
the
bottom
of
the
camera
body_
To
attach
the
revolving
adapter
to
the
camera body,
face
the
white
index
dot
(14)
on
the
adapter
toward
the
top
of
the
camera body, and
fully
push thl'l
R-Iock lever
up_
15
