COMMONRAILSYSTEM

Finaltighteningofhigh-pressureline

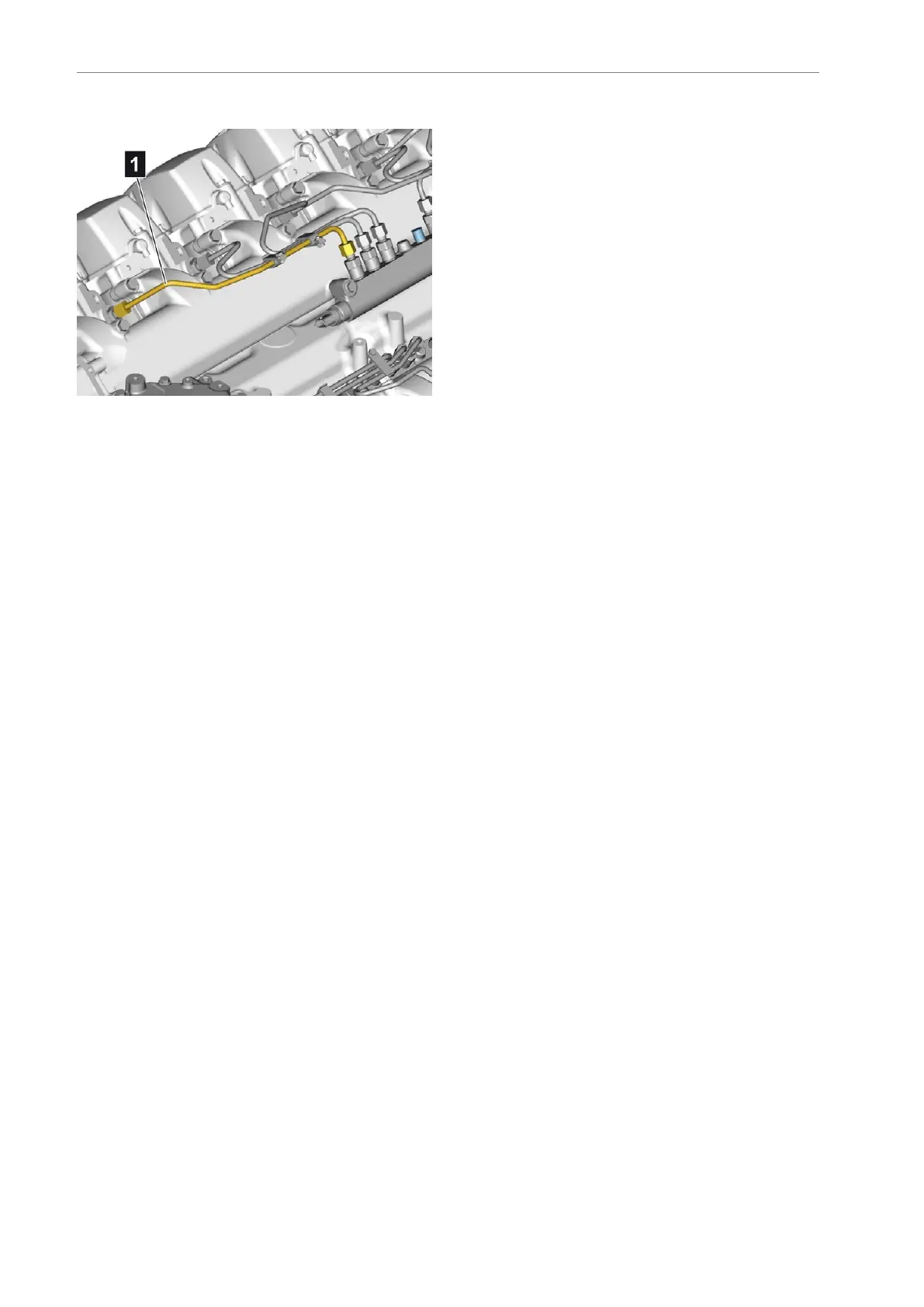

•Tightenthenewhigh-pressurelines(1)toFinal

tightening60°withAngleextension[32]and

Specialspanner,size17[31]

•Tightenthehigh-pressurelines(1)toFinal

tightening30°withAngleextension[32]and

Specialspanner,size17[31]ifre-using

•Repeatthesameprocedurefortheother

high-pressurelines

•Tightenthepipeclampmountingboltsto5Nm

124AE63stedition
