COMMONRAILSYSTEM

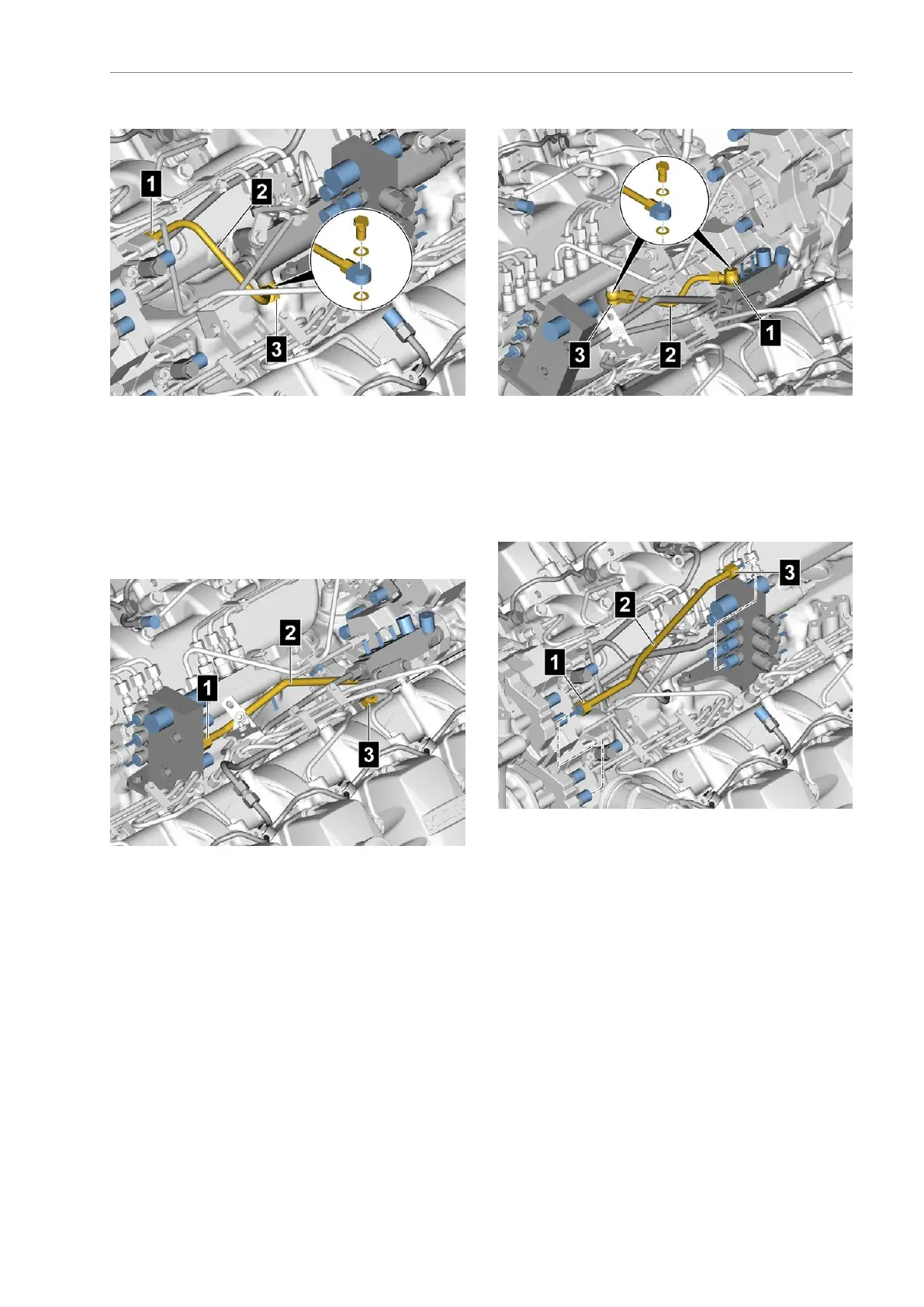

Attachingthefuellinerail–collector
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)withnewsealingring
•Fitthehollowscrew(3)withanewsealingring
andscrewin
•Screwonandtightentheunionnut(1)
•Tightenthehollowscrew(3)
Attachingthefuellinehandpump–
high-pressurepumpbottom
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)
•Screwonandtightenunionnuts(1)and(3)
Attachingthefuellinerightrail–collector
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)withnewsealingrings
•Fitthehollowscrews(1)and(3)withnewsealing
rings,thenscrewinandtighten
Attachingthefuellinefuellter–high-pressure
pumpbottom
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)
•Screwonandtightenunionnuts(1)and(3)
