COMMONRAILSYSTEM

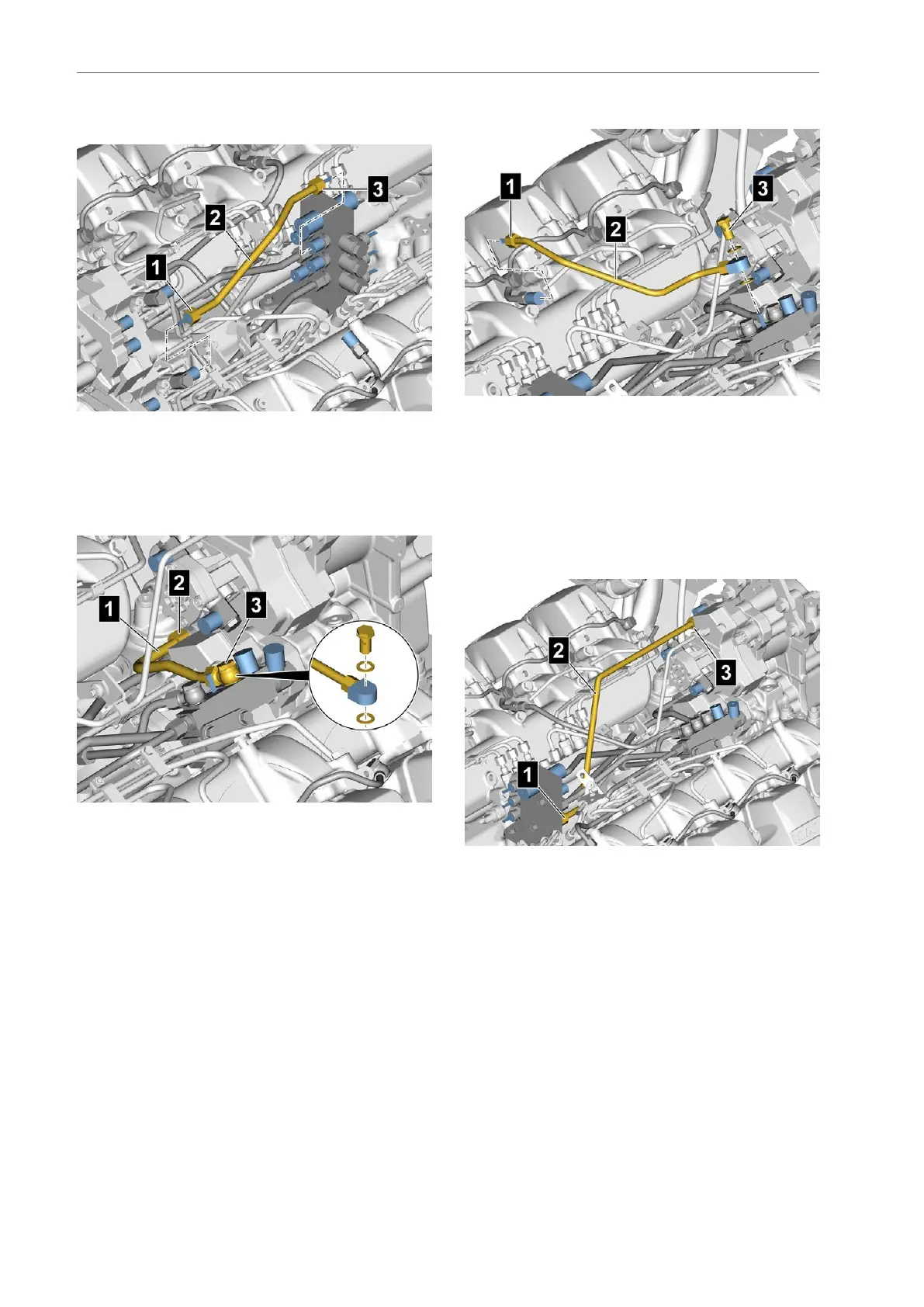

Attachingthefuellinehigh-pressurepump
bottom–fuellter
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)
•Screwonandtightenunionnuts(1)and(3)
Attachingthefuellinehigh-pressurepump
bottom–collector
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(1)withnewsealingring
•Fitthehollowscrew(3)withanewsealingring
andscrewin
•Screwonandtightentheunionnut(2)
•Tightenthehollowscrew(3)
Attachingthefuelline–leakageoilline
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)withnewsealingring
•Fitthehollowscrew(3)withanewsealingring
andscrewin
•Screwonandtightentheunionnut(1)
•Tightenthehollowscrew(3)
Attachingthefuellinehigh-pressurepumptop
–handpump
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)
•Screwonandtightenunionnuts(1)and(3)
152AE63stedition
