COMMONRAILSYSTEM

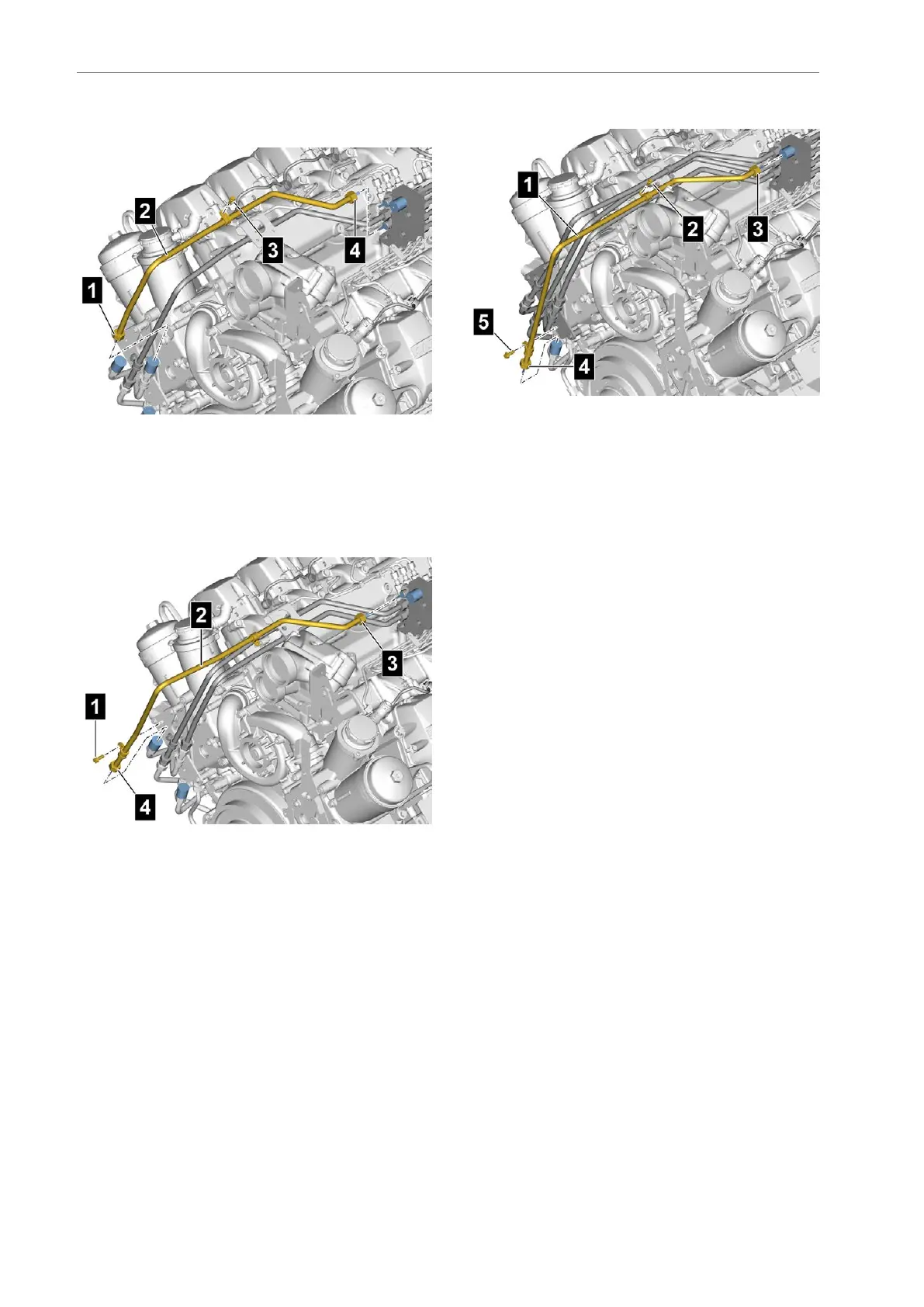

Attachingthefuellinefuellter–high-pressure
pump
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)
•Screwonandtightenunionnuts(1)and(4)
•Screwinandtightenthemountingbolt(3)
Attachingthefuellinehigh-pressurepump–fuel
lter
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(2)
•Screwonandtightenunionnuts(3)and(4)
•Screwinandtightenthemountingbolt(1)
Attachingthefuelreturnline
•Removetheendplugsandprotectivesleeves
•Positionthefuelline(1)
•Screwonandtightenunionnuts(3)and(4)
•Screwinandtightenthemountingbolts(2)and
(5)asmarked
