COMMONRAILSYSTEM

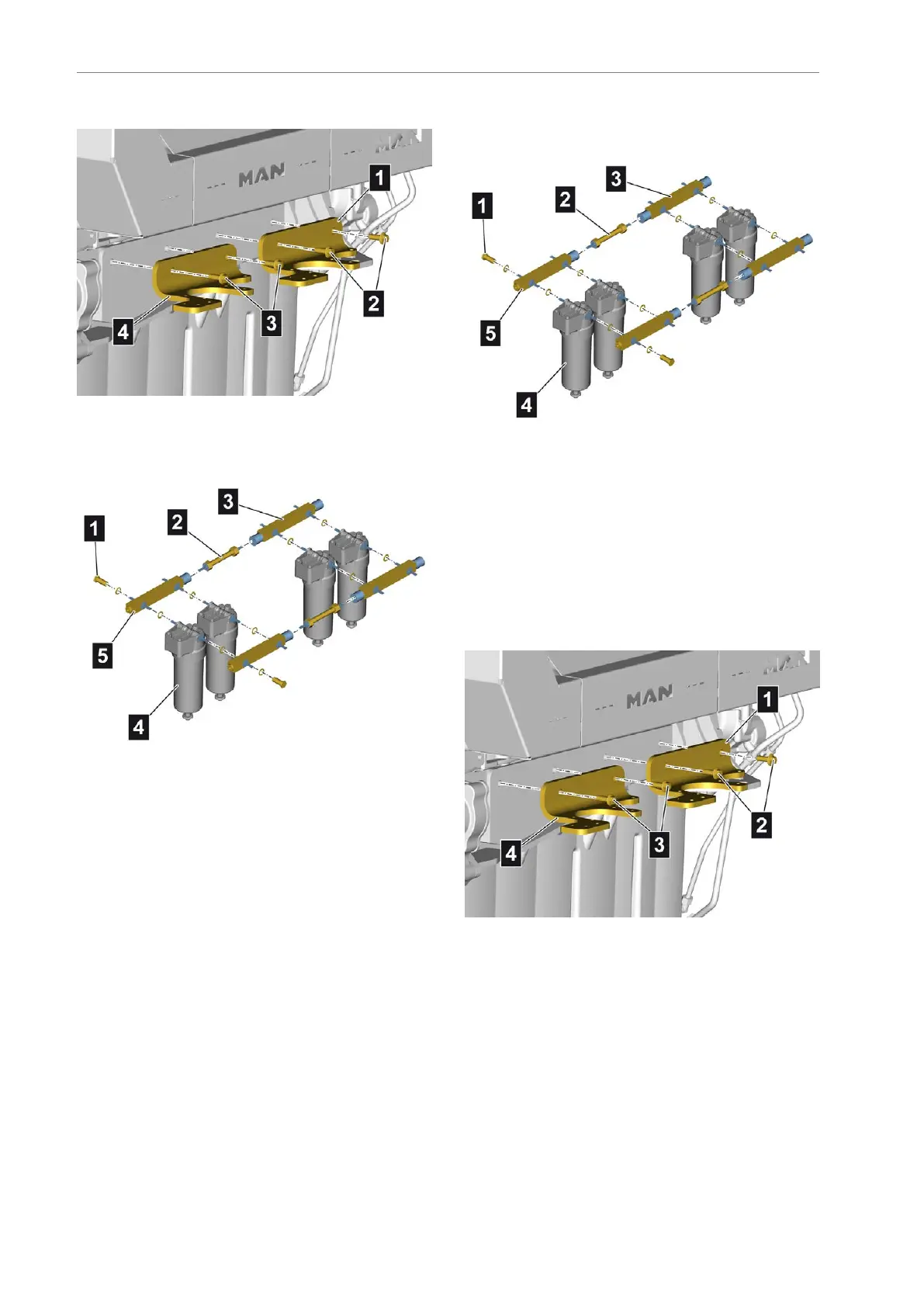

Detachingthefuellterholder
•Unscrewthemountingbolts(2)and(3)
•Removetheholders(1)and(4)
Dismantlingthefuellter
•Unscrewthehollowscrews(1)
•Removethedistributors(3)and(5)withsealing
rings
•Plugthedistributors(3)and(5)withtheEnd
plug[54]
•Unscrewthefuellines(2)ofdistributors(3)and
(5)
•Plugthedistributors(3)and(5)withtheEndplug
(GPN330L18)[53]
•PlugthedistributorconnectionswithProtective
sleeveZ28x20[56]
•Repeatthesameprocedurefortheother
distributors
•Plugthefuellter(4)withEndplug[54]
Installingthefuellter
Assemblingthefuellter
•Removeprotectivesleevesandendplugs
•Screwfuellines(2)ontodistributors(3)and(5)
andtighten
•Positiondistributors(3)and(5)withnewsealing
rings
•Screwinthehollowscrews(1)withnewsealing
ringsandtighten
•Repeatthesameprocedurefortheother
distributors
Attachingthefuellterholders
•Positiontheholders(1)and(4)
•Screwinandtightenthemountingbolts(2)and(3)
158AE63stedition
