COMMONRAILSYSTEM
Removingthehandpump

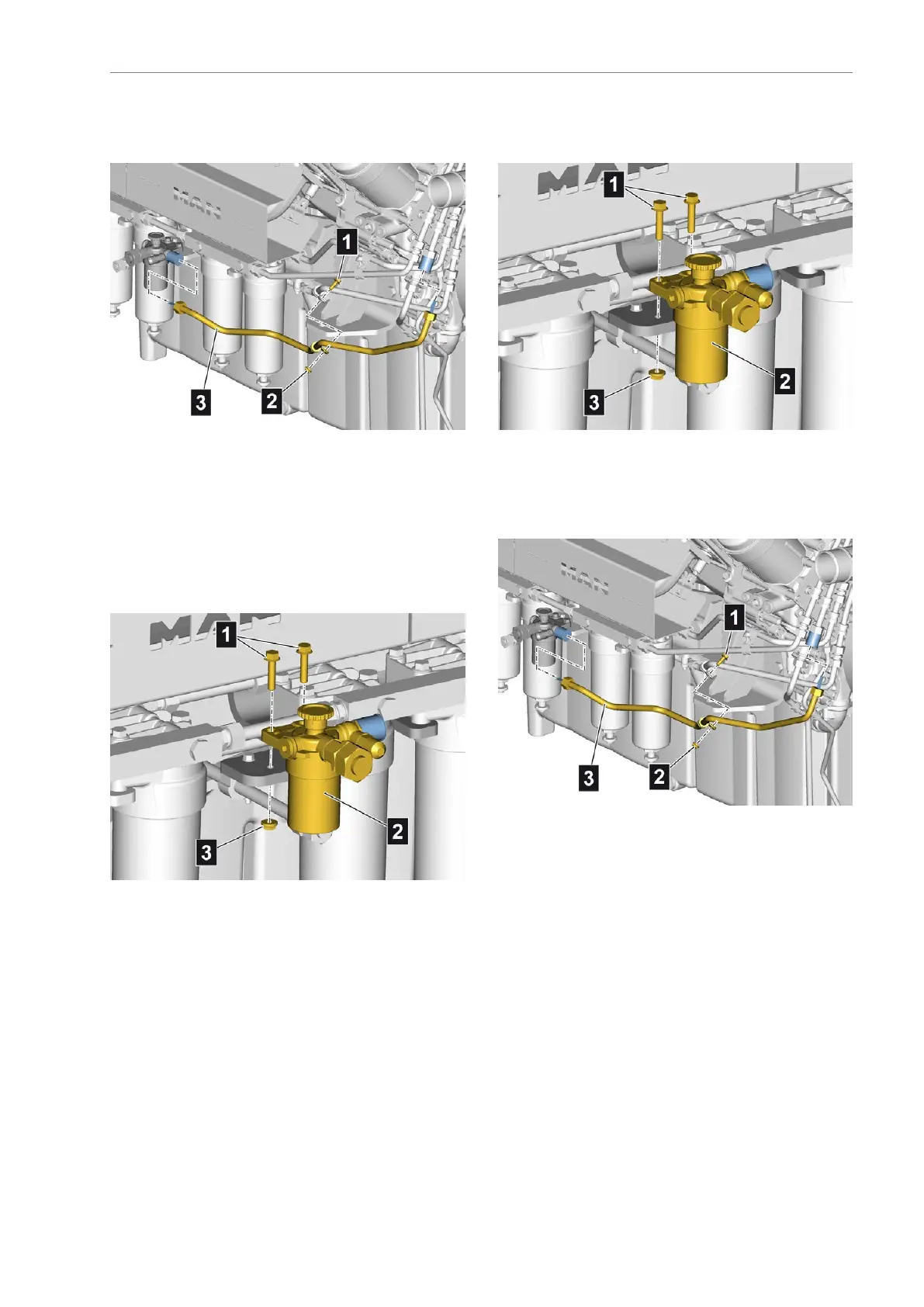

Detachingthehandpumpfuelline
•Unscrewthemountingnut(2)
•Pulloutthemountingbolt(1)
•Detachthehandpumpfuelline(3)
•Plugthehandpumpfuelline(3)withtheEndplug
(GPN330L18)[58]
•PlugtheconnectionswithProtectivesleeveZ
28x20[59]
Detachingthehandpump
•Unscrewthemountingnuts(3)
•Pulloutthemountingbolts(1)
•Removethehandpump(2)
Installingthehandpump
Attachingthehandpump
•Positionthehandpump(2)
•Insertthemountingbolts(1)
•Screwonandtightenthemountingnuts(3)
Attachingthehandpumpfuelline
•Removetheendplugsandprotectivesleeves
•Attachthehandpumpfuelline(3)
•Insertthemountingbolt(1)
•Screwonandtightenthemountingnut(2)
