INTAKE/EXHAUSTSYSTEM

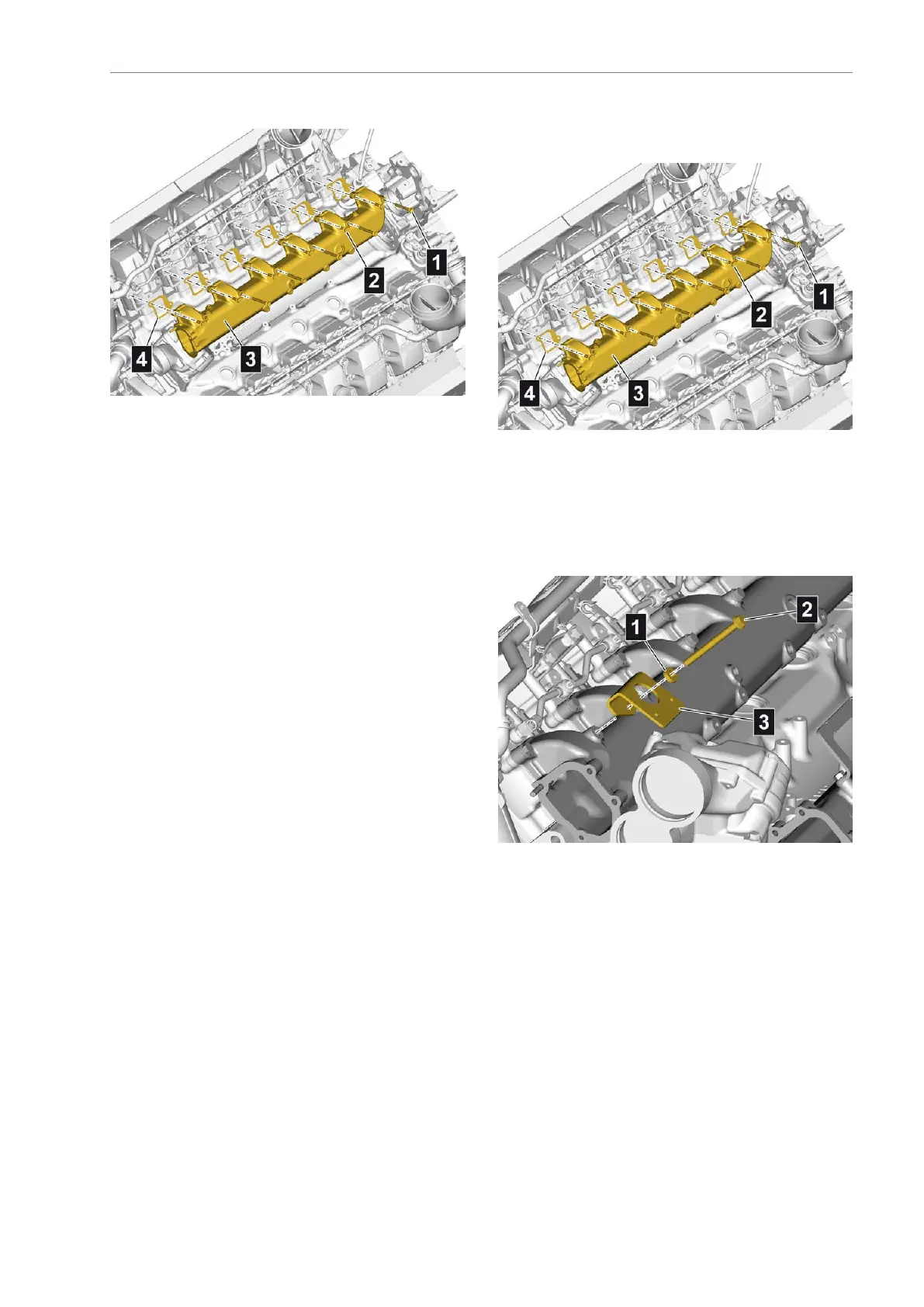

Removingtherightairdistributionpipe
•Marktheinstallationpositionofthemountingbolts
(1)and(2)
•Removetheairdistributionpipe(3)withseals(4)
•Cleanthesealingsurfaces
Installingtherightairdistributionpipe
Installingtherightairdistributionpipe
•Cleanthesealingsurfaces
•Positiontheairdistributionpipe(3)withnewseals
(4)
•Screwinthemountingbolts(1)and(2)asmarked
•Tightenthemountingbolts(1)and(2)
Attachingtheholder
•Positiontheholder(3)withwasher(1)
•Screwinandtightenthemountingbolt(2)
