INTAKE/EXHAUSTSYSTEM

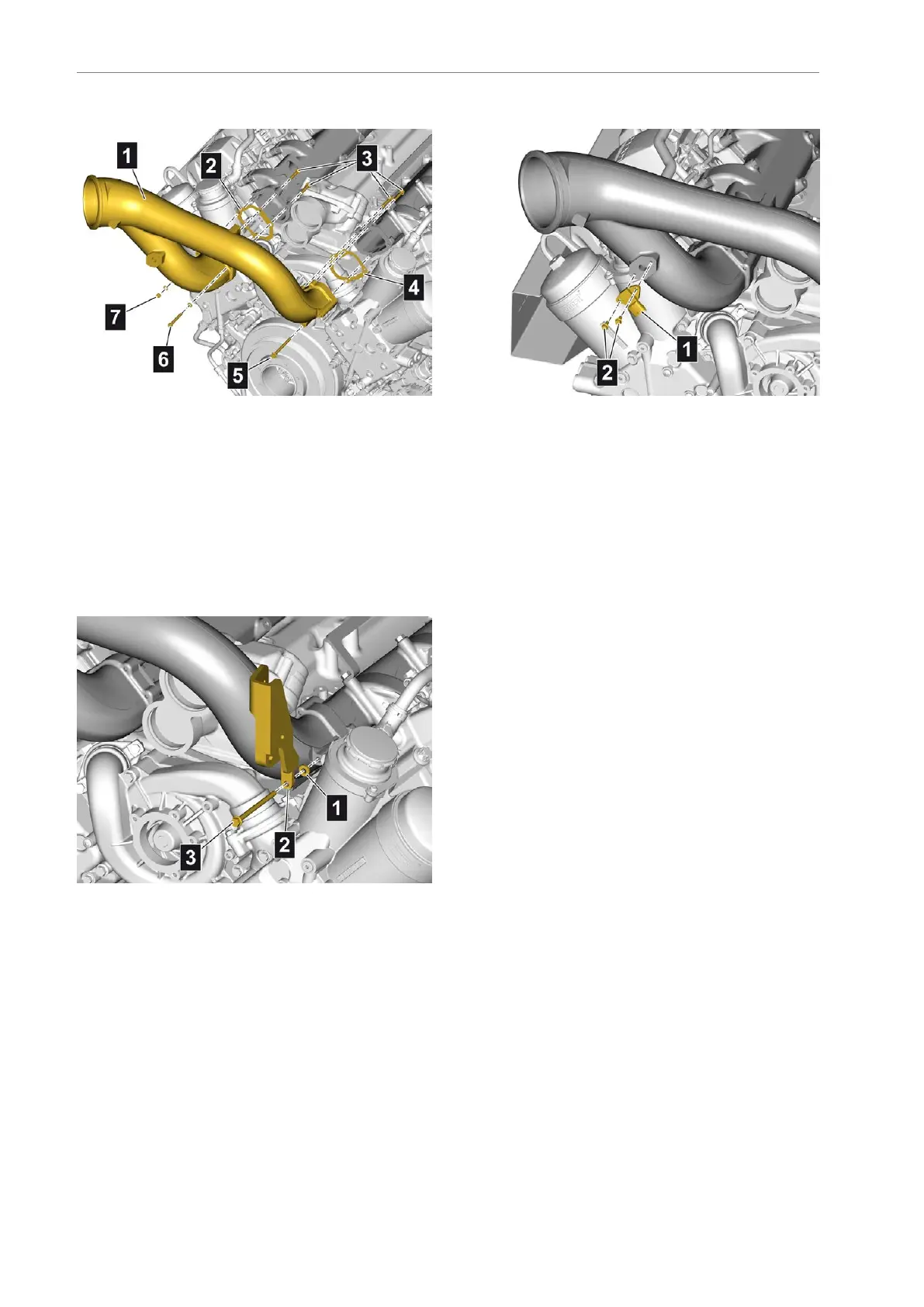

Installingthechargeairmanifold
•Cleanthesealingsurfaces
•Fitthechargeairmanifold(1)withnewseals(2)
and(4)andpositionit
•Screwinandtightenthemountingbolts(3)and
(5)asmarked
•Screwinthemountingbolt(6)withwasheras
markedandtighten
•Screwonthemountingnut(7)withwasherand
tighten
Attachingtheholder
•Positiontheholder(2)withwasher(1)
•Screwinandtightenthemountingbolt(3)
Attachingthepressuresensor
•Cleanthesealingsurfaces
•Insertthepressuresensor(1)withanewO-ring
•Screwinthemountingbolts(2)andtightenthem
to9Nm
204AE63stedition
