CYLINDERHEAD

Detachingtheenginebarringgear

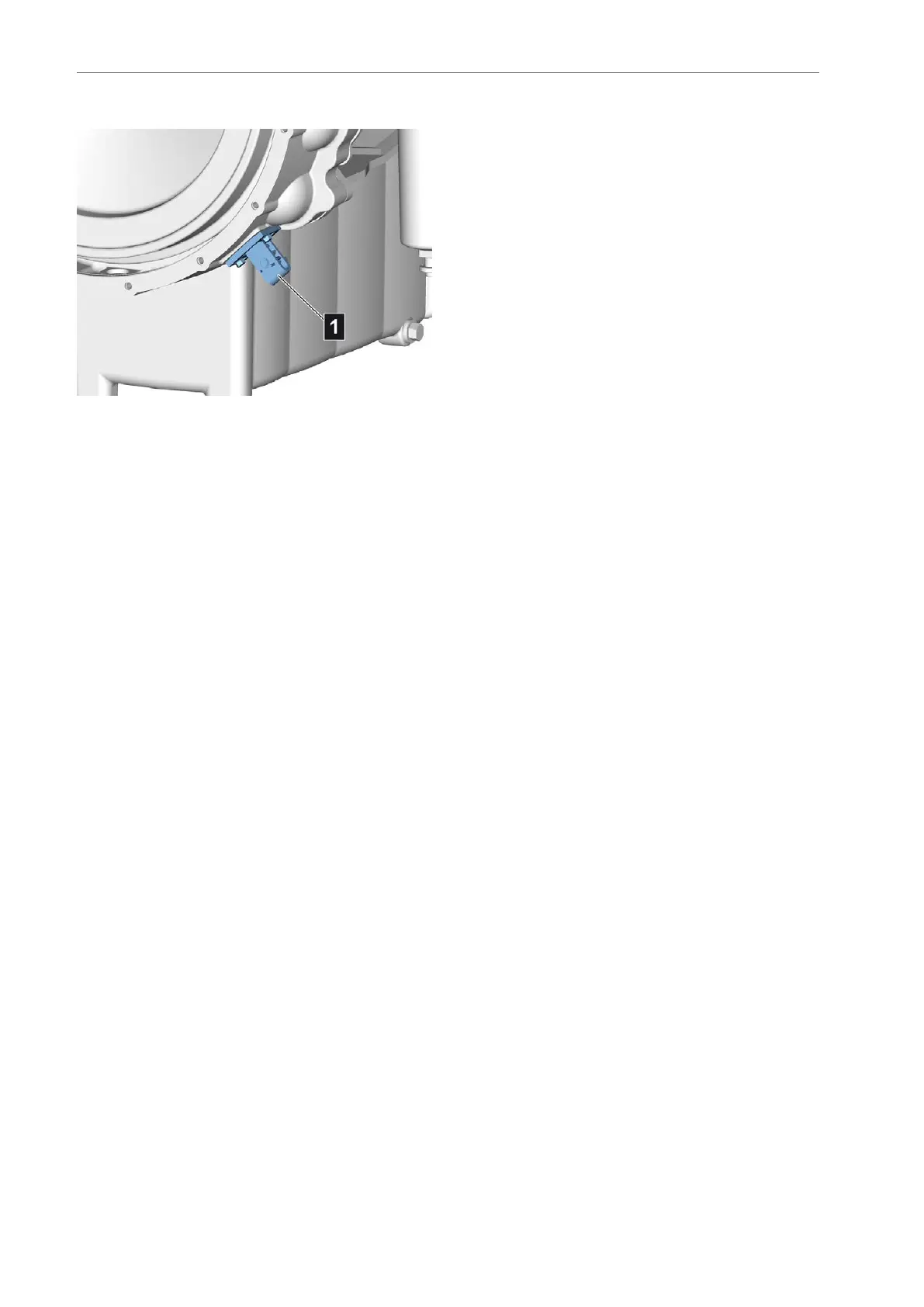

•RemovetheEnginebarringgear[95](1)fromthe

ywheelhousing

•AttachtheTDCmarkingplate

•Attachthecapwithnewsealontheywheel

housing

242AE63stedition
