FRONTTIMINGGEARS/REARTIMINGGEARS

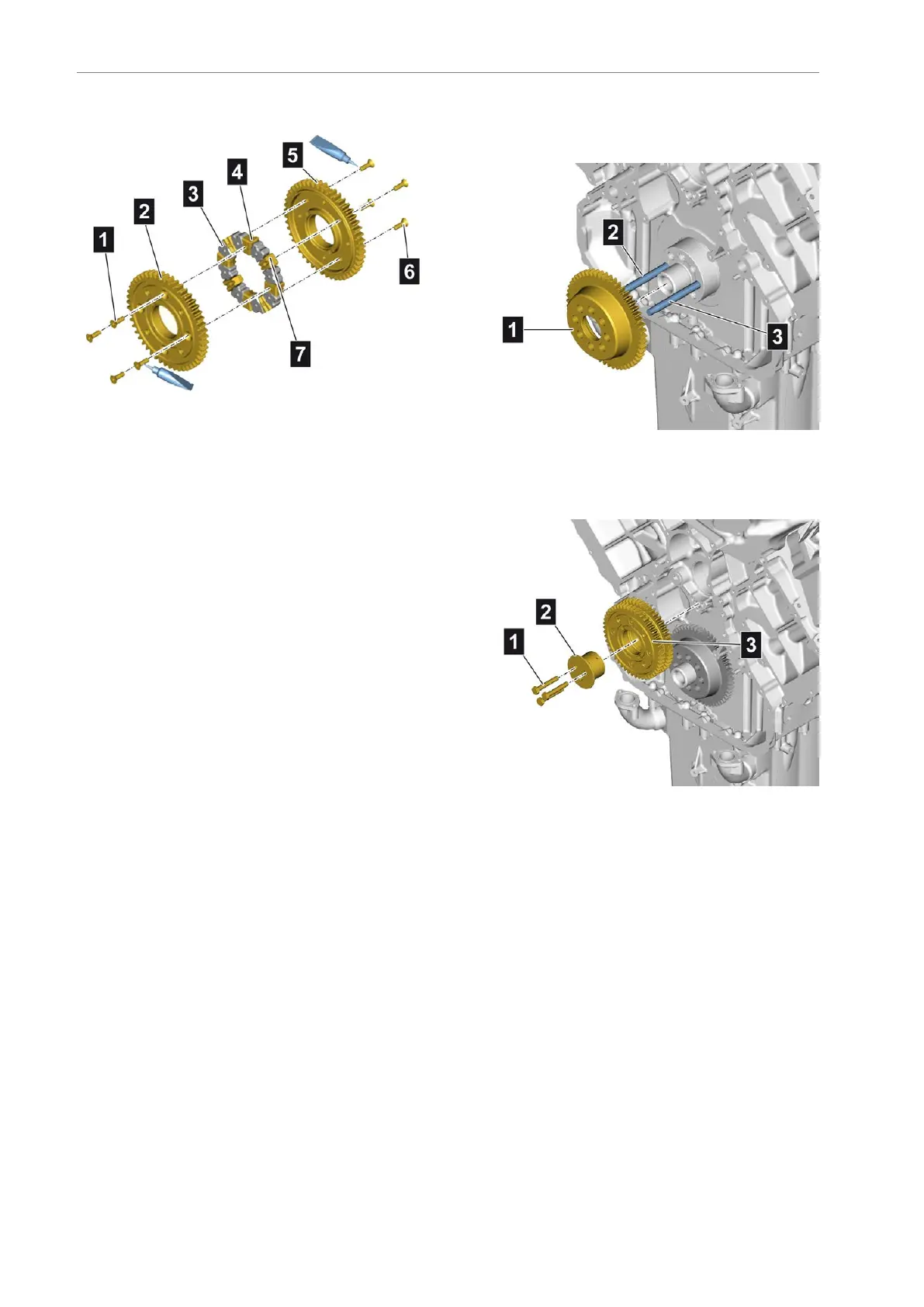

Assemblingtheintermediategear
•Insertthepressurepieces(7)intotheintermediate
gear(5)
•ThinlyapplyLoctite270onthethreadofthenew
mountingbolts(6)
•Screwinthemountingbolts(6)
•Insertthepressurepieces(4)intotheintermediate
gear(2)
•ThinlyapplyLoctite270onthethreadofthenew
mountingbolts(1)
•Screwinthemountingbolts(1)
•Insertnewdampingpieces(3)intothe
intermediategear(5)
•Puttheintermediategear(2)ontheintermediate
gear(5)asmarked
•Tightenthemountingbolts(1)and(6)
Installingthefronttiminggears
Installingtheoilpumpcrankshaftgear
•Pushonthecrankshaftgear(1)overAligning
tool[104](2)and(3)asfarasthestop
Installingtheintermediategear
•ThinlyapplycleanengineoiltoMANStandard
3277ontheintermediategearpin(2)
•Inserttheintermediategearpin(2)intothe
intermediategear(3)
•Installtheintermediategear(3)inthecrankcase
withtheintermediategearpin(2)
•Screwinandtightenthemountingbolts(1)
260AE63stedition
