Man D2862 LE221 User Manual

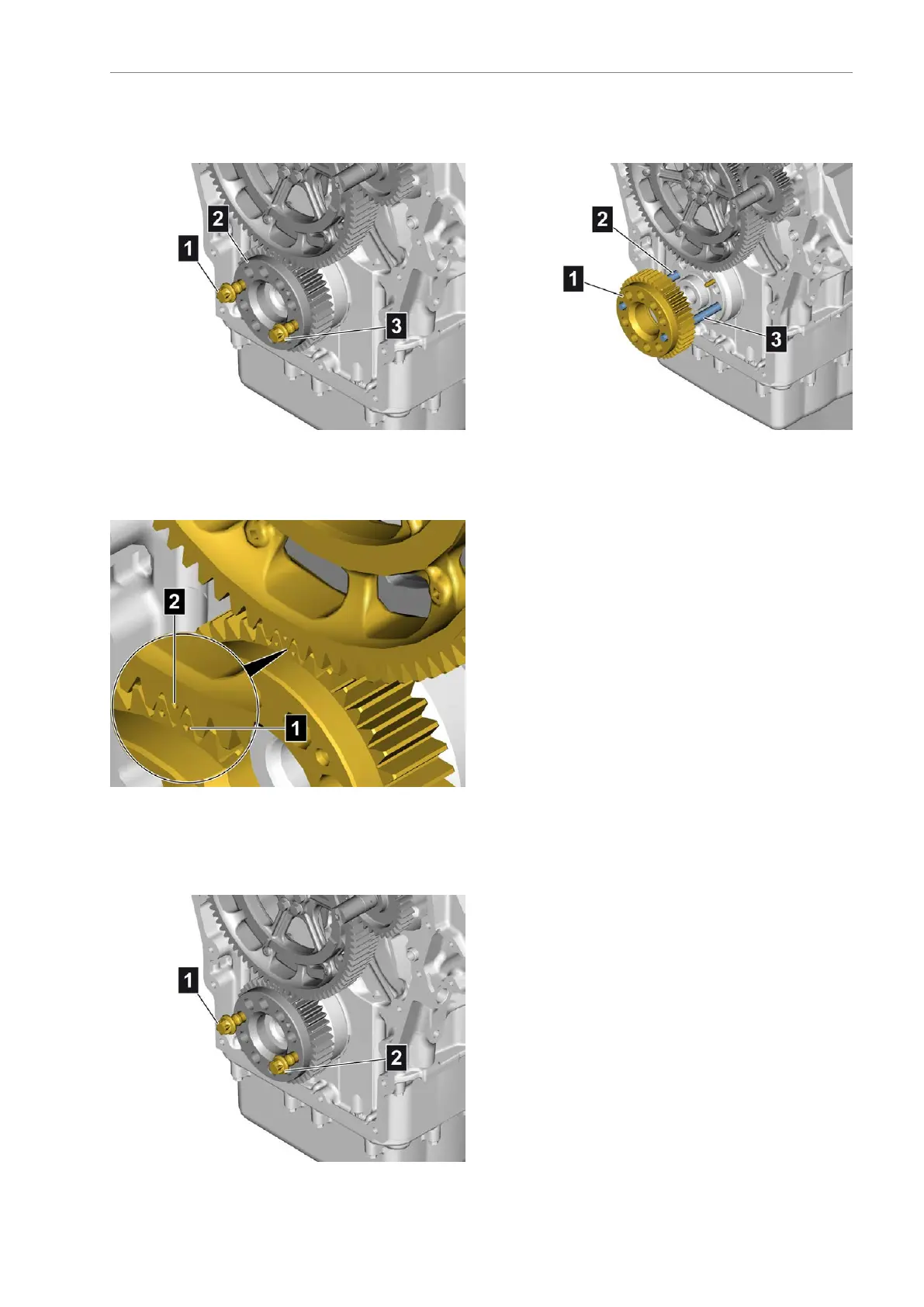

FRONTTIMINGGEARS/REARTIMINGGEARS
Settingthecrankshaftgeartothemarks
Fixingthecrankshaftgear
•Fixthecrankshaftgear(2)byscrewinginthe
mountingbolts(1)and(3)
Settingthecrankshaftgeartothemarks
•Cranktheengineontheenginebarringgearuntil
themark(1)isalignedwiththemark(2)
Mark(1)andmark(2)arealigned.
Unscrewingthecrankshaftgearmountingbolts
•Unscrewthemountingbolts(1)and(2)
Removingthereartiminggears
Removingthecrankshaftgear
•ScrewintheAligningtool[105](2)and(3)
•Pulloffthecrankshaftgear(1)
AE63stedition265
