ENGINELUBRICATION
Removingtheoilmodule

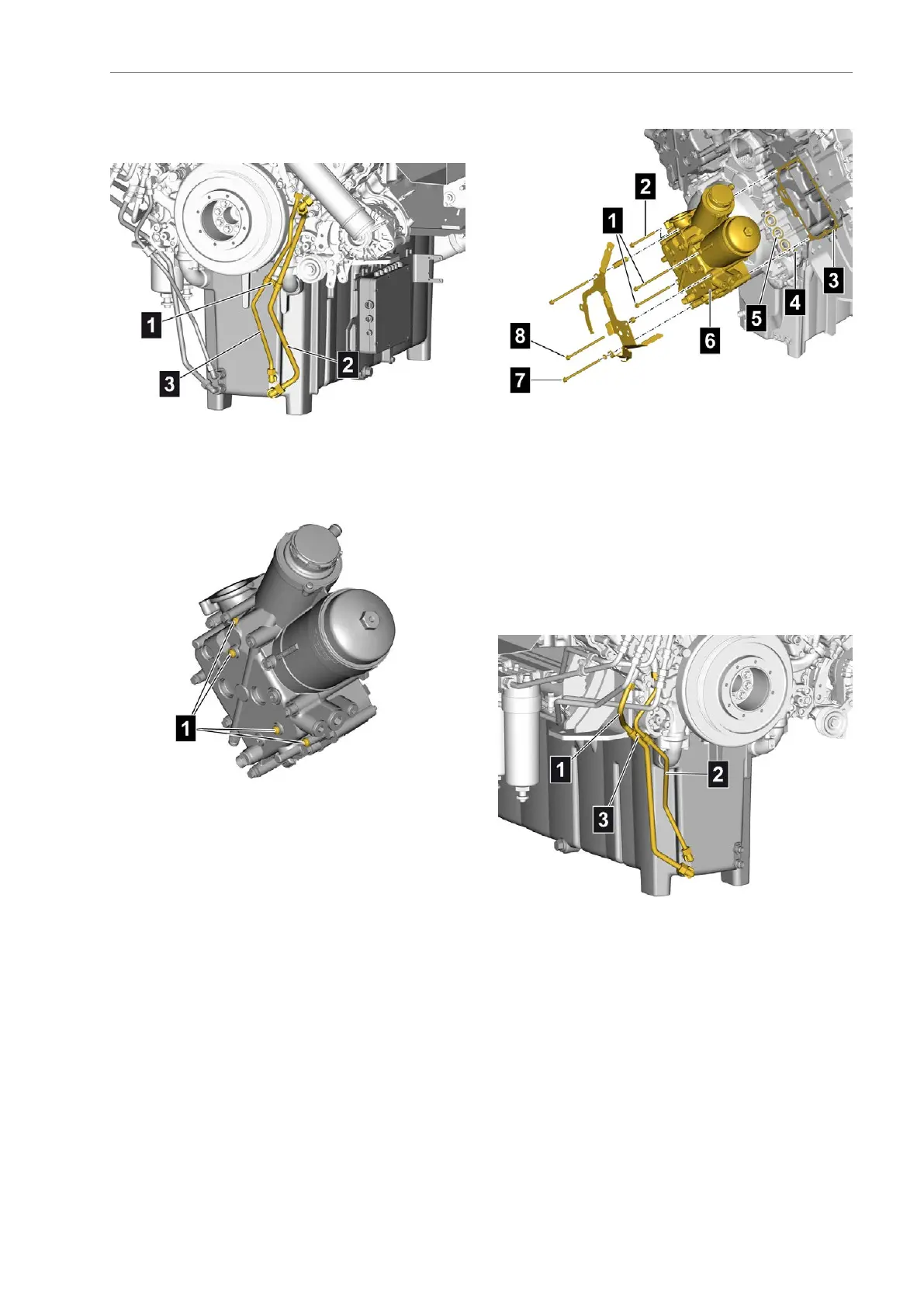

Removingtheleftoilreturnline
•Releasethefastening(1)
•Detachtheoilreturnlines(2)and(3)
Leftoilmoduleremovalinstructions
•Donotunscrewtheoilcoolermountingbolts(1)
toremovetheoilmodule
Detachingtheleftoilmodule
•Marktheinstallationpositionofthemountingbolts
(1),(2),(7)and(8)
•Unscrewthemountingbolts(1),(2),(7)and(8)
andremove
•Marktheinstallationpositionofthewiringharness
holderwithbush
•Removethewiringharnessholderwithbush
•Removetheoilmodule(6)withseal(3)
•RemovetheO-ring(5)
•Cleanthesealingsurfaces
Removingtherightoilreturnline
•Releasethefastening(3)
•Detachtheoilreturnlines(1)and(2)
AE63stedition271
