ENGINELUBRICATION
Removingtheoilsump

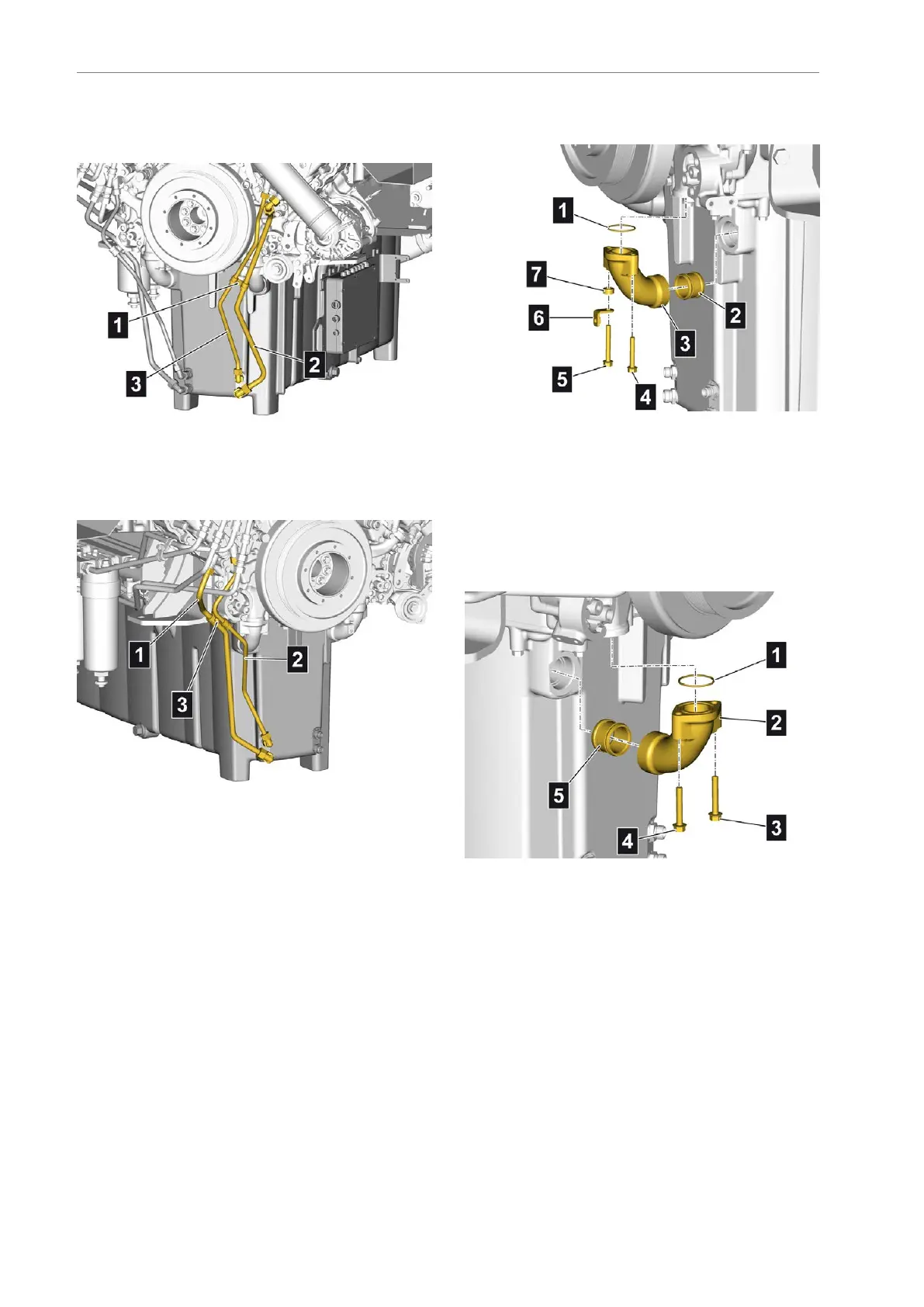

Detachingtheleftoilreturnline
•Releasethefastening(1)
•Detachtheoilreturnlines(2)and(3)
Detachingtherightoilreturnline
•Releasethefastening(3)
•Detachtheoilreturnlines(1)and(2)
Detachingthemanifoldfortheleftoilsuction
line
•Markthemountingbolts(4)and(5)
•Unscrewthemountingbolts(4)and(5)andthen
removewiththeholder(6)andbush(7)
•Removethemanifold(3)withtheO-ring(1)
•Pullouttheinsertpipe(2)
•Cleanthesealingsurfaces
Detachingthemanifoldfortherightoilsuction
line
•Unscrewthemountingbolts(3)and(4)and
remove
•Removethemanifold(2)withtheO-ring(1)
•Pullouttheinsertpipe(5)
•Cleanthesealingsurfaces
