ENGINELUBRICATION

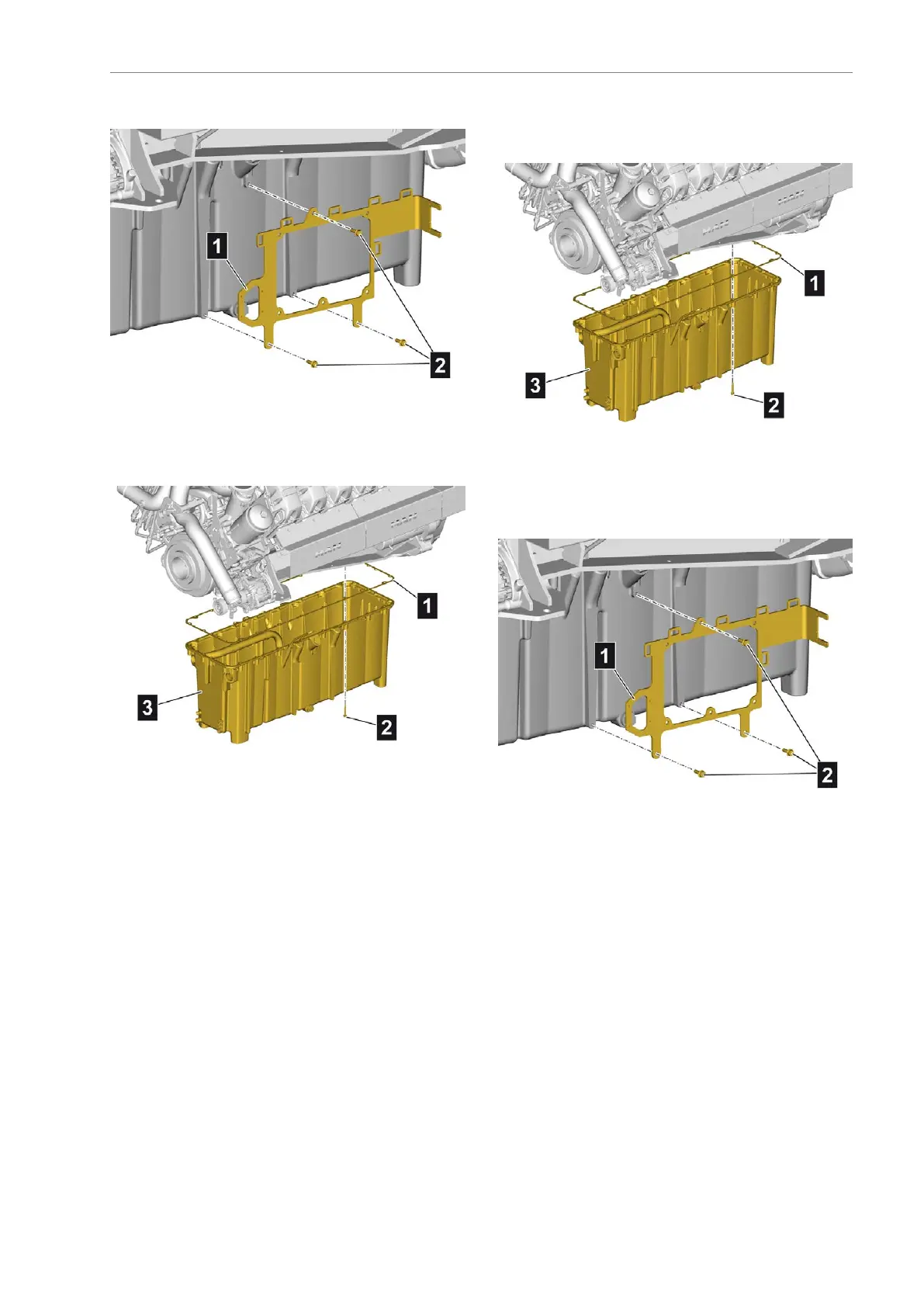

Detachingtheholderforthehousing
•Unscrewthemountingbolts(2)
•Removetheholder(1)
Removingtheoilsump
•Unscrewthemountingbolts(2)
•Removetheoilsump(3)withseal(1)
•Cleanthesealingsurfaces
Installingtheoilsump
Installingtheoilsump
•Cleanthesealingsurfaces
•Positiontheoilsump(3)withanewseal(1)
•Screwinandtightenthemountingbolts(2)
Attachingtheholderforthefusehousing
•Positiontheholder(1)
•Screwinandtightenthemountingbolts(2)
AE63stedition283
