ENGINELUBRICATION

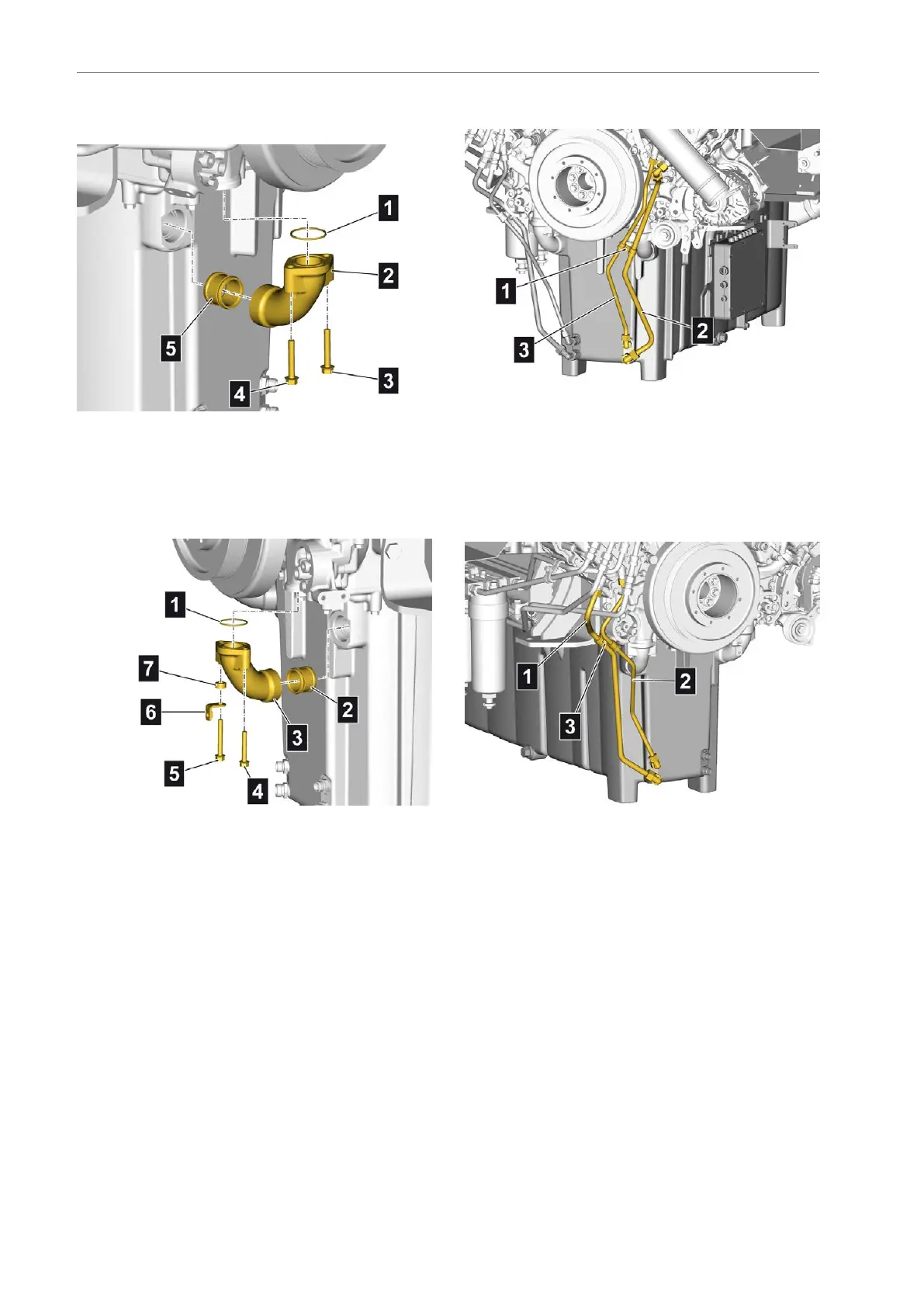

Attachingthemanifoldfortherightoilsuction
line
•Cleanthesealingsurfaces
•Insertthenewinsertpipe(5)
•Positionthemanifold(2)withanewO-ring(1)
•Screwinandtightenthemountingbolts(3)and(4)
Attachingthemanifoldfortheleftoilsuctionline
•Cleanthesealingsurfaces
•Insertthenewinsertpipe(2)
•Positionthemanifold(3)withanewO-ring(1)
•Screwinandtightenthemountingbolts(4)and
(5)withholder(6)andbush(7)asmarked
Attachingtheleftoilreturnline
•Positiontheoilreturnlines(2)and(3)sothatthey
arestrain-free
•Tightentheunionnutsfortheoilreturnlines(2)
and(3)
•Mountthefastening(1)
Attachingtherightoilreturnline
•Positiontheoilreturnlines(1)and(2)sothatthey
arestrain-free
•Tightentheunionnutsfortheoilreturnlines(1)
and(2)
•Mountthefastening(3)
