ENGINELUBRICATION

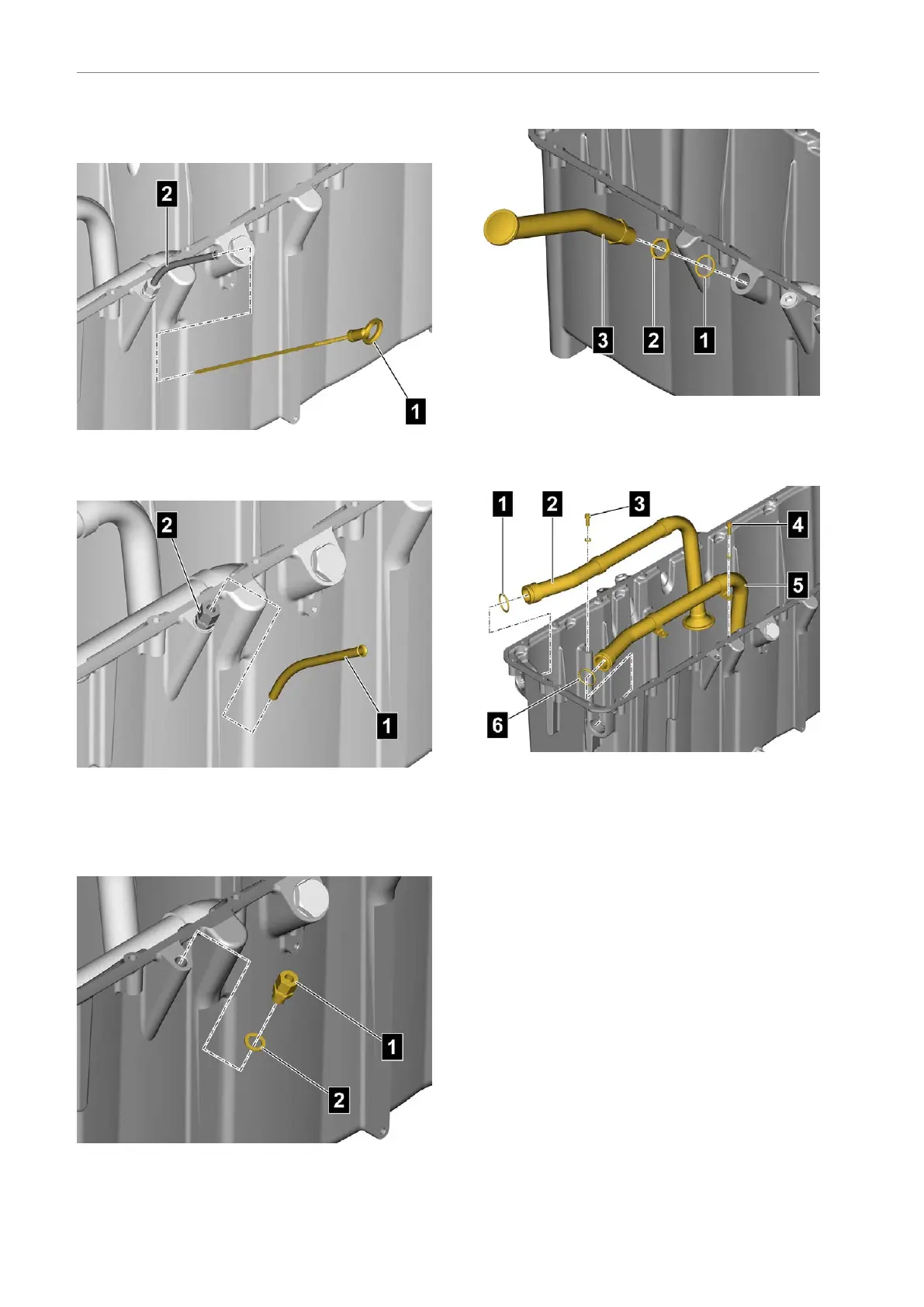

Dismantlingtheoilsump
Pulloutthedipstick
•Pullthedipstick(1)outoftheguidetube(2)
Pullingouttheguidetube
•Unscrewtheupperscrew(2)ontheconnecting
piece
•Pullouttheguidetube(1)
Removingtheconnectingpiece
•UnscrewtheConnectingpiece(1)withsealingring
(2)
Removingtheoilllerpipe
•Unscrewthemountingnut(2)
•Unscrewtheoilllerpipe(3)withsealingring(1)
Removingtheoilsuctionlines
•Unscrewthemountingbolts(3)and(4)with
washers
•Removetheoilsuctionlines(2)and(5)
•RemovetheO-rings(1)and(6)fromtheoilsuction
lines(2)and(5)
•Cleanthesealingsurfaces
