Man D2862 LE221 - Oil Pumps Procedures

ENGINELUBRICATION

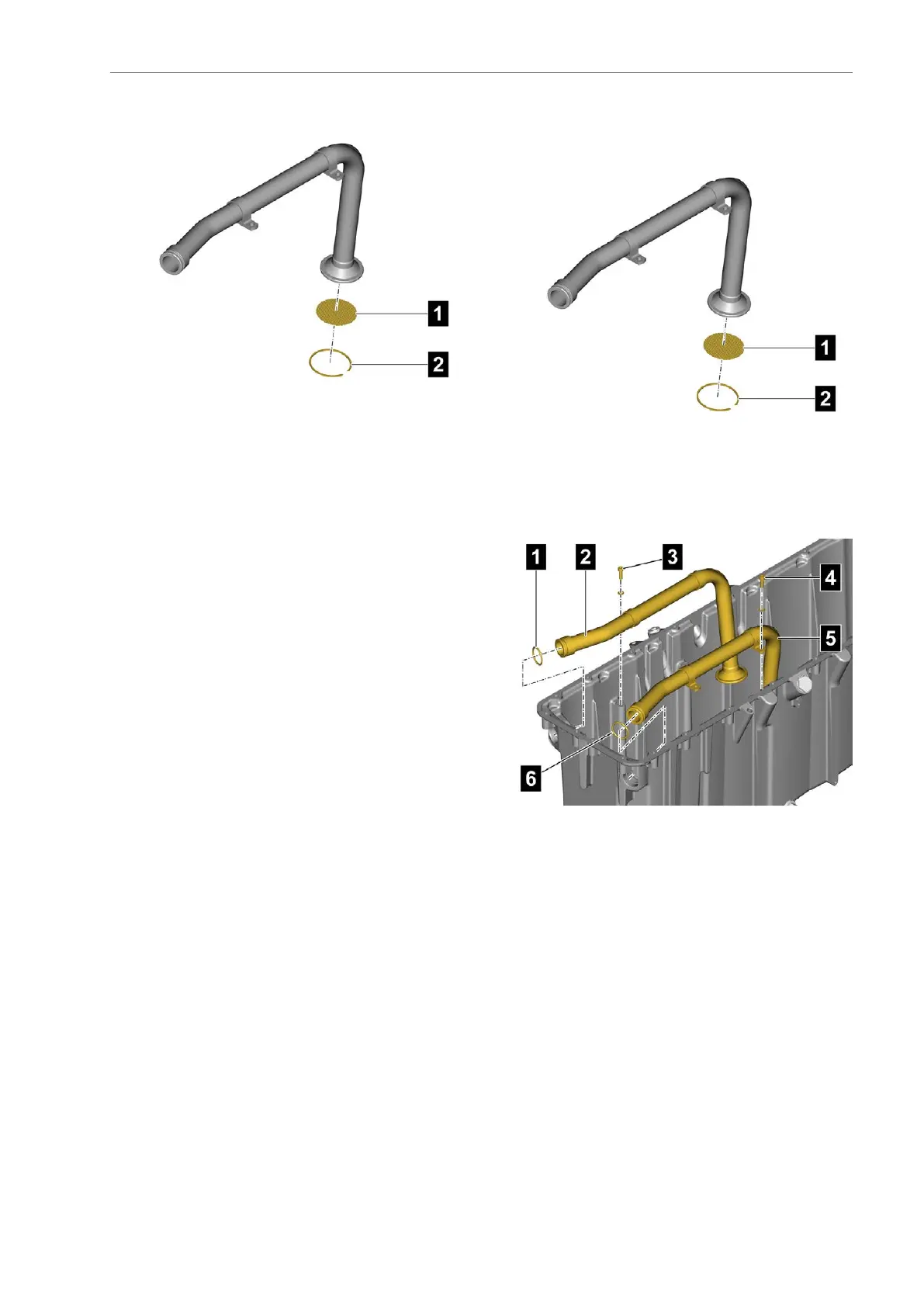

Dismantlingtheoilsuctionline
•Removethecirclip(2)
•Removethescreenplate(1)fromtheoilsuction
line
•Cleanthescreenplate(1)
Assemblingtheoilsump
Assemblingtheoilsuctionline
•Cleanthescreenplate(1)
•Insertthescreenplate(1)intotheoilsuctionline
•Installingthecirclip(2)
Installingoilsuctionlines
•Cleanthesealingsurfaces
•InsertnewO-rings(1)and(6)intooilsuctionlines
(2)and(5)
•Insertoilsuctionlines(2)and(5)uptothestop
•Fitmountingbolts(3)and(4)withwashers,screw
inandtighten
