ENGINEELECTRICS

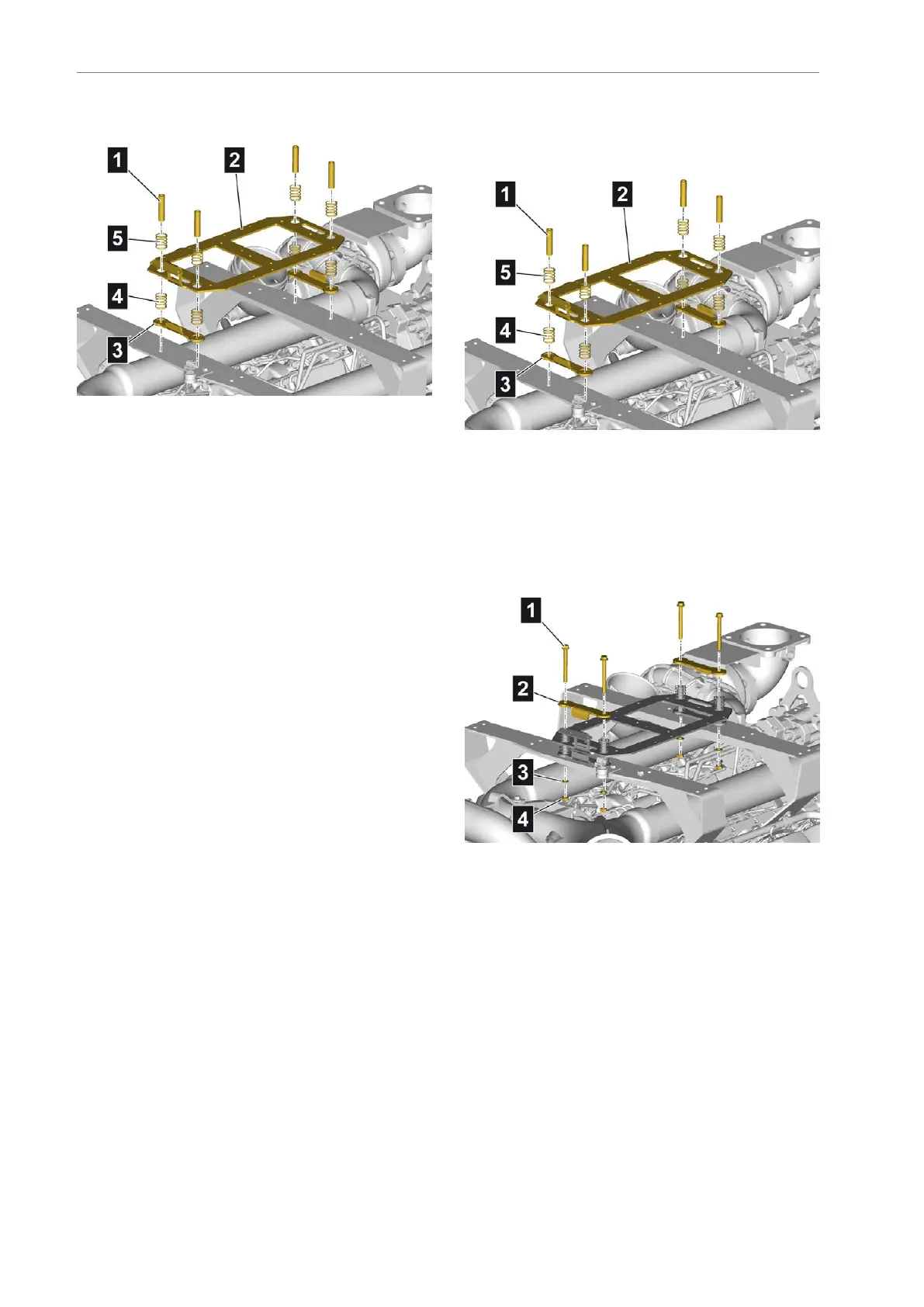

Detachingtheenginecontrolunitbracket
•Removethecompressionsprings(5)withspacer
bushes(1)
•Removethebracket(2)
•Removecompressionsprings(4)withstopfor
controlunitbracket(3)
Installingtheenginecontrolunits
Attachingtheenginecontrolunitbracket
•Positionthestopforcontrolunitbracket(3)with
compressionsprings(4)
•Positionthebracket(2)
•Positionthecompressionsprings(5)
•Insertthespacerbushes(1)
Attachingtheenginecontrolunitbracket
•Putonthestopforcontrolunitbracket(2)
•Insertthemountingbolts(1)
•Screwonthemountingnuts(4)withwashers(3)
andtightenthem
