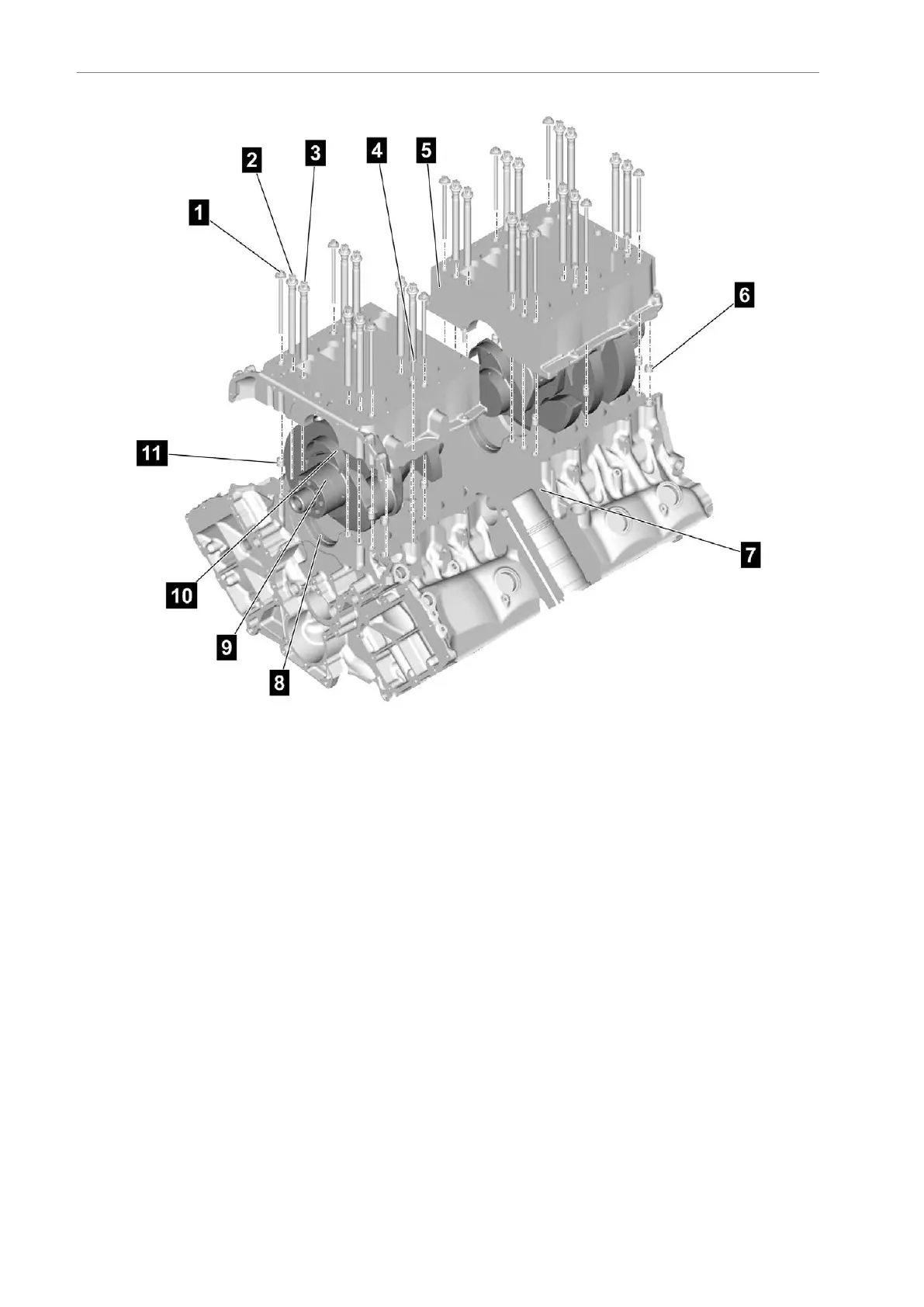

CRANKMECHANISM
(1)Mountingbolt,crankcaselowersection
(2)Mountingbolt,crankcaselowersection
(3)Mountingbolt,crankcaselowersection
(4)Mountingbolt,crankcaselowersection
(5)Crankcaselowersection
(6)Sleeve
(7)Crankcase
(8)Mainbearingshell,crankcase
(9)Crankshaft
(10)Mainbearingshell,crankcaselower
section
(11)Dowelbushing
Technicaldata
Mountingbolts,crankcaselowersection................M8x35-10.9.......................................................35Nm
Mountingbolts,crankcaselowersection................M8x50-10.9.......................................................35Nm
Mountingbolts,crankcaselowersection................M10x170-10.9....................................................65Nm
Mountingbolts,crankcaselowersection................M18x2x200...................................Initialtorque160Nm
Mountingbolts,crankcaselowersection...............M18x2x200......................................2ndtightening90°
Mountingbolts,crankcaselowersection................M18x2x200.......................................3rdtightening90°
Crankshafttechnicaldata
Crankshaftaxialplay....................................................................................................0.200–0.401mm
Crankshaftradialplay...................................................................................................0.060–0.128mm
Crankshaftdimensions
Crankshaftjournal,normaldimension..................................................................Ø111.966–111.988mm
Connectingrodbearingjournaldimensions
Connectingrodbearingjournal,normaldimension..................................................Ø95.966–95.988mm
Glycomainbearingdimensions
MainbearingØ,normaldimension.........................................................................112.036–112.126mm
334AE63stedition
