CRANKCASE
Detachingthecover

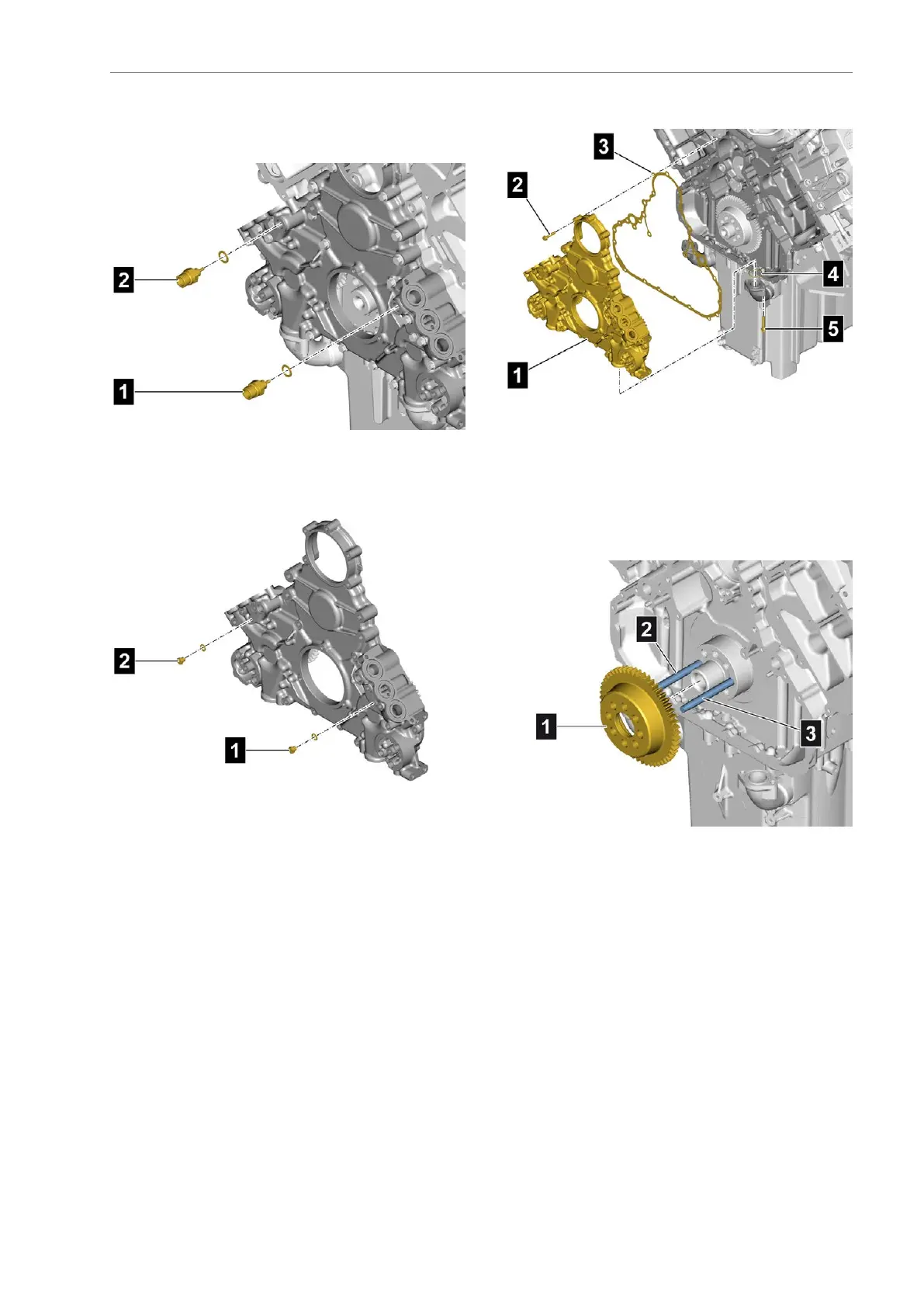

Removingcoolanttemperaturesensors
•Unscrewthecoolanttemperaturesensors(1)and
(2)withsealingrings
Removalinstructionsforcover
•Toremovethecover,donotunscrewmounting
bolts(1)and(2)
Detachingthecover
•Marktheinstallationpositionofthemounting
bolts(2)and(5)
•Unscrewthemountingbolts(2)and(5)
•Removethecover(1)withtheseal(3)andO-rings
(4)
•Cleanthesealingsurfaces
Removingtheoilpumpcrankshaftgear
•Pulloffthecrankshaftgear(1)overtheAligning
tool[167](2)and(3)
•Cleanthecontactsurfacesofthecrankshaftgear
(1)andcrankshaft
