CRANKCASE
Installingtheywheelhousing

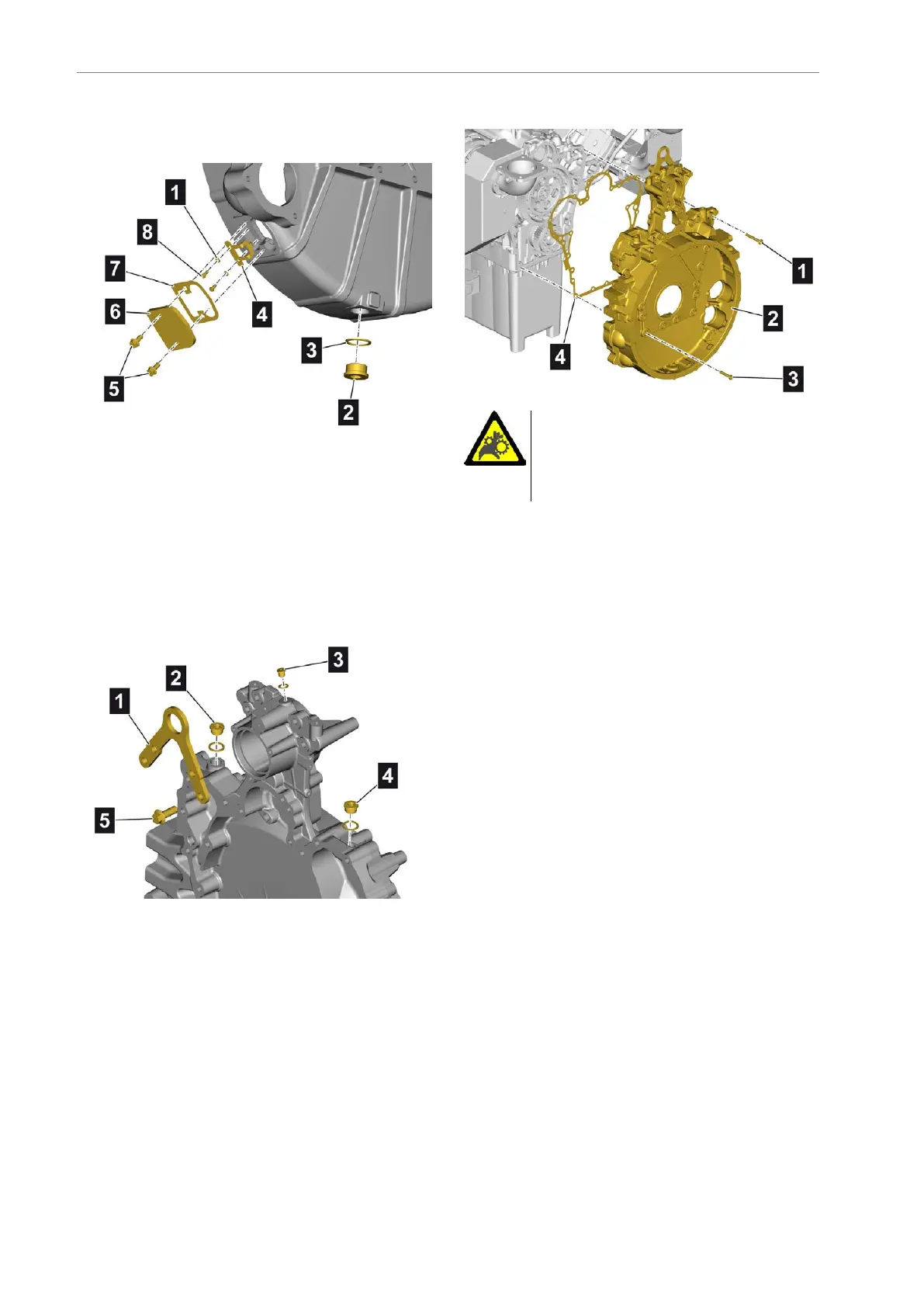

Assemblingtheywheelhousing
•Cleanthesealingsurfaces
•Positiontheadjustingplate(4)
•Screwinthemountingbolts(8)withwashers(1)
andtighten
•Positionanewseal(7)withcover(6)
•Screwinandtightenthemountingbolts(5)
•Screwinthescrewplug(2)withanewsealingring
(3)andtightento240Nm
Assemblingtheywheelhousing
•Cleanthesealingsurfaces
•Fitscrewplugs(2),(3)and(4)withnewsealing
ringsandtighten
•Positionthecranehook(1)
•Screwinandtightenthemountingbolts(5)
Mountingtheywheelhousing
CAUTION
Dangerofinjuryduetoheavy
components
•Useliftinggeartoinstalltheywheel
housing
•Cleanthesealingsurfaces
•Positiontheywheelhousing(2)withanewseal
(4)
•Screwinthemountingbolts(1)and(3)asmarked
andthentightenthemuntilnger-tight
•Tightenthemountingbolts(1)and(3),working
crosswise
366AE63stedition
