Man D2862 LE221 User Manual

TECHNICAL DATA
382
AE6 Stage 2 2st edition
Cylinder head
Cylinder head bolts M18x2x246-10.9 initial torque 50 Nm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder head bolts M18x2x246-10.9 2nd torque 150 Nm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder head bolts M18x2x246-10.9 3rd torque 300 Nm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder head bolts M18x2x246-10.9 4th torque 90°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder head bolts M18x2x246-10.9 5th torque 90°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cylinder head bolts M18x2x246-10.9 final torque 90°. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

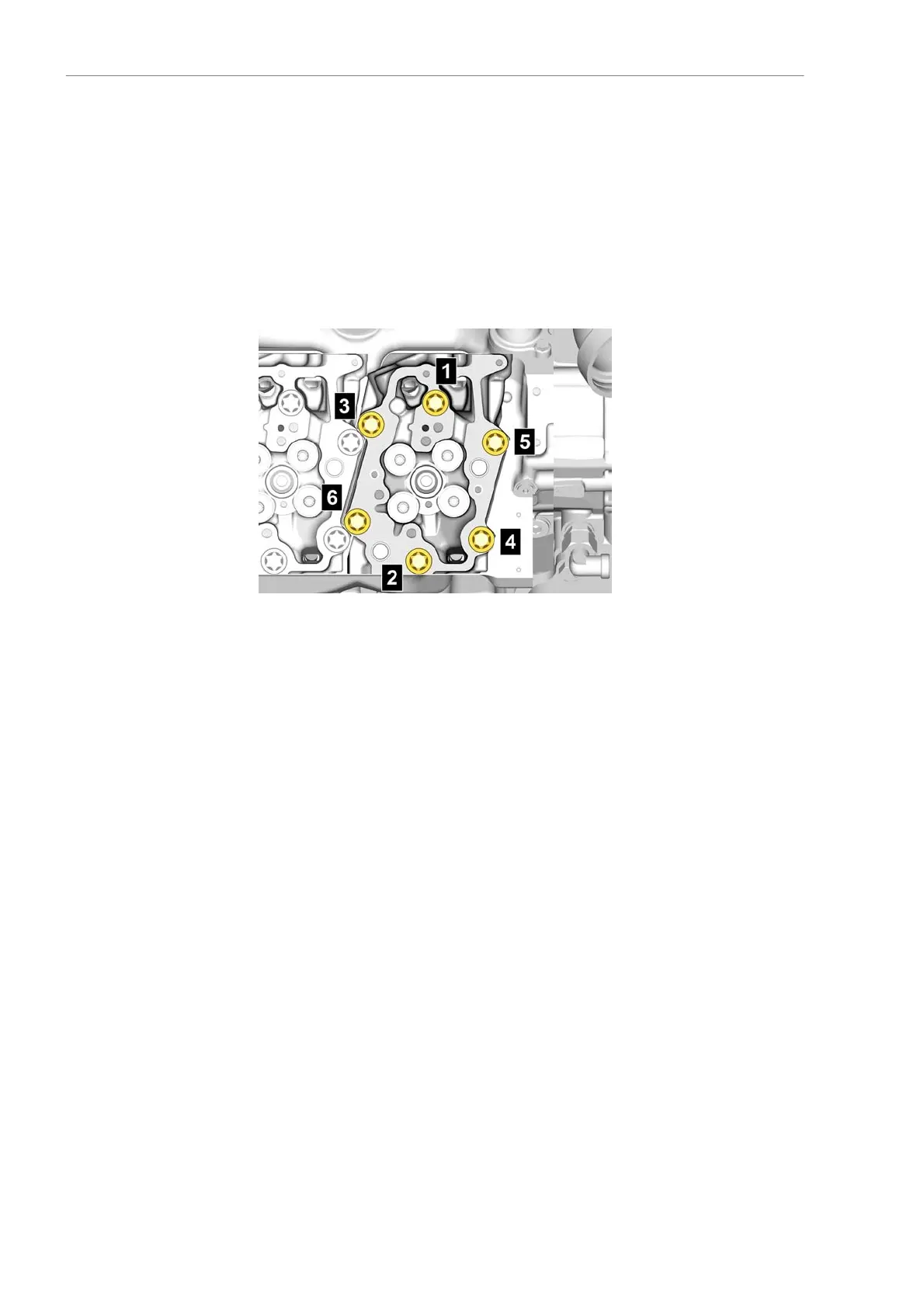

Cylinder head tightening diagram
Observe the tightening sequence for the mounting bolts
Checking and adjusting the valve/valves
Lock nut, rocker arm adjusting screw 45 Nm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Valve timing
Camshaft
Anti-rotation device 22 Nm. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Man D2862 LE221 Specifications

General

Brand	Man
Model	D2862 LE221
Category	Engine
Language	English
