COOLINGSYSTEM

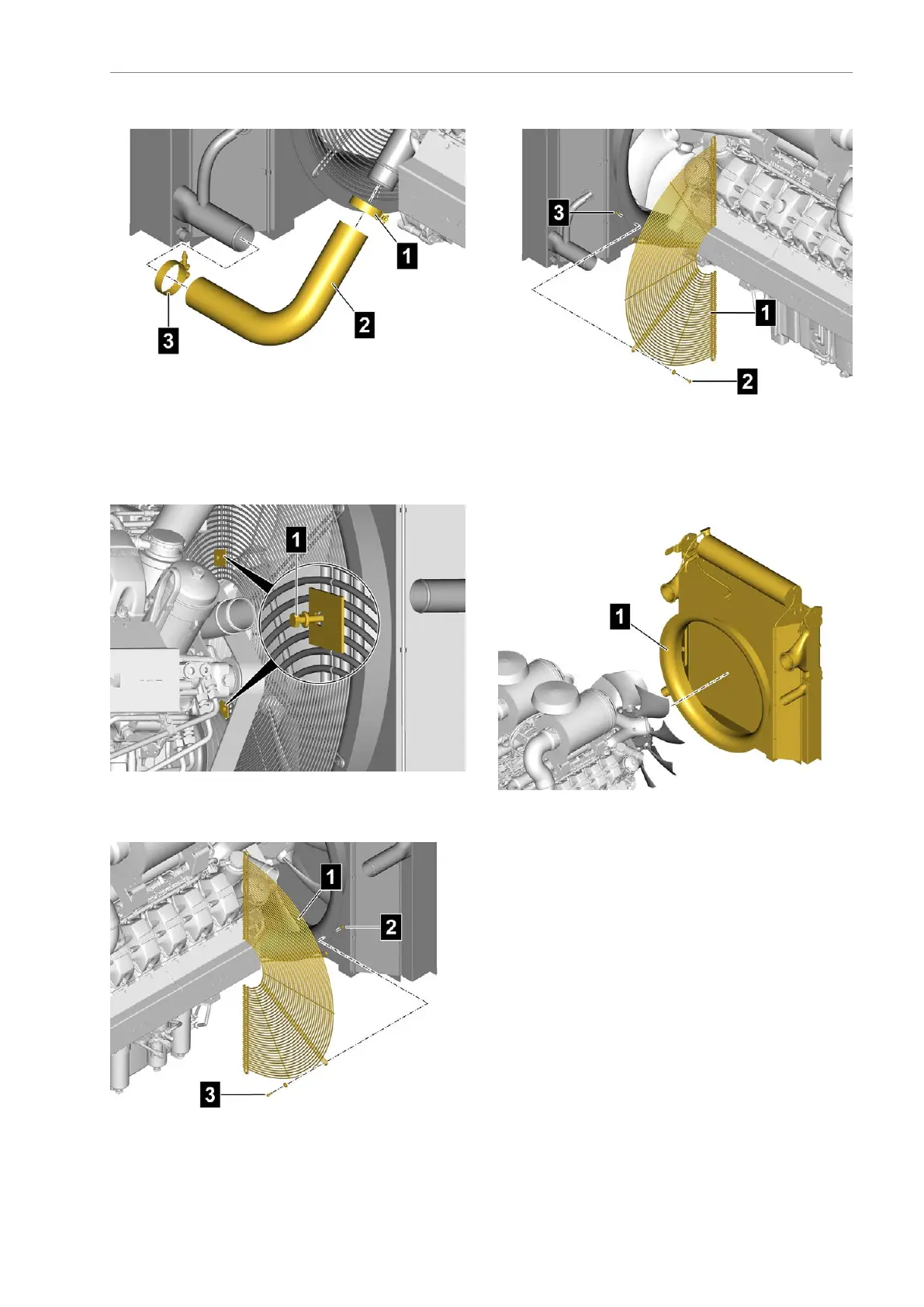

Detachingtheleftmouldedhose
•Unfastenhoseclamps(1)and(3)
•Removethemouldedhose(2)withhoseclamps
(1)and(3)
Detachingtheprotectivegrilleholder
•Unscrewthemountingbolts(1)
Detachingtherightprotectivegrille
•Unscrewthemountingnuts(2)
•Pulloutthemountingbolts(3)andremovewith
washers
•Removetheprotectivegrille(1)
Detachingtheleftprotectivegrille
•Unscrewthemountingnuts(3)
•Pulloutthemountingbolts(2)andremovewith
washers
•Removetheprotectivegrille(1)
Detachingthecoolingsystem
•Disconnectthecoolingsystem(1)fromtheengine
