Man D2862 LE221 - Fan Tensioning Pulley Removal and Installation

ADD-ONUNITS

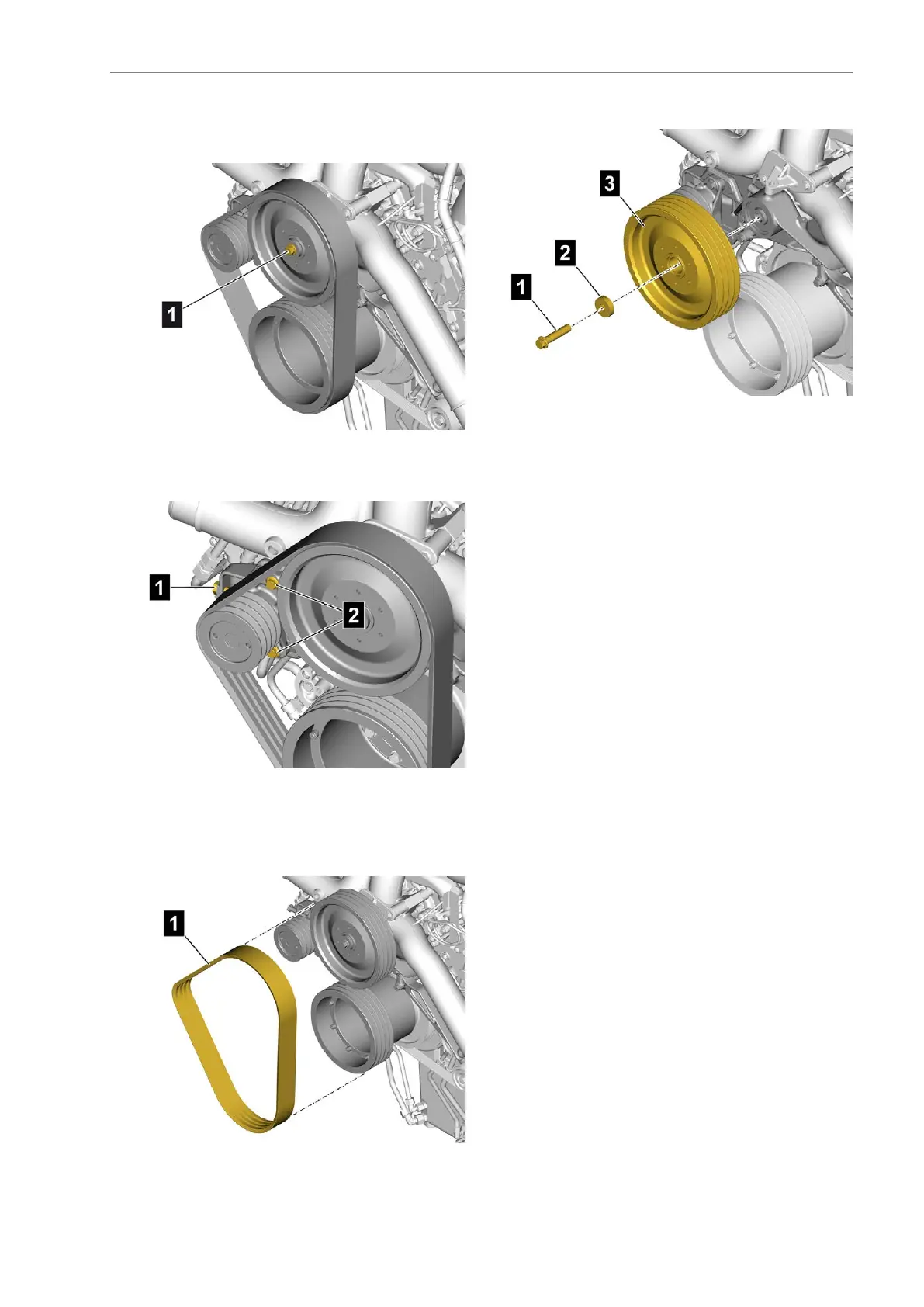

Removingthefanpoly-V-belt
Unscrewingthemountingbolt
•Unscrewthemountingbolt(1)
Detachingthepoly-V-beltfan
•Unscrewthemountingbolts(2)
•Unscrewthemountingbolt(1)andcarefully
slackenthepoly-V-belttensioner
Detachingthepoly-V-beltfan
•Removethepoly-V-belt(1)
Detachingthepoly-V-beltpulley
•Unscrewthemountingbolt(1)andremovewith
thewasher(2)
•Removethepoly-V-beltpulley(3)
AE63stedition87
