ADD-ONUNITS

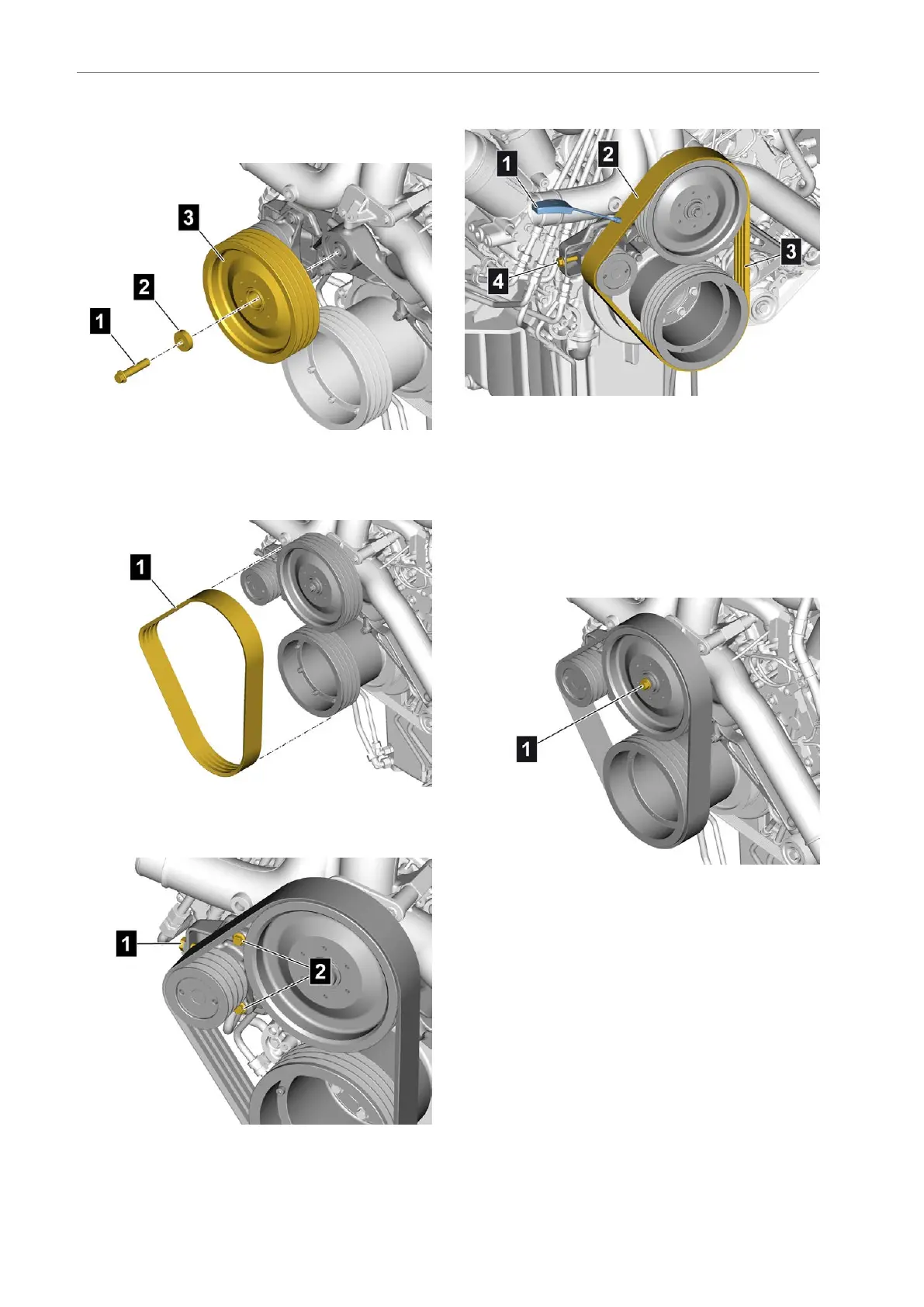

Installingthepoly-V-belt
Attachingthepoly-V-beltpulley
•Positionthepoly-V-beltpulley(3)
•Screwinthemountingbolt(1)withwasher(2)
Attachingthepoly-V-belt
•Fitthepoly-V-belt(1)
Attachingthepoly-V-belt
•Screwinthemountingbolt(1)andtightento20
Nm
•Tightenthemountingbolts(2)
Checkingthepoly-V-belttension
•CheckthebelttensionwithFrequencymeasuring
instrument[5](1)
•Checkthebelttensionofsection1(3),value225
Hz
•Checkthebelttensionofsection2(2),value220
Hz
Ifthepoly-V-belttensionvaluedeviates,retension
thepoly-V-beltatthemountingbolt(4)
Tighteningthemountingbolt
•Tightenthemountingbolt(1)to117Nm
