M&R Companies 440 Medinah Rd. Roselle, IL 60172 USA 47
Tel: +630-858-6101 Fax: +630-858-6134 www.mrprint.com | store.mrprint.com

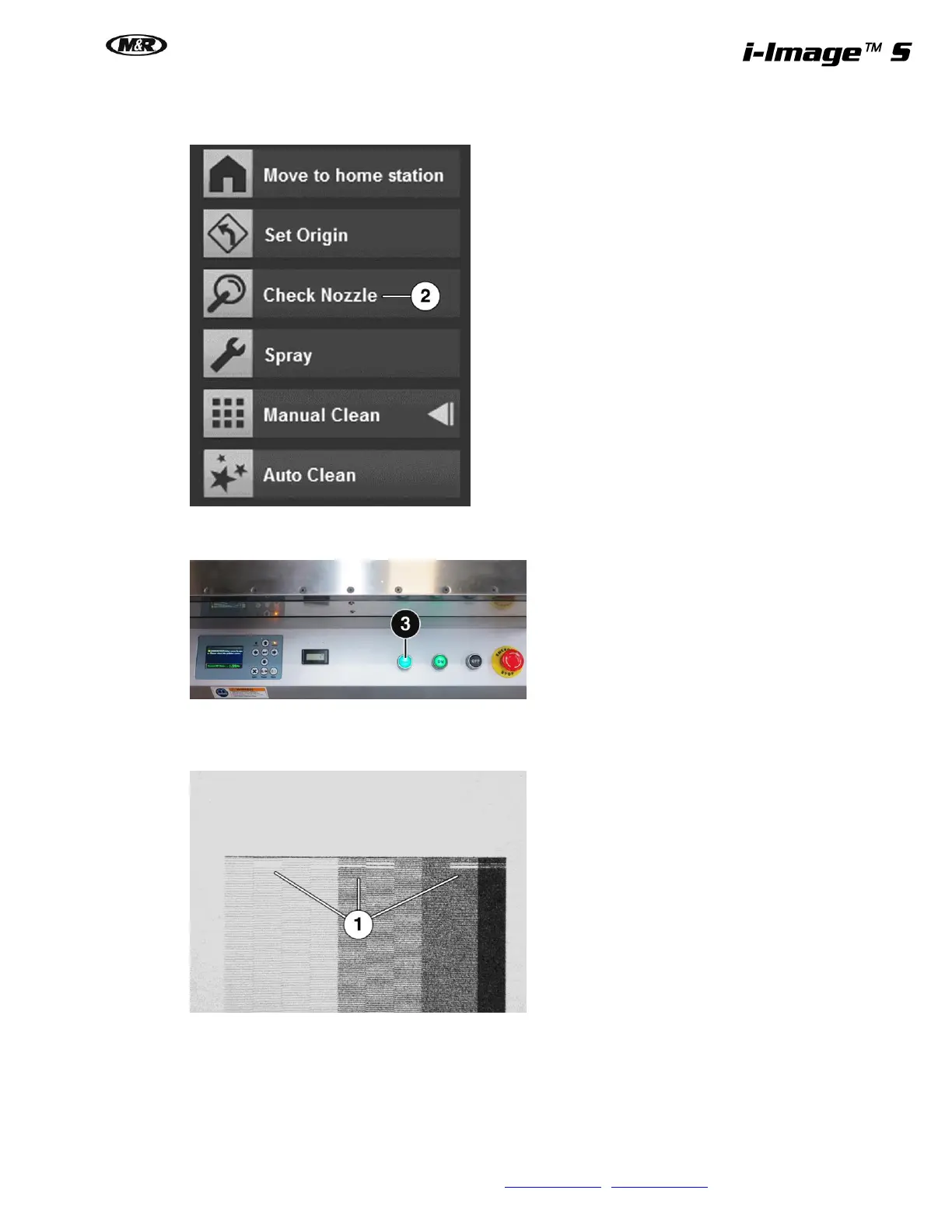

3. Select the Check Nozzle box (2) in the right hand menu bar of the PCS Program. The screen displays
Waiting for print allow.
4. Press the Print button (3) on the control panel or Print Screen. The gantry travels to the print start
position, prints one nozzle check and automatically sends the gantry to the load position.
5. Inspect the nozzle check printout. There are some small portions missing on the top of the printout (1).
Small areas like this are often caused by small air pockets of bubbles in the printhead. Running an Auto
Clean usually clears the air out and restores the print to 100%.
