LOWERING THE STABILIZERS WITH BOOM UP (UNLADEN AND LADEN)
IMPORTANT
This operation must be exceptional and performed with great care.
- Raise the boom and retract the telescopes completely.
- Set the machine in position in front of the elevation (fig. G2), moving very slowly
and carefully.
- Apply the parking brake and place the forward/reverse selector in neutral.
- Move the stabilizers very slowly and gradually as soon as they are close to the
ground or in contact with it.
- Lower the two stabilizers and lift the two front wheels of the machine (fig. G3).
During this operation, transverse attitude must be permanently maintained: the
bubble in the level must be kept between the two lines.
RAISING THE STABILIZERS WITH THE BOOM UP (UNLADEN AND LADEN)
IMPORTANT
This operation must be exceptional and performed with great care.
- Keep the boom up and retract the telescopes completely (fig. G3).
- Move the stabilizers very slowly and gradually as soon as they are in contact with
the ground and when they leave the ground. During this operation, transverse
attitude must be permanently maintained: the bubble in the level must be kept
between the two lines
- Raise both stabilizers completely.
- Release the parking brake and reverse the machine (1) very slowly and carefully to
release it and lower the forks (2) into transport position (fig. G4).
LOWERING THE STABILIZERS WITH FORKS IN TRANSPORT POSITION (UNLADEN AND
LADEN)
- Set the forks in transport position in front of the elevation.
- Stay far enough away to have room for the boom to be raised.
- Apply the parking brake and place the forward/reverse selector in neutral.
- Set the two stabilizers on the ground and lift the two front wheels of the machine
(fig. G1), while maintaining its transverse stability.
RAISING THE STABILIZERS WITH THE FORKS IN TRANSPORT POSITION (UNLADEN AND
LADEN)
- Raise both stabilizers fully and at the same time.

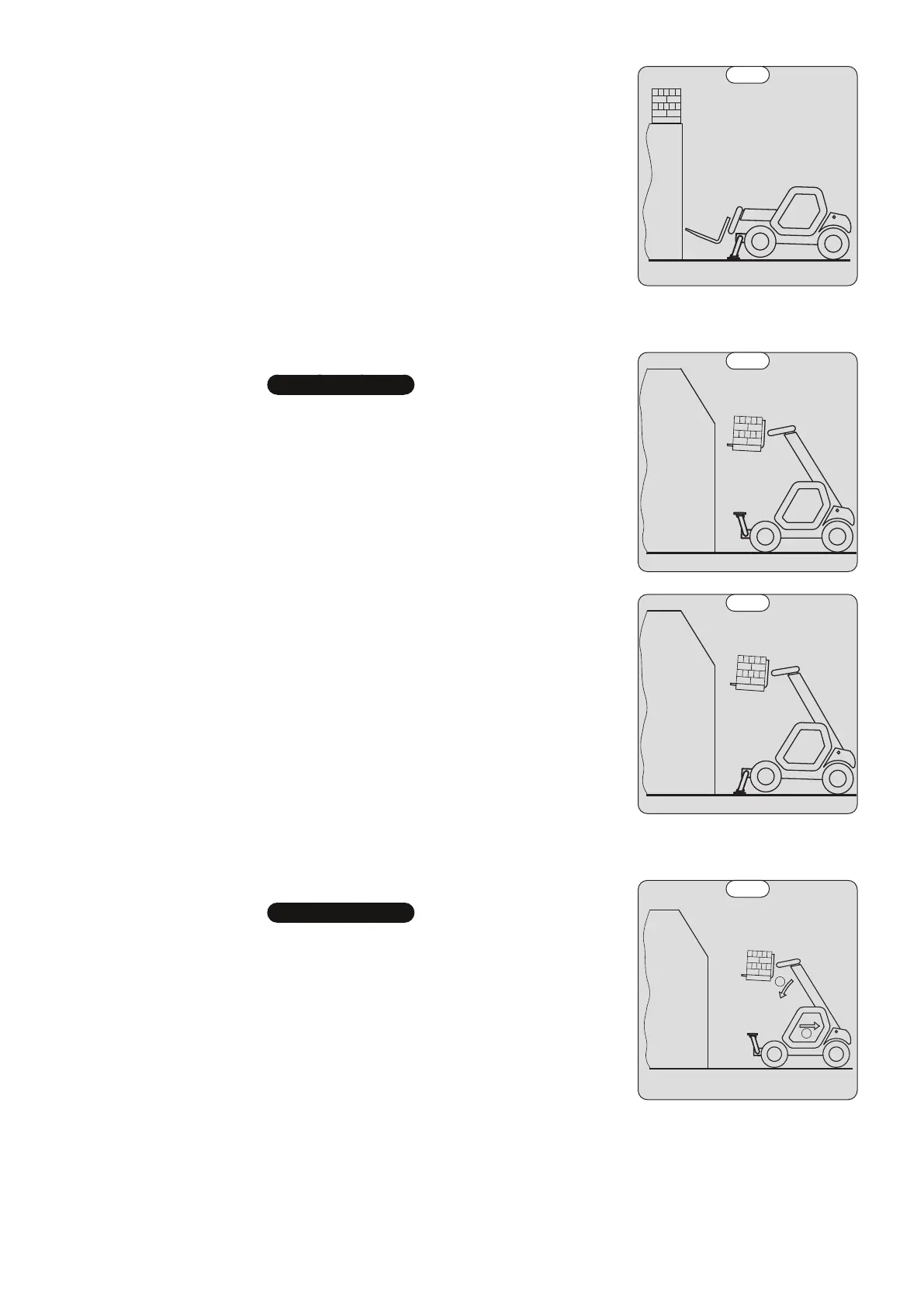

G1
G2
G3
1
2
G4
