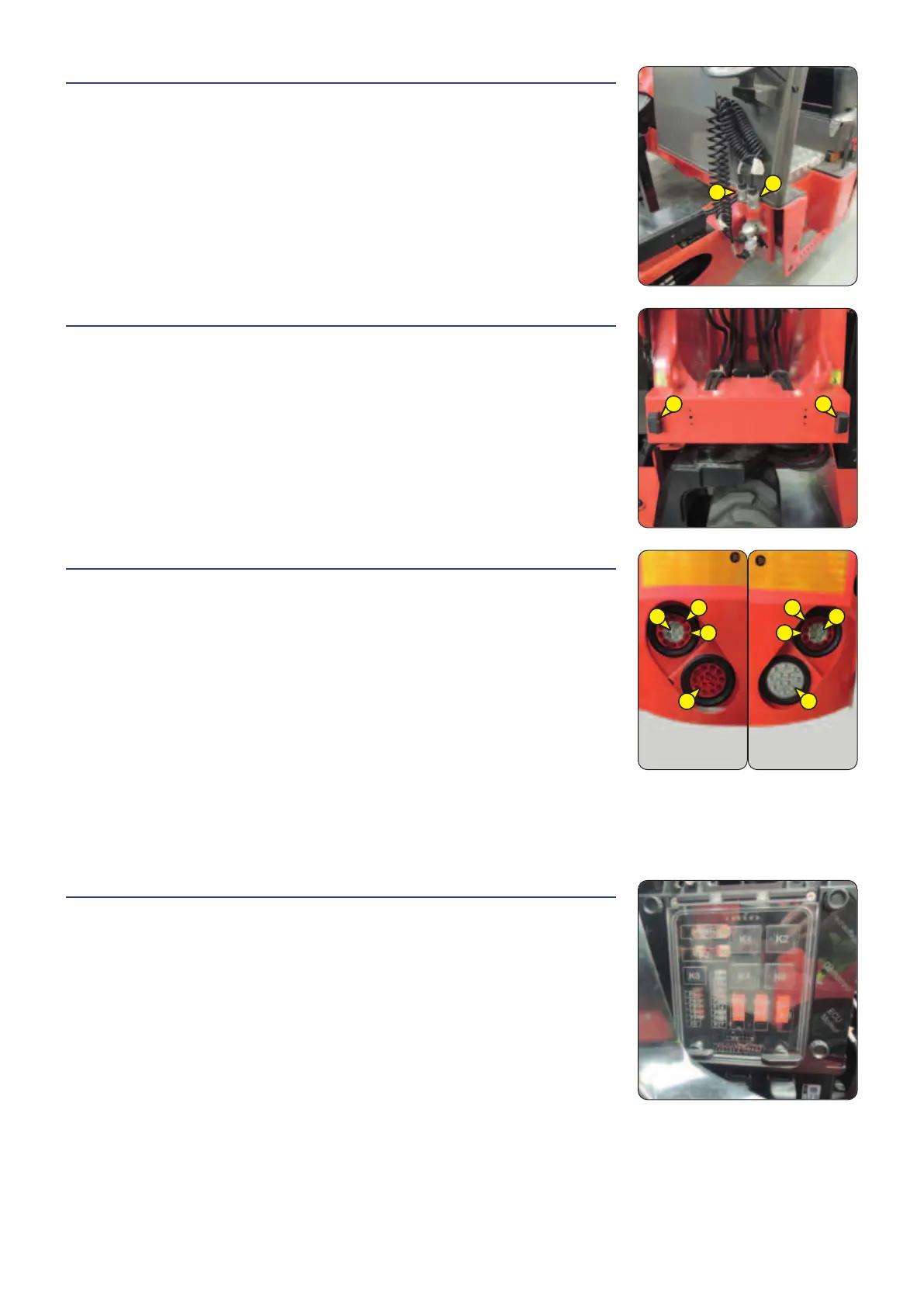

19 - TRAILER SOCKETS
The two sockets are to be connected to the truck or trailer when transporting the machine.
NOTE: As an OPTION, an adapter is available (
-DESCRIPTION (OPTION)-15-PIN
TRUCK SOCKET).
20 - NUMBER PLATE LIGHT
Work only in transport position at the rear of the truck or trailer.
21 - REAR TRAILER LIGHTS
The rear lights only work in the transport position at the rear of the truck or trailer.
A - Rear left-hand turn signal
B - Rear left-hand stop light
C - Rear left-hand sidelight
D - Rear fog light
E - Reversing light
F - Rear right-hand sidelight
G - Rear right-hand stop light
H - Rear right-hand turn signal
NOTE: Depending on the rules of the road, the fog light and the reversing light can
be reversed.
22 - FUSES AND RELAYS
For replacement of a faulty fuse (3-MAINTENANCE: OCCASIONAL MAINTENANCE).
