24 - ROAD LIGHTS

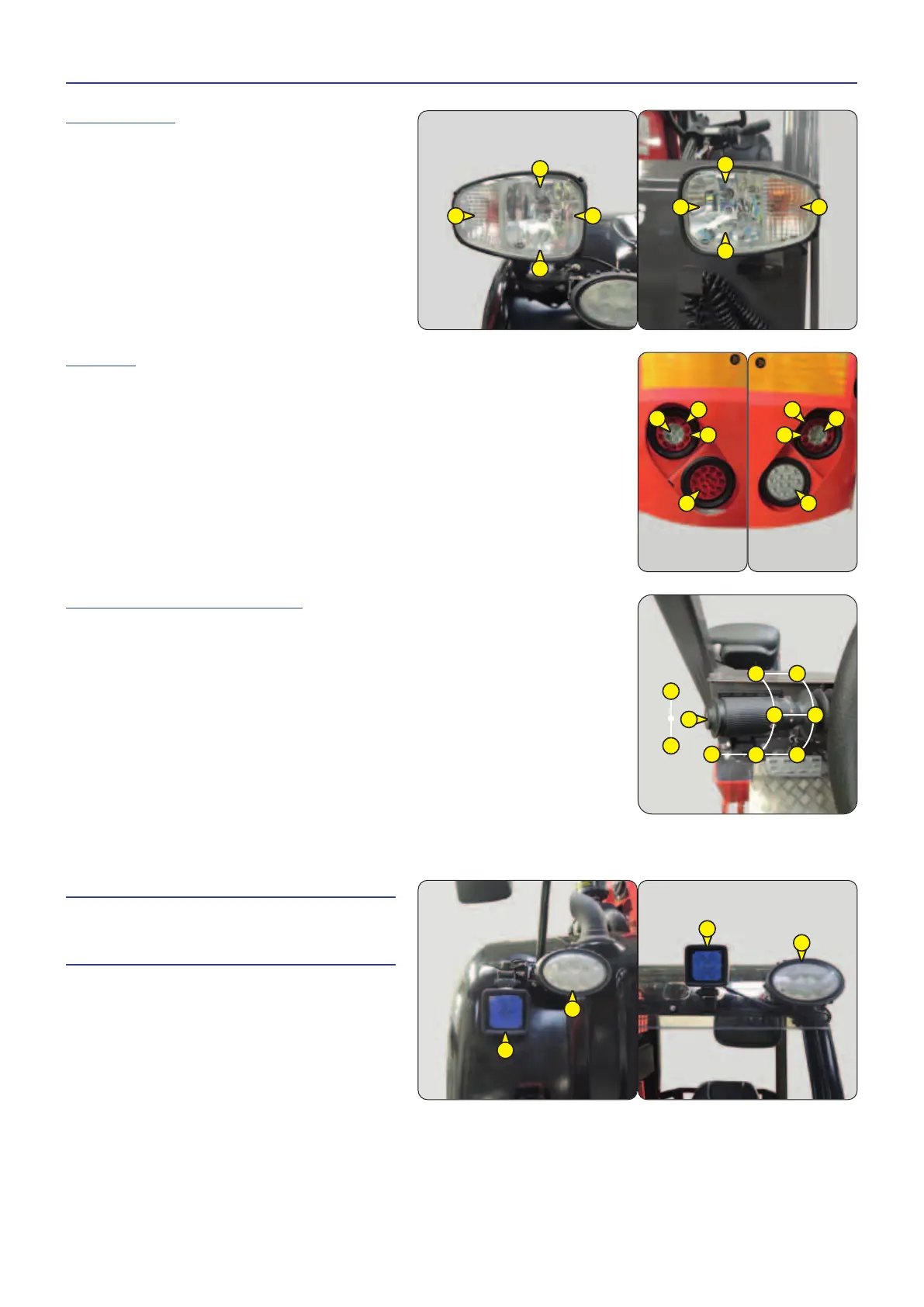

FRONT HEADLIGHTS
A - Front left-hand turn signal
B - Front left-hand dipped headlight
C - Front left-hand main beam headlight
D - Front left-hand sidelight
E - Front right-hand turn signal
F - Front right-hand dipped headlight
G - Front right-hand main beam headlight
H - Front right-hand sidelight
REAR LIGHTS
I - Rear left-hand turn signal
J - Rear left-hand stop light
K - Rear left-hand sidelight
L - Rear fog light
M - Reversing light
N - Rear right-hand sidelight
O - Rear right-hand stop light
P - Rear right-hand turn signal
NOTE: Depending on the rules of the road, the fog light and the reversing light can
be reversed.
LIGHTING, HORN AND TURN SIGNAL SWITCH
The switch controls the visual and audible signals.
A - Lights off
B - Sidelights
C - Dipped beam headlights and rear lights
D - Main beam headlights and rear lights
E - Headlight signaling.
F - Right turn signals
G - Left turn signals
H - Horn
25 - FRONT WORKLIGHTS
Except for TMT 27 P K ST5 S1 (Standard)
26 - BLUE LED HEADLIGHTS
Except for TMT 27 P K ST5 S1 (Standard)
NOTE: This option is specific to poultry collection.
2 - 45
B
D
C A
F
G
E H
L
O
I
M
J
P
NK
25
26
26
25
D
EB
EA
EC
F
G
H
