37 - FOLDING LOAD CARRIER TMT ... 4W

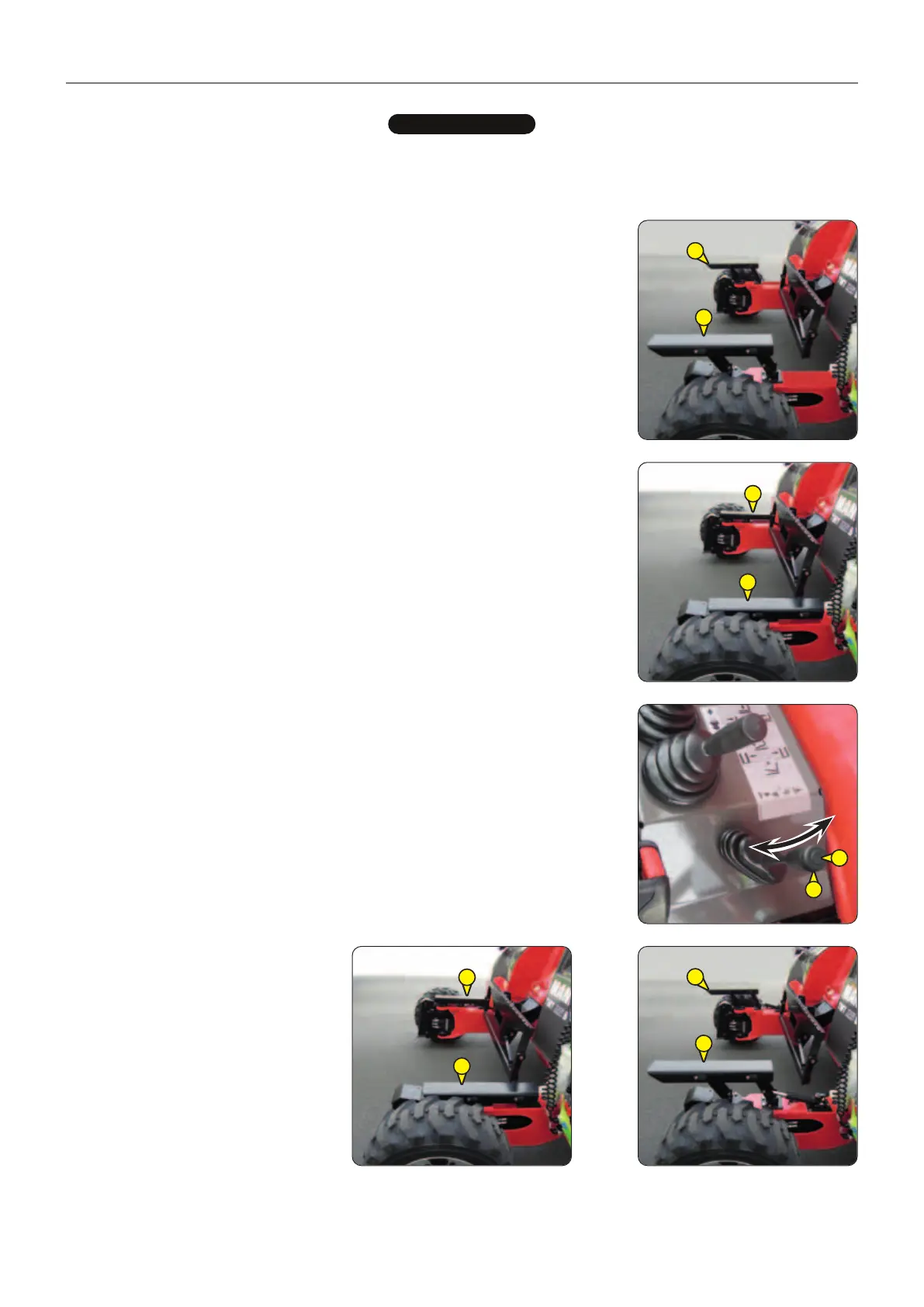

The load carrier allows a load to be set down on the folding arms in order to stabilize it while the machine is moving.

IMPORTANT

The load carrier arms must be in the folded-down position (position B) when attaching the machine to the rear of the truck or trailer.
MANUAL OPERATION
RAISING THE LOAD CARRIER ARMS (position A)
- Manually raise the load carrier arms.
- Lock the load carrier arms in position.
LOWERING THE LOAD CARRIER ARMS (position B)
- Unlock the load carrier arms.
- Manually lower the load carrier arms.
HYDRAULIC OPERATION
RAISING THE LOAD CARRIER ARMS (position A)
- Push down on button 1 and push lever 2 to the right to raise the arms of the load
carrier.
LOWERING THE LOAD CARRIER ARMS (position B)
- Push down on button 1 and pull lever 2 to the left to lower the load carrier arms.
2 - 48
A
A
B
B
A
A
B
B
1
2
647866 M1 (A012021) TMT ... K ST5 S1
