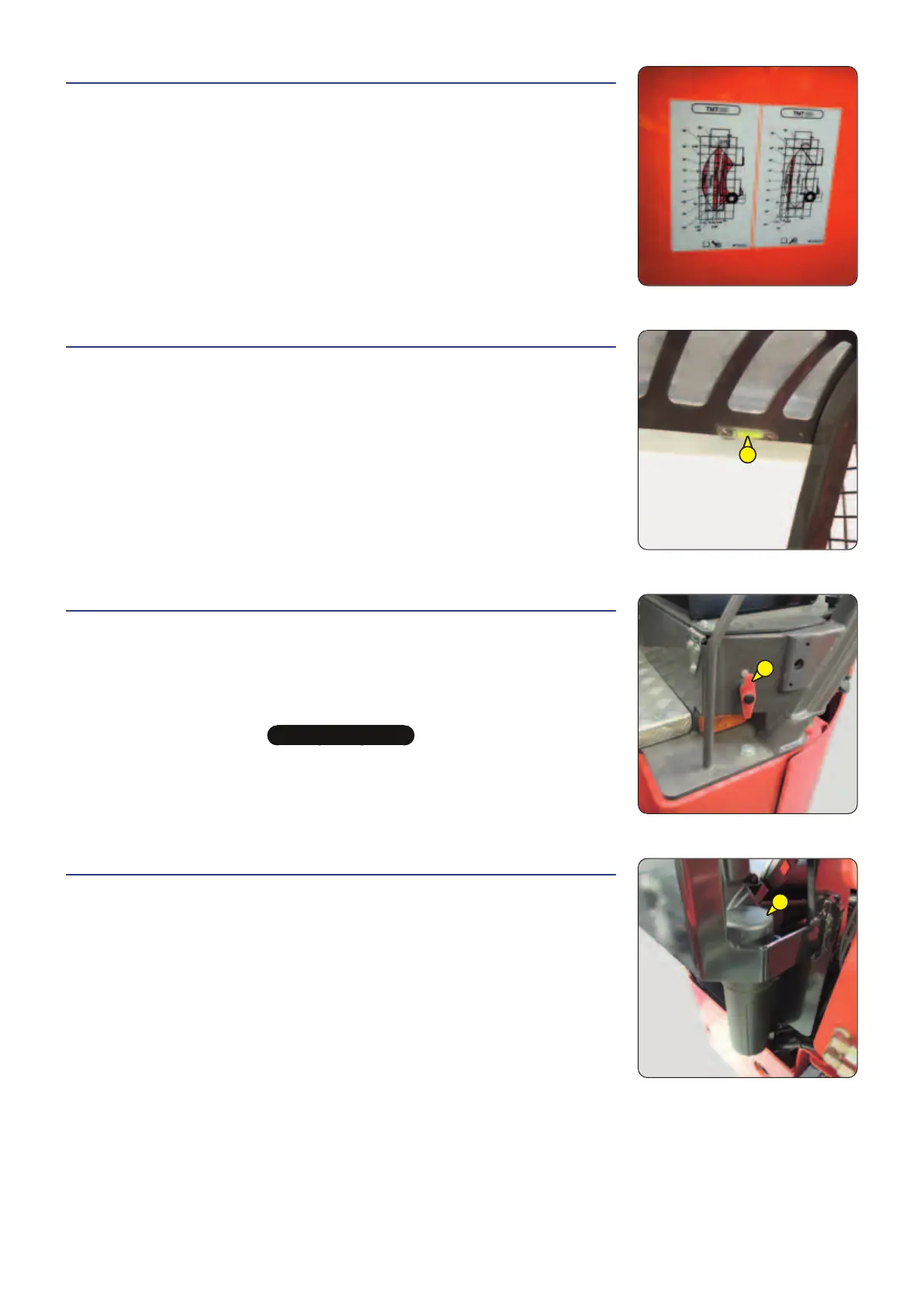

16 - LEVEL INDICATOR
This indicator is used to check whether the machine is horizontal.
The bubble must be between the 2 lines.
17 - BATTERY CUT-OFF
This switch enables the battery to be rapidly cut off from the electric circuit in the event
of a short circuit or a fire.
NOTE: When the operator stops the machine, the screen remains on while the
information is saved. This save phase is essential for correct operation of the
machine. The power supply must not be turned off during this sequence.
IMPORTANT
Any sudden disconnection of the battery power supply risks corrupting the saving of data and will result in settings being
lost.
15 - LOAD CHARTS
For your safety, and before handling any load, consult the load charts provided in the
driver's cab.
18 - DOCUMENT HOLDER
- Unscrew plug1.
- Make sure that the operator’s manual is in the document holder.
2 - 42
1
647866 M1 (A012021)
TMT ... K ST5 S1
