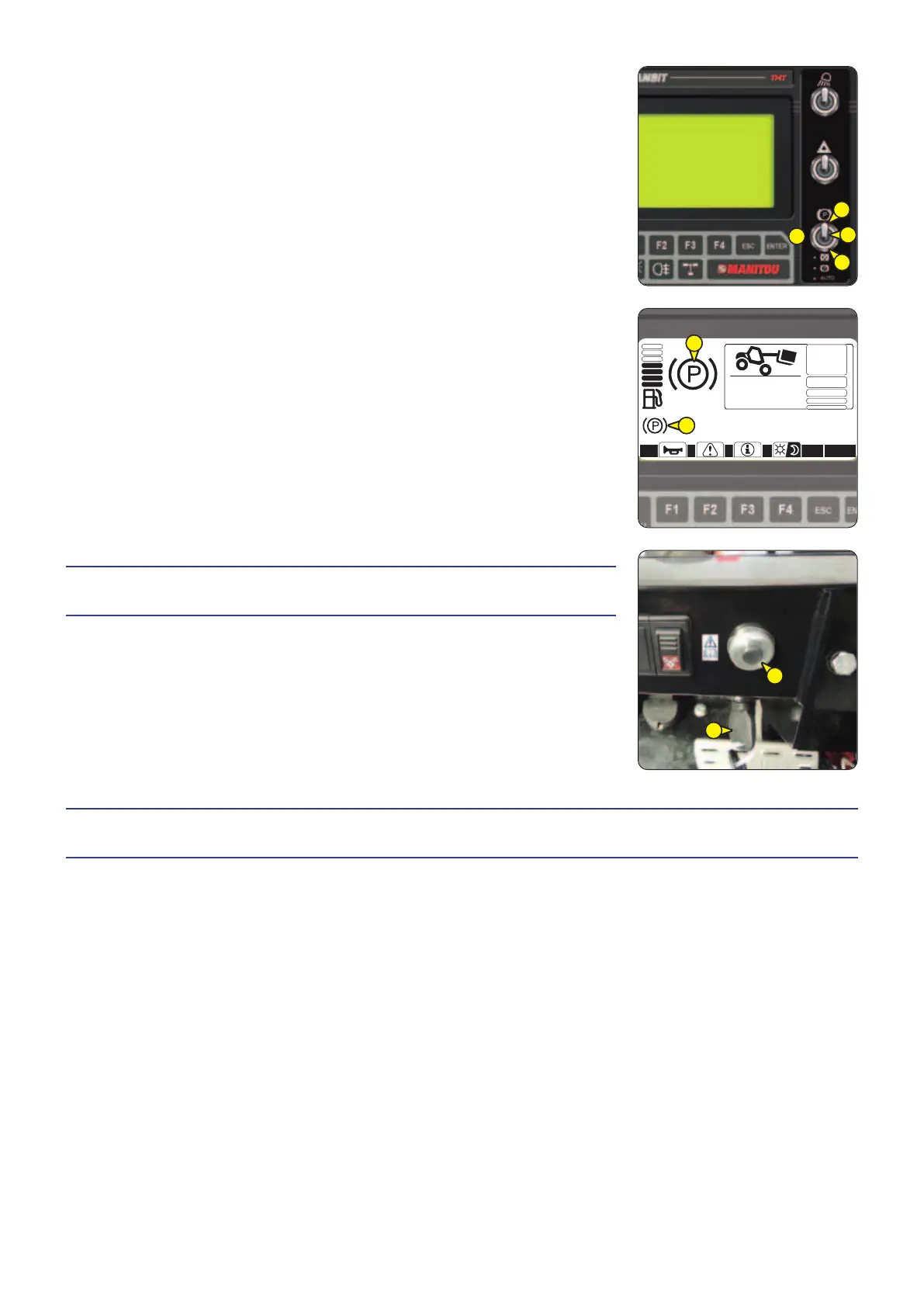

D- PARKING BRAKE
• Position D1: OFF, parking brake released
• Position D2: ON, parking brake applied
• Position D3: AUTO parking brake automatically managed according to the
engine speed (*)
(*)The brake is automatically released if the following conditions are met:
• The engine is started and,
• The forward/reverse selector is in the "forward" or "reverse" position and,
• The engine speed is above 1,200rpm.
(*)
The brake is automatically applied (after a time delay) if one of the following conditions
applies:
• The forward/reverse selector is in the "Neutral" position.
• The engine speed is below 1,200rpm.
The symbol D4 is displayed when the parking brake is applied.
The warning D5 is displayed when the ’parking brake is applied manually and the
operator attempts to drive off.
8 - HORN
9 - IGNITION SWITCH
This switch has 4 positions:
• P-Ignition off, parking position.
• O-Ignition cut-off and engine stop.
• I-Ignition.
• II-Starting and return to position "I" as soon as the key is released.
10 - ACCELERATOR PEDAL
11 - SERVICE BRAKE PEDAL AND TRANSMISSION CUT-OFF
The pedal acts on the front or rear wheels (depending on model) by means of a hydraulic brake system, and allows the machine
to be slowed down and stopped.
This allows the transmission to be gradually cut off during the free travel range to enable a gradual approach (delicate
handling) with full engine power.
By pushing down harder on the pedal (fully depressed), the braking system is activated to bring the machine to a complete
standstill.
2 - 39
2
3
D2
D1
D3
D
11:02
D5
D4
647866 M1 (A012021)
TMT ... K ST5 S1
