7 - SWITCHES
A-DISABLING "AGGRAVATING" HYDRAULIC MOVEMENT CUT-OFF
The machine is equipped with a safety device that automatically stops dangerous
movements of the boom when close to the limit of longitudinal stability.
"Aggravating" hydraulic movement cut-off is automatically enabled when the machine
is started up.
The operator can override this safety system, but only in certain cases:
• To get out of a difficult situation.
• For raising or lowering the machine from the back of the truck or a trailer
(
PROCEDURE FOR ATTACHING THE MACHINE TO THE REAR OF A TRUCK OR
TRAILER).

IMPORTANT

"Aggravating" hydraulic movement cut-off can only be disabled with the forward/reverse selector in neutral.
OPERATION
This switch temporarily disables the "aggravating" hydraulic movement cut-off.

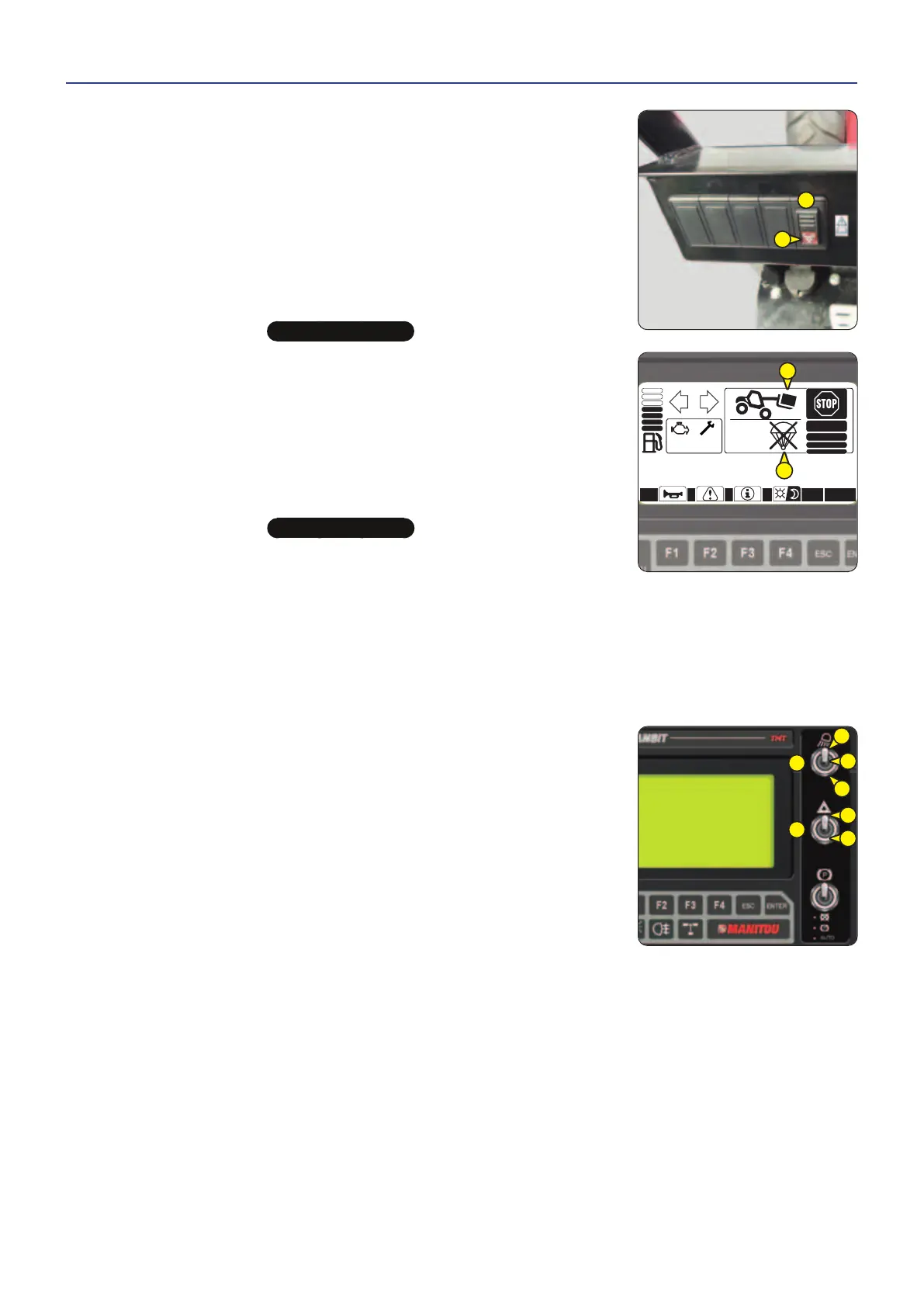

- Press down on the top of switch A for 3 seconds to temporarily disable hydraulic
control cut-off. The indicator lamp A1 comes on.
Warning A2 will also appear, indicating that hydraulic movement cut-off is disabled.
- Perform the de-aggravating hydraulic movement with extreme caution (boom
retraction).

IMPORTANT

Remain very vigilant during this operation.
In this case, the operator is only informed by the longitudinal stability warning device A3
( -SCREEN - "WARNINGS AND FAULTS" PAGE - B - LONGITUDINAL STABILITY DEVICE WARNING).
- Press down on the bottom of switch A for 1 second to reactivate hydraulic control cut-off. The indicator lamp A1 goes out.
The system is fitted with a time delay. You must wait for a few seconds before performing a hydraulic movement.
NOTE: (
PROCEDURE FOR ATTACHING THE MACHINE TO THE REAR OF A TRUCK OR TRAILER):
• To carry out this procedure, disable hydraulic movements cut-off.
• As soon as the procedure has finished, reactivate hydraulic movements cut-off.
B-
WHITE FRONT WORKLIGHT(S)
BLUE FRONT WORKLIGHT(S)
(STANDARD TMT 27 P ...)
(OPTION TMT 25 S ... / TMT 27 S ...)
• Position B1: White worklights
• Position B2: Worklights off
• Position B3: Blue worklights option (*)
(*)The reverse gear and overload audible warnings are disabled.
C-HAZARD WARNING LIGHTS
(ROAD LIGHTS OPTION)
• Position C1: Hazard warning lights off
• Position C2: Hazard warning lights on
