SET-UP AND INSTALLATION 18000 OPERATOR MANUAL
4-54
Published 12-05-17, Control # 032-23

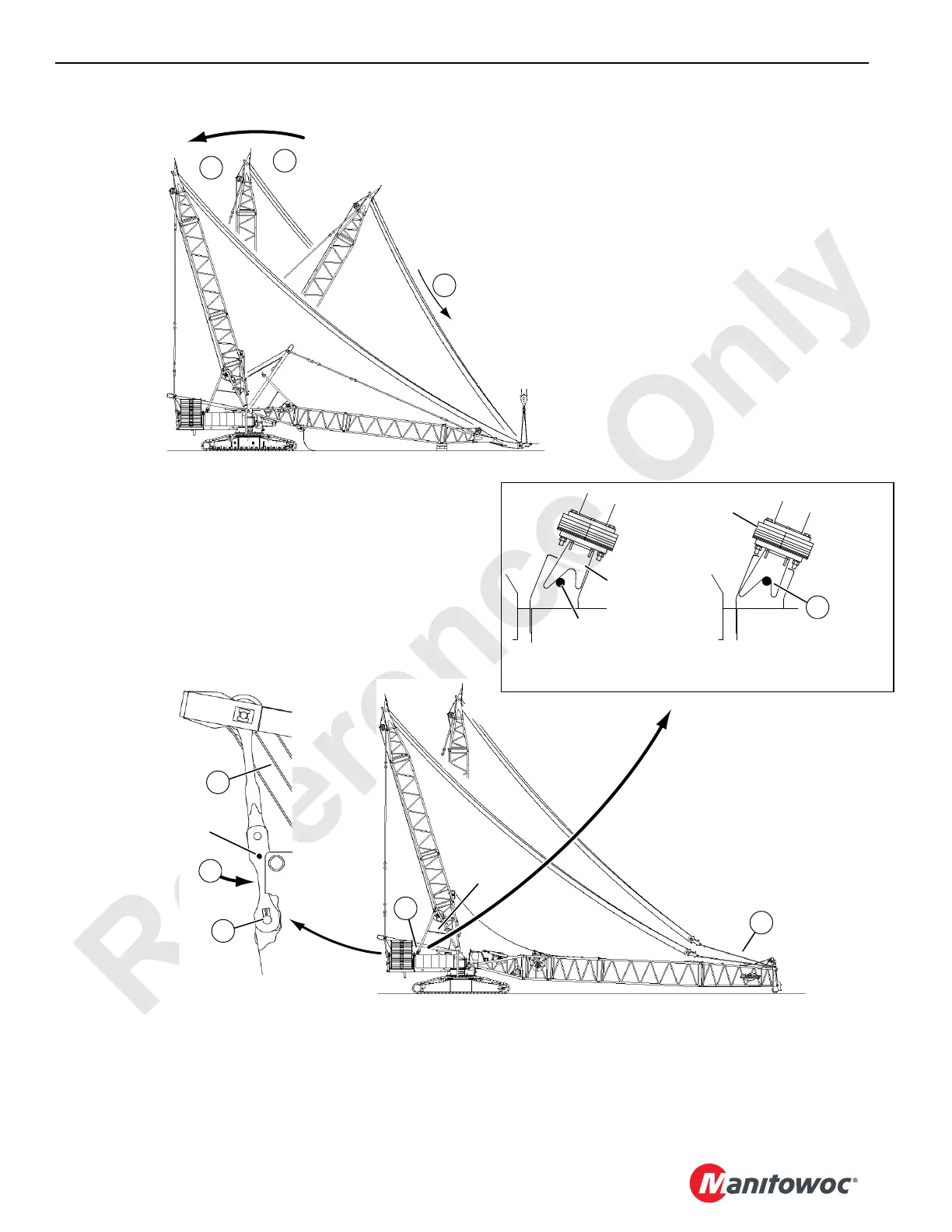

Mast Stop
Strut
17
16
View L
15
Note that Locking
Pins are Installed
in Live Mast Straps
Engagement with pin should
take place 1/3 to 1/2 of way
down rear side of saddle in
both mast stop guides.
Mast Stop
Guide
Shims
Mast stop guides should
bottom out against pins
within 1/8 in (3,2 mm) of
each other.
View J
19
4-151
View H
FIGURE 4-30 continued
12
13
14
View K
19
18
4-148
4-149
4-150
