SET-UP AND INSTALLATION 18000 OPERATOR MANUAL
4-104
Published 12-05-17, Control # 032-23

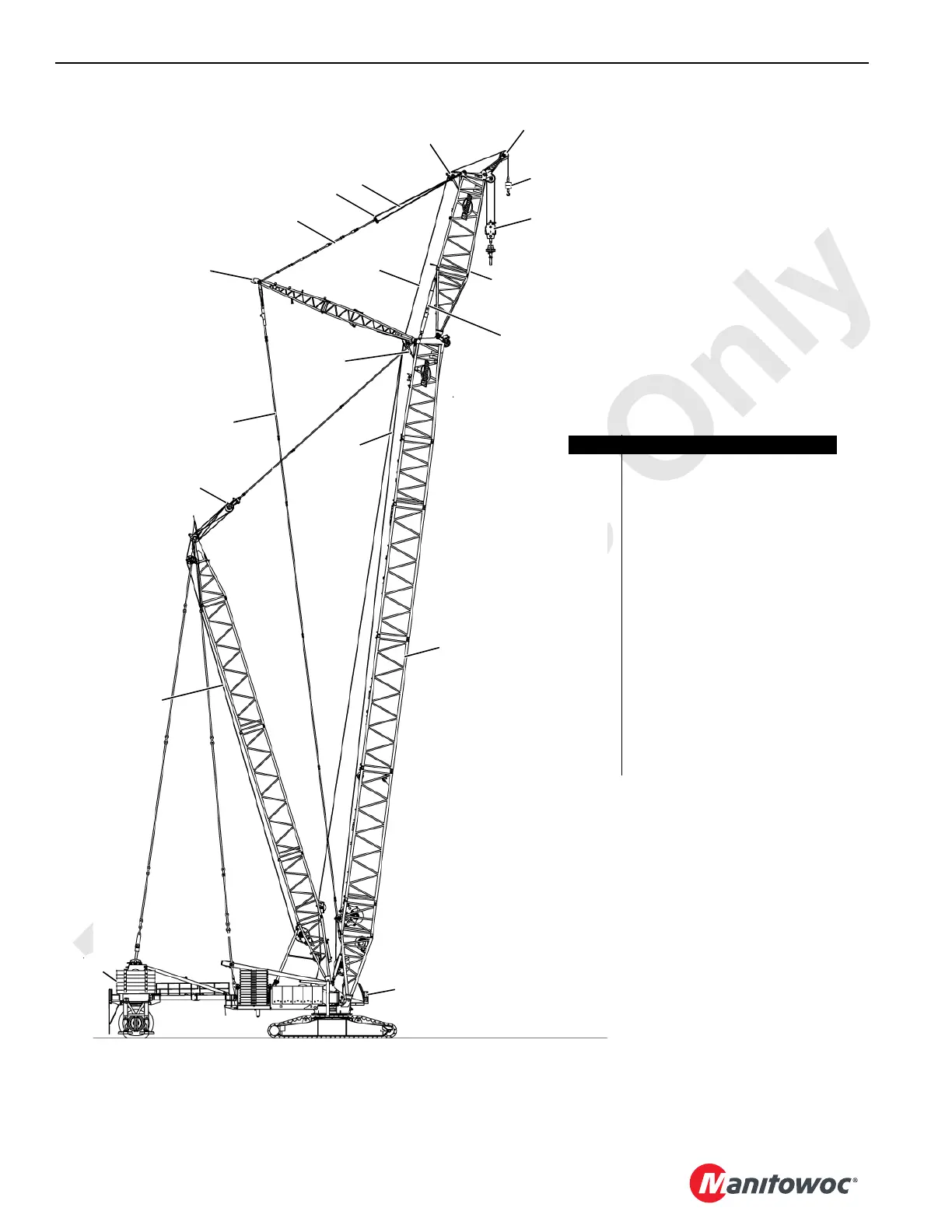

FIGURE 4-55
1
2
3
5
4
7
17
12
13
11
16
18
6
8
10
9
14
14
15
4-193
Item Description
1 Model 18000 Crane
2 MAX-ER Attachment (if equipped)
3Mast
4 Boom Hoist Equalizer
5 Backstay Straps
6Jib Strut
7 Jib Strut Straps and Links
8 Jib Strap Equalizer
9Jib Stop
10 Jib Top and Insert Straps
11 #79A Fixed Jib
12 Wire Rope Guide – Jib Top
13 Upper Jib Point
14 Load Lines
15 Wire Rope Guide – Boom Top
16 Hook and Weight Ball
17 Load Block
18 #55 or 55A Boom
