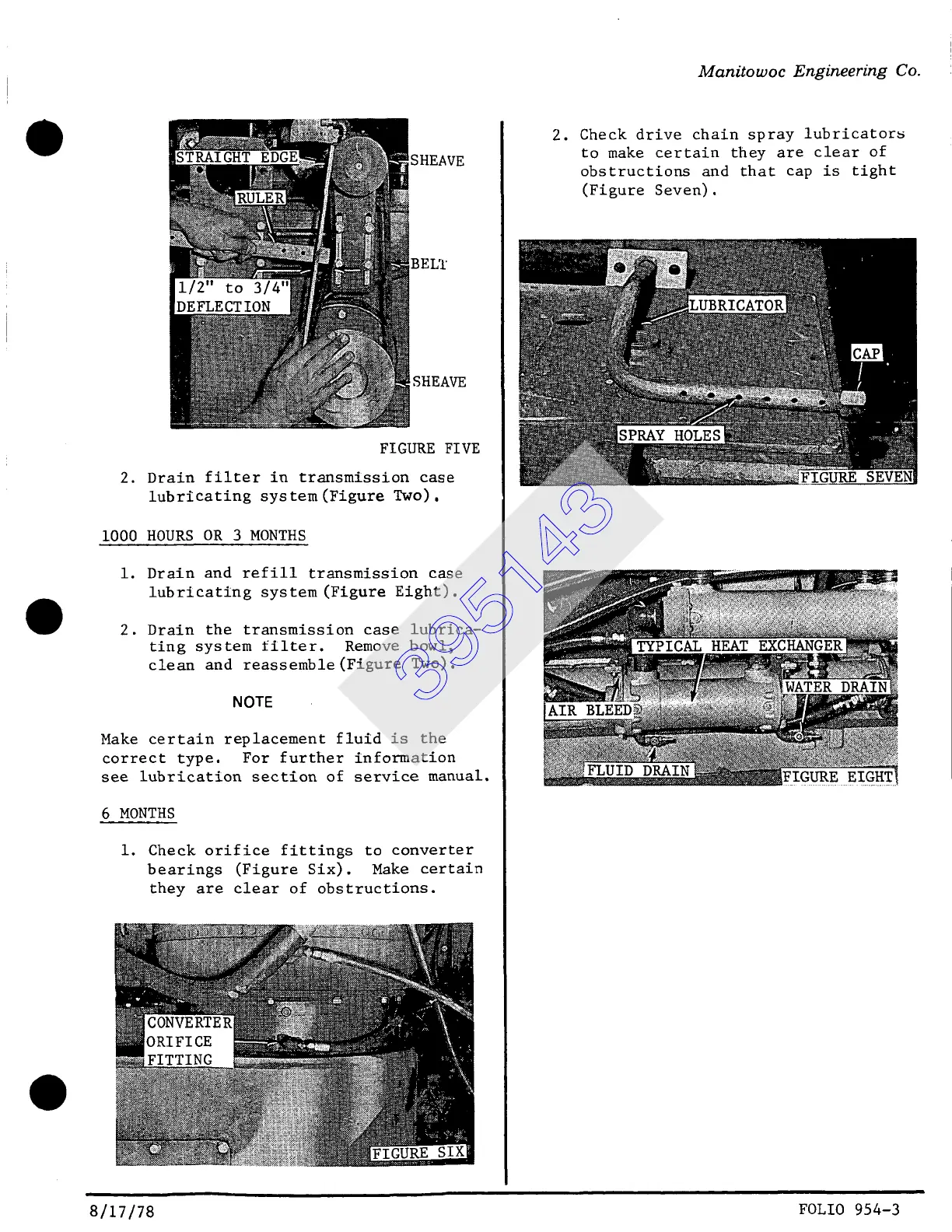

Manitowoc Engineering Co.
3HEAVE
BELT
SHEAVE
FIGURE FIVE
2. Drain filter in transmission case
lubricating system (Figure Two).
i000 HOURS OR 3 MONTHS
i. Drain and refill transmission case
lubricating system (Figure Eight).
2. Drain the transmission case lubrica-
ting system filter. Remove bowl,
clean and reassemble (Figure Two).
NOTE
Make certain replacement fluid is the
correct type. For further information
see lubrication section of service manual.
6 MONTHS
i. Check orifice fittings to converter
bearings (Figure Six). Make certain
they are clear of obstructions.
2. Check drive chain spray lubricators
to make certain they are clear of
obstructions and that cap is tight
(Figure Seven).
8/17/78 FOLIO 954-3
395143
