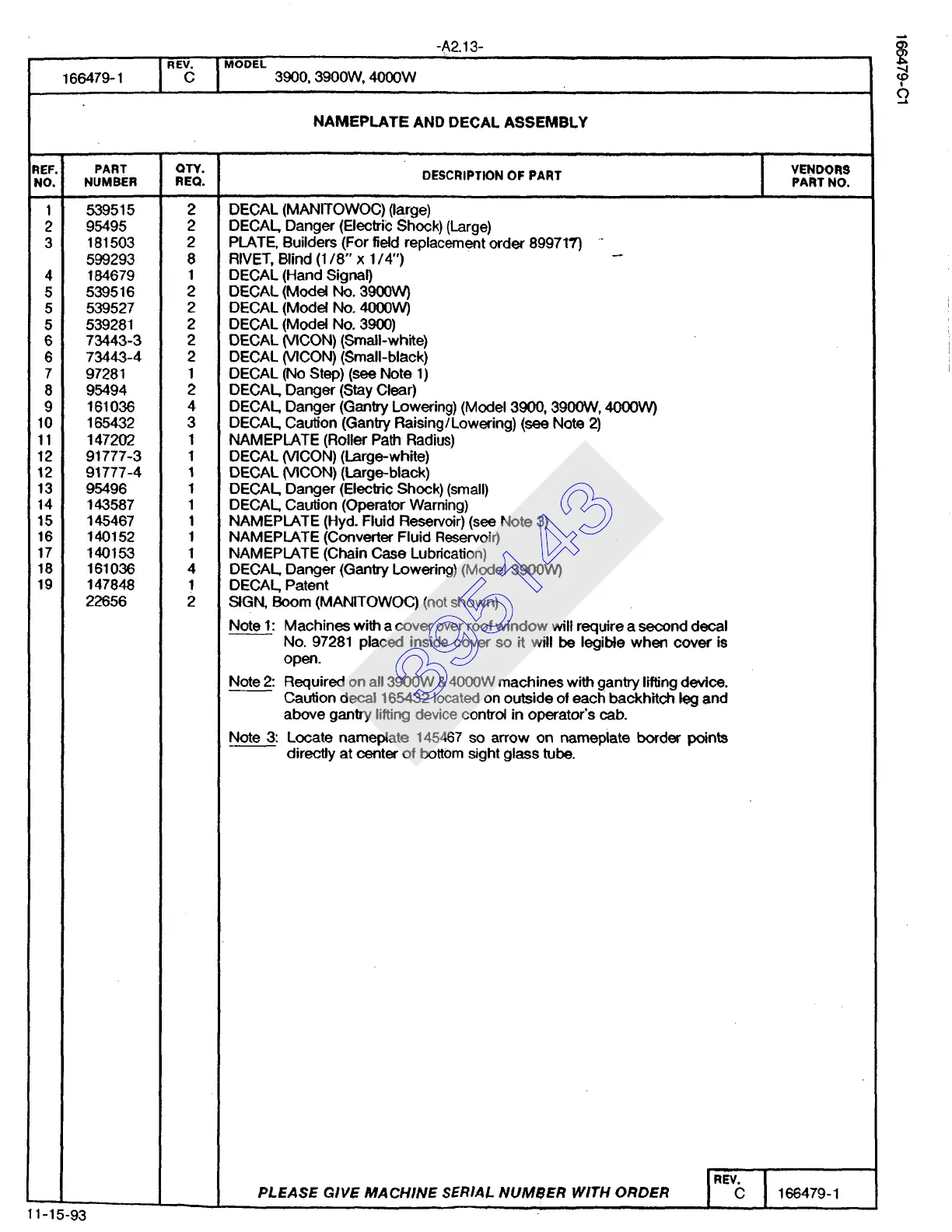

Manitowoc 3900W - Page 36

166479-1
REF. PART
NO. NUMBER
I
1 539515
2 95495
3 181503
599293
4 184679
5 539516
5 539527
5 539281
6 73443-3
6 73443-4
7 97281
8 95494
9 161036
10 165432
11 147202
12 91777-3
12 91777-4
13 95496
14 143587
15 145467
16 140152
17 140153
18 161036
19 147848
22656
11-15-93
OTY.
REQ.
2
2
2
8
1
2
2
2
2
2
I
2
4
3
I
1
I
I
1
1
I
1
4
I
2
i MODEL
-A2.13-
3900, 3900W, 4000W
NAMEPLATE AND DECAL ASSEMBLY
DESCRIPTION OF PART
I
DECAL (MANITOWOC) (large)
DECAL Danger (Electric Shock) (Large)
PLATE, Builders (For field replacement order 899713)
RIVET, Blind (1/8" x 1/4")
DECAL (Hand Signal)
DECAL (Model No. 3900W)
DECAL (Model No. 4000W)
DECAL (Model No. 3900)
DECAL (VICON) (Small-white)
DECAL (VlCON) (Small-black)
DECAL (No Step) (see Note 1)
DECAL Danger (Stay Clear)
DECAL Danger (Gantry Lowering) (Model 3900, 3900W, 4000W)
DECAL Caution (Gantry Raising/Lowering) (see Note 2)
NAMEPLATE (Roller Path Radius)
DECAL (VICON) (Large-white)
DECAL MCON) (Large-black)
DECAL Danger (Elecldc Shock) (small)
DECAL Caution (Operator Warning)
NAMEPLATE (Hyd. Fluid Reservoir) (see Note 3)
NAMEPLATE (Converter Fluid Reservoir)
NAMEPLATE (Chain Case Lubrication)
DECAL Danger (Gantry Lowering) (Model 3900W)
DECAL Patent
SIGN, Boom (MANITOWOC) (not shown)
Note 1: Machines with a cover over roof window will require a second decal
No. 97281 placed inside cover so it will be legible when cover is
open.
Note 2: Required on all 3900W & 4000W machines with gantry liffing device.
Caution decal 165432 located on outside of each backhitch leg and
above gantry lifting device conlrol in operator's cab.
Note 3: Locate nameplate 145467 so arrow on nameplate border points
directly at center of bottom sight glass tube.
PLEASE GIVE MACHINE SERIAL NUMBER WITH ORDER
