MANITOWOC CRANES, INC.
1 of 1
ASSEMBLY
175916
REVISION
E
NAMEPLATE & DECALS (BOOM DISASSEMBLY)
Group F
PLEASE GIVE MACHINE SERIAL NUMBER WITH ORDER
MODEL
All
NAMPLATE & DECAL ASSEMBLY
Boom Disassembly (see Note 1)
ITEM PART # QTY. DESCRIPTION OF PART
DANGER DECAL (ENGLISH)
1 147852 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)
DANGER DECAL (DUTCH)
2 386315 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)
DANGER DECAL (CHINESE)
3 386299 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)
DANGER DECAL (SPANISH)
4 386300 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)
DANGER DECAL (FRENCH)
5 386301 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)
DANGER DECAL (PORTUGESE)
6 386492 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)
DANGER DECAL (GERMAN)
7 A10090 2 DECAL, Danger (Boom Hazard) (see Notes 2 & 3)

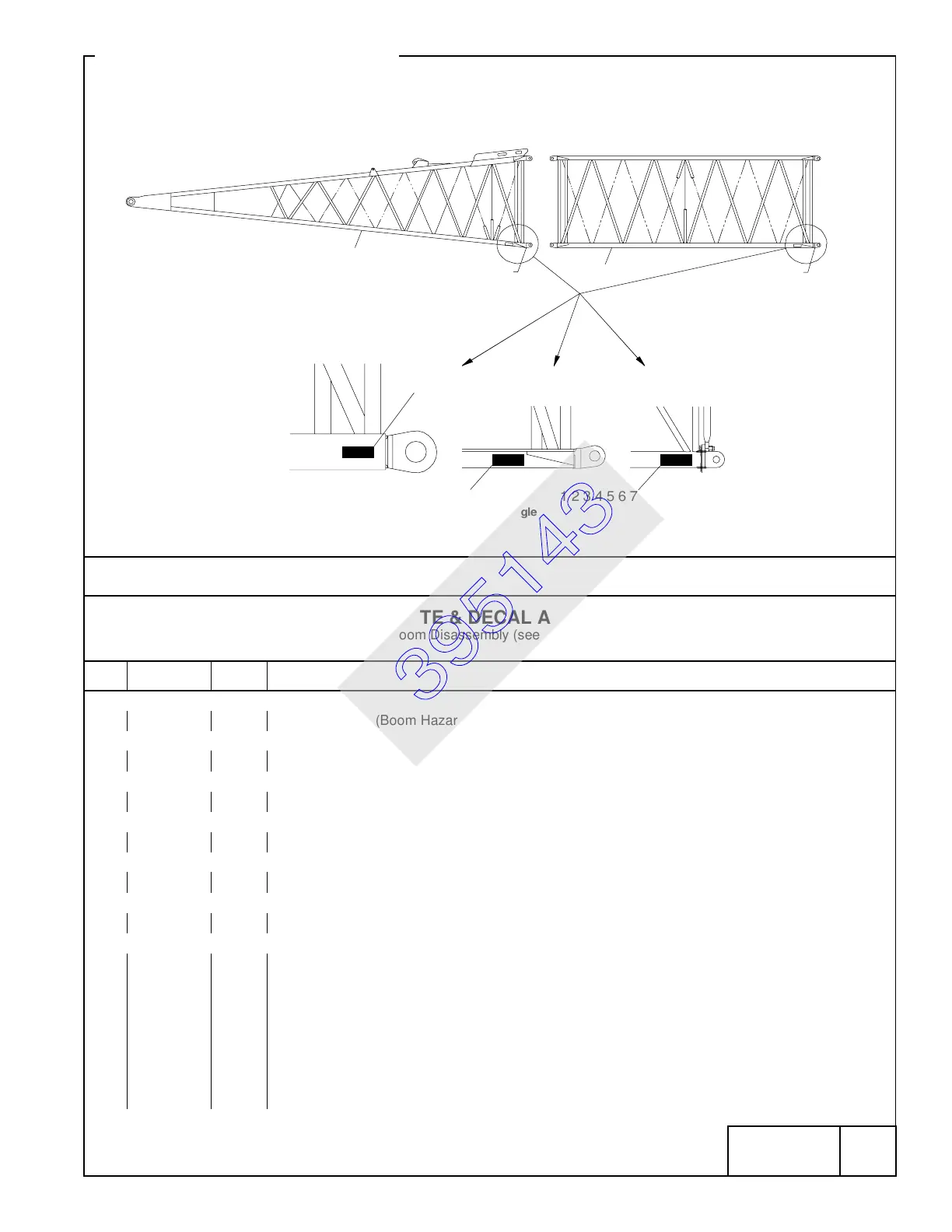

Note 1: Applies to all pin-connected booms, jibs, masts and towers.
Note 2: Two decals required on bottom chords (1 per side) of butt and each insert (at male connec-
tor end).
Note 3: Apply decal to clean smooth surface as close as possible to both bottom male connectors
as shown.
TubularAngleBox Section
1 2 3 4 5 6 7
Male
Connector
MALE
CONNECTOR
Bottom
Chord
Bottom
Chord
InsertButt
1 2 3 4 5 6 7 1 2 3 4 5 6 7
Eng Rev
02-11-04
395143
