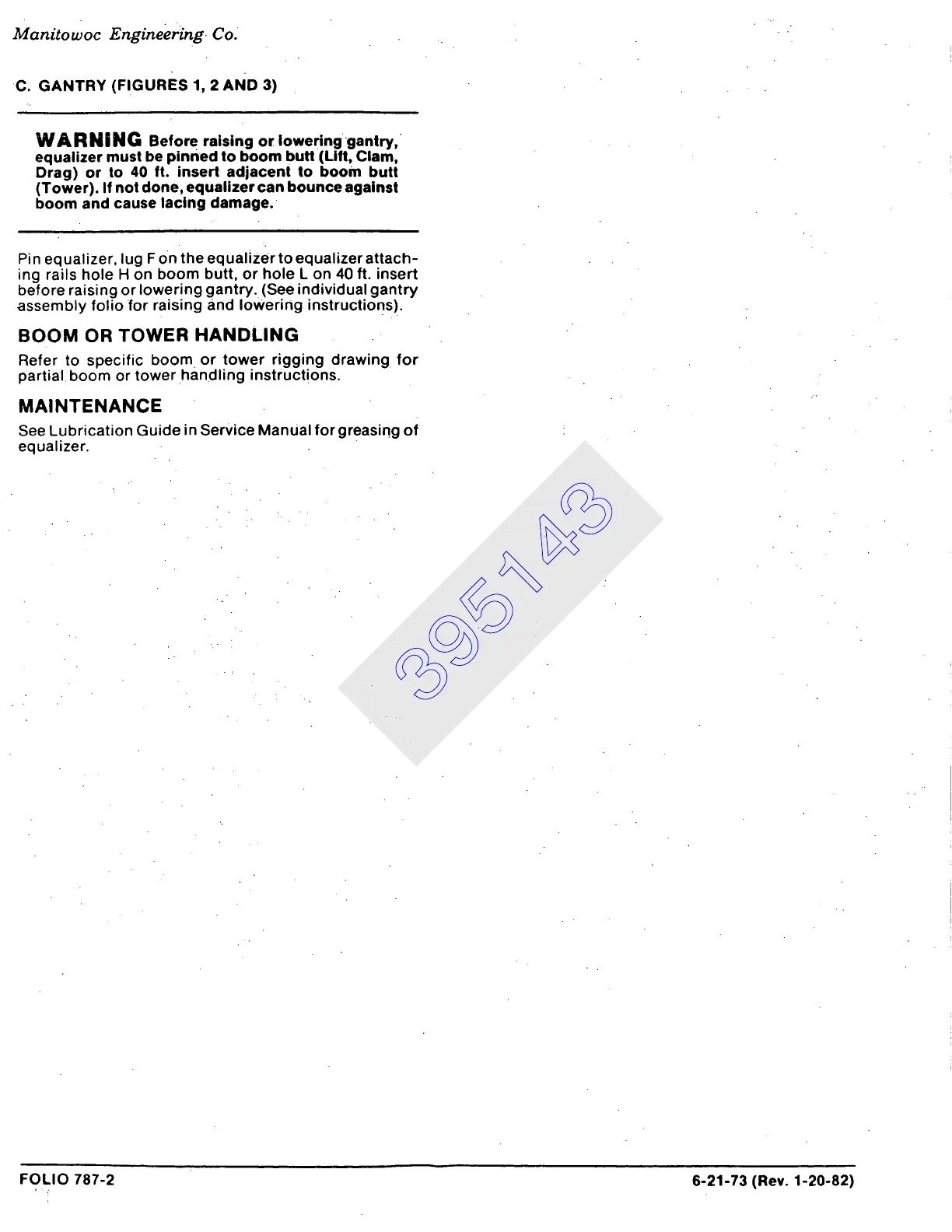

Manitowoc Engineering. Co. ~
C. GANTRY (FIGURES 1, 2 AND 3)
WARNING
Before raising or Ioweringganlry,
equalizer must be pinned to boom butt (Lift, Clam,
Drag) or to 40 ft. insert adjacent to boom butt
(Tower). If not done, equalizer can bounce against
boom and cause lacing damage.
Pin equalizer, lug F 0n the equalizer to equalizer attach-
ing rails hole H on boom butt, or hole L on 40 ft. insert
before raising or lowering gantry. (See individual gantry
assembly folio for raising and lowering instructions ) .
BOOM OR TOWER HANDLING
Refer to specific boom or tower rigging drawing for
partial boom or tower handling instructions.
MAINTENANCE
See Lubrication Guide in Service Manual for greasing of
equalizer.
FOLIO
787-2 6-21-73 (Rev. 1-20-82)
395143
