Swing-away lattice
3.4 Description of the rigging work
Lattice extension operating instructions 3 112 441 en 3 - 31
GMK 4100/4100-L/5095
11.01.2008

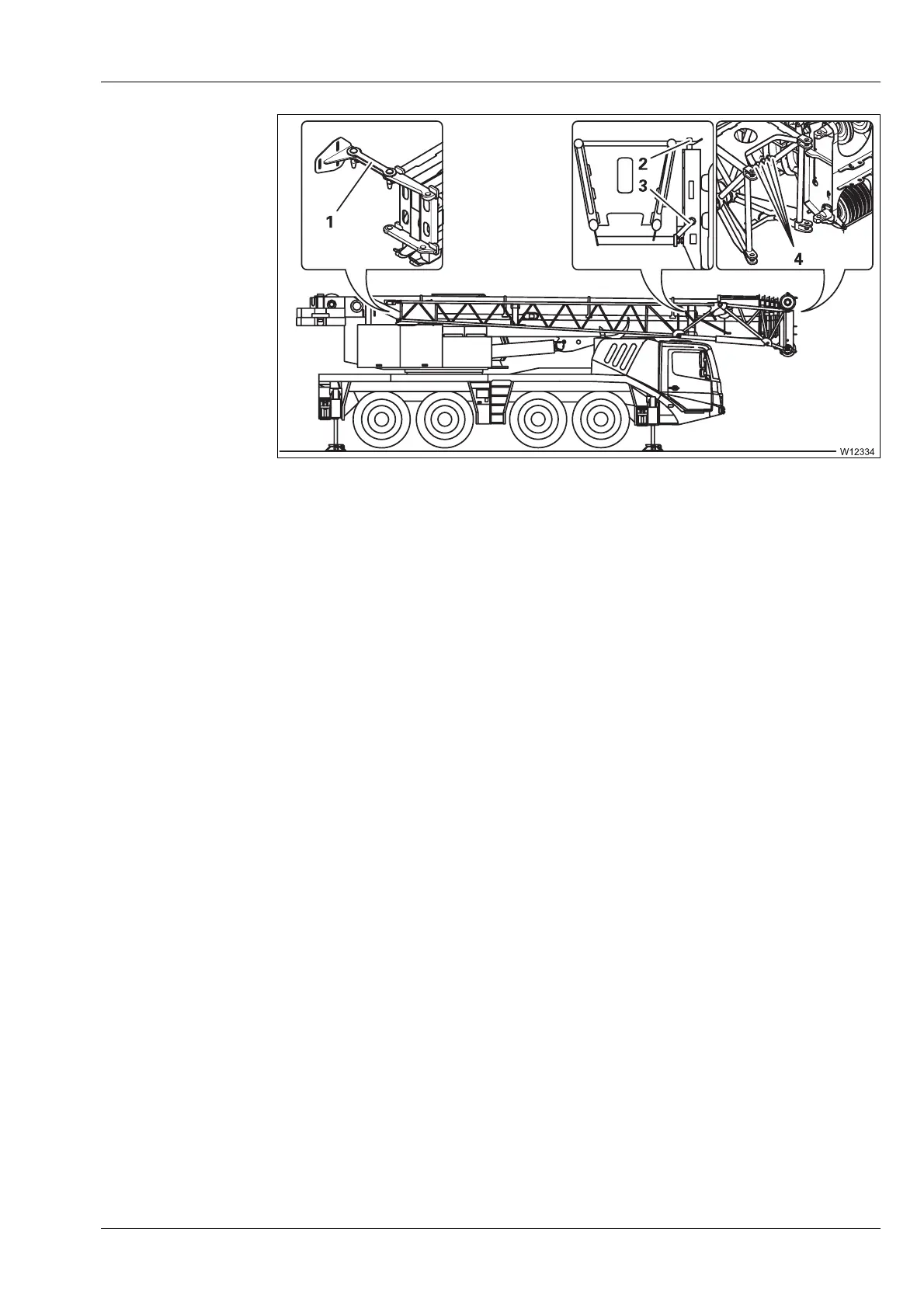

When only section 1 is folded:
–In the
rear area, the connection (1) between section 1 and the main
boom is established;
à p. 3 - 46.
–In the
Front area, section 1 must be engaged at the slewing axis (2) on
the main boom and the slewing axis must be secured with the pin (3);
à Establishing the connection, p. 3 - 38.
– The pins (4) on section 1 are secured with retaining pins.
