Manitowoc GROVE GMK 4100 User Manual

Auxiliary single-sheave boom top
5.1 Installation / removal
Lattice extension operating instructions 3 112 441 en 5 - 1
GMK 4100/4100-L/5095
11.01.2008
5 Auxiliary single-sheave boom top
5.1 Installation / removal
5.1.1 Installing / removing the auxiliary single-sheave boom top
Installing
• Sling the auxiliary single-sheave boom top;
à p. 2 - 10.

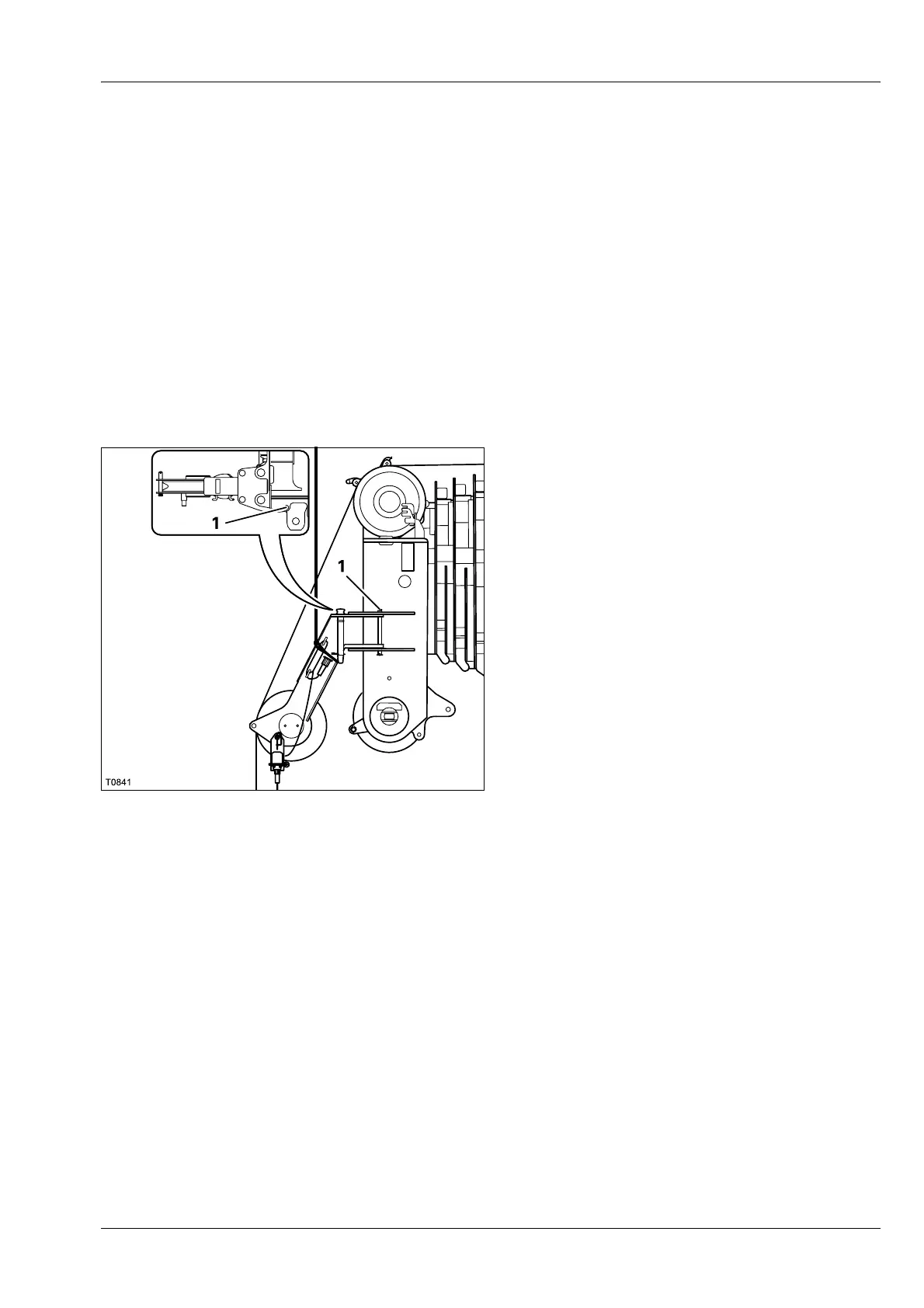

• Pull out the pin (1).
• Raise the auxiliary single-sheave boom top
onto the holder.
• Align the auxiliary single-sheave boom top
so that the bearing points are in line with the
front bores in the holder.
• Insert the pin (1) and secure it with a linch-
pin.
• Bring the auxiliary single-sheave boom top
into transport position or working position;
à Rigging the auxiliary single-sheave boom
top
, p. 5 - 3.
