For operations planning
2.2 Swing-away lattice
2 - 6 3 112 441 en Lattice extension operating instructions
GMK 4100/4100-L/5095
11.01.2008
2.2.5 Transport
Observe the notes on Transport and Slinging points; à p. 2 - 2.
• Check whether all the required connections
for transport condition are established;
à Transport condition with removed swing-
away lattice
, p. 3 - 29.

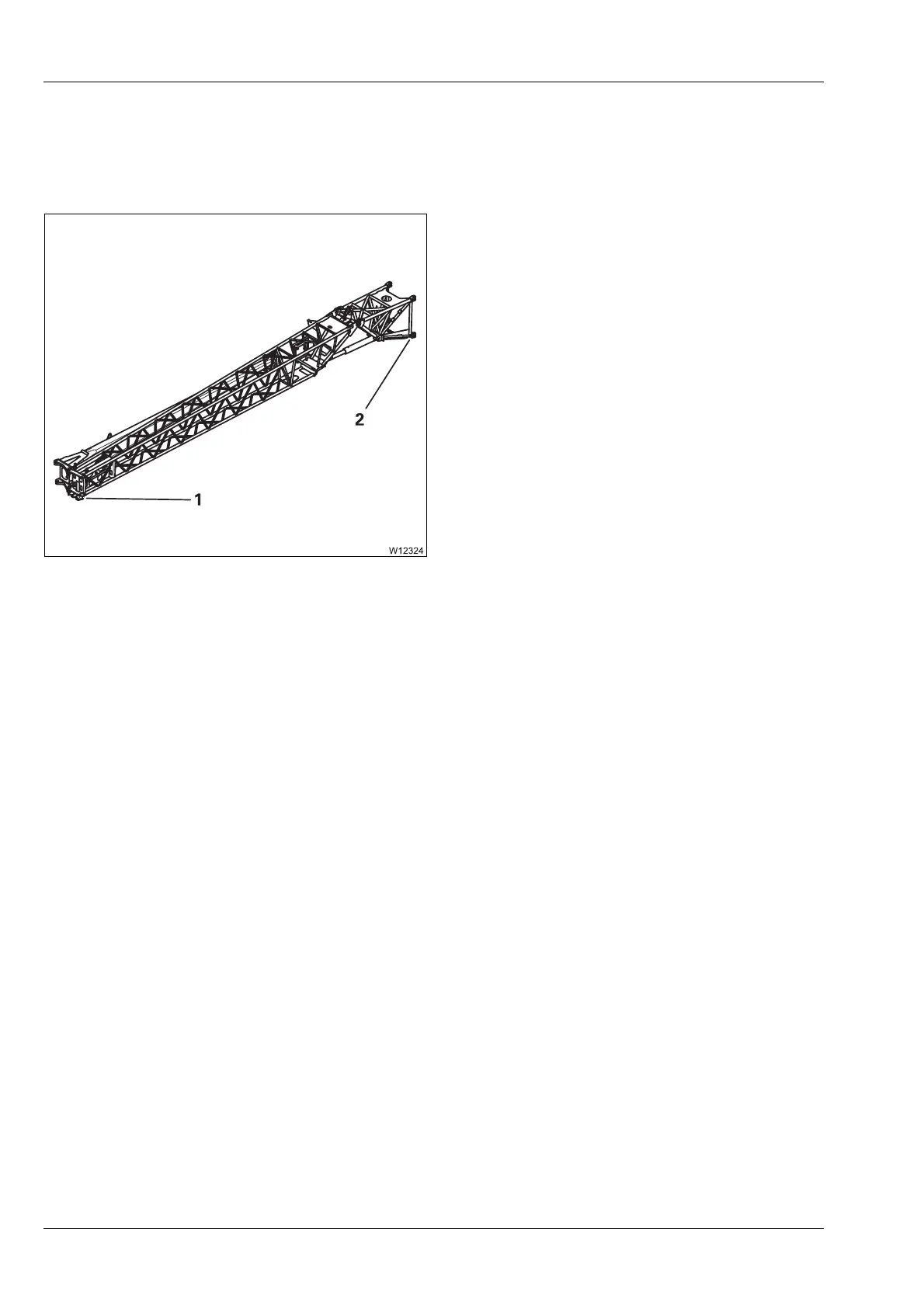

• For transportation, place the lattice exten-
sion on the skid (1) at the front and onto the
lower connecting points (2) at the rear.
• Always secure the lattice extension on the
transport vehicle with belts to prevent slip-
ping and overturning.
